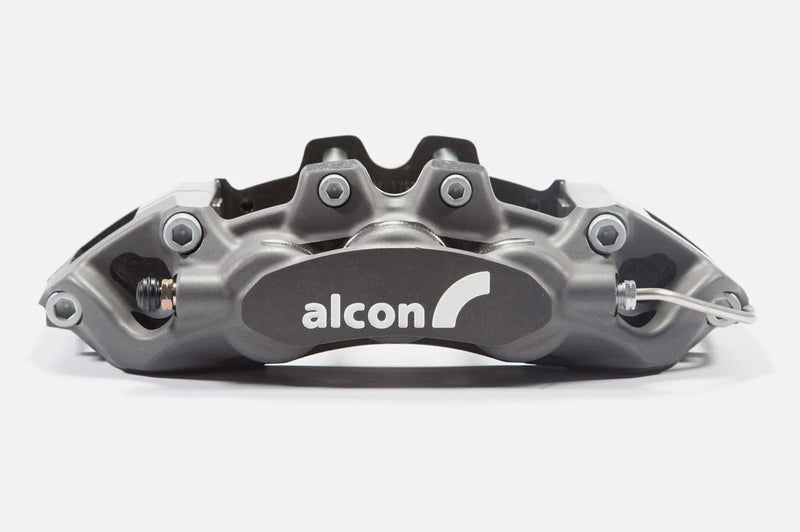

Alcon CR6420 "Motorsport" 6-Piston Front Brake Calipers (Pair)
Street or track? We can help you pick the best Alcon kit for your car. Just Contact Us — we're happy to help.
Request a Price Match
Found it cheaper elsewhere? Send us the details and we'll do our best to match it.
Request received
Thanks! Our team will review it and be in touch shortly.
Alcon CR6420 "Motorsport" 6-Piston Front Brake Calipers (Pair) - 27.0/31.8/38.1mm Pistons - Universal
The Alcon CR6420 is a billet endurance caliper for GT and touring car racing. It is a 6-piston radial-mount design machined from billet aerospace-grade aluminium, with staggered 27.0 / 31.8 / 38.1mm stainless steel pistons and a thick 25mm pad for long stints. 2kg anti-knockback springs, hard stainless wear plates and a bolted pad retainer keep it stiff and consistent.
It is also offered as a caliper option in our Alcon big brake kits.
Note: Sold as a pair. Needs brackets and rotors to suit your car. Suits 355–390mm rotors, 34–36mm thick. Installation by a professional is recommended.
Features
- Billet aerospace-grade aluminium body, 6-piston radial mount
- Staggered stainless steel pistons: 27.0 / 31.8 / 38.1mm
- 2kg anti-knockback springs
- Hard stainless steel wear plates
- Bolted pad retainer (remove it to change pads)
- Alcon 4489 pad shape, 25mm thick, in 50.8mm or 54.0mm depth
- 3/8-24 UNF (-3) female fluid inlet
Need help choosing the right setup? Contact our team at sales@chicaneaustralia.com.au.
Contents
- 2 x Alcon CR6420 6-piston calipers
No instructions available for this product.

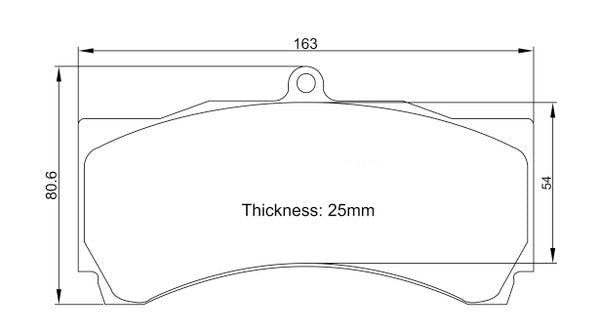

Pad Shape
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
| Overview |
 CAR97 "MONO6" Full Specs |
 CAR70 "RC6" Full Specs |
 CAR99 Full Specs |
 CAR89 "TA6+" Full Specs |
 CAR89 Motorsport Full Specs |
 CAR89 "Billet" Full Specs |
CR6420 Full Specs |
|---|---|---|---|---|---|---|---|
| Category | Performance Street | Performance Street | Premium Street | Street / Track | Dedicated Track | GT / Touring Car | GT / Touring Car |
| Construction | Monobloc Cast | 2-Piece Forged | Monobloc Billet | Forged Aero | Billet Aero | Monobloc (1-Piece) | Billet Aero |
| Piston Sizing | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.0 / 31.8 / 38.1mm |
| Overview |
 CAR69 "RC4" Full Specs |
 CAR23 Full Specs |
 CRB343 Full Specs |
 CRB332 Full Specs |
|---|---|---|---|---|
| Category | Performance Street | Dedicated Track | Dedicated Track | Dedicated Track |
| Construction | 2-Piece Forged | Billet Monobloc | Radial Mount | Radial Mount |
| Piston Sizing | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm |
| Overview |
 CAR98 "MONO4" Full Specs |
CAR69 "RC4" Full Specs |
 CAR49 "TA4+" Full Specs |
|---|---|---|---|
| Category | Performance Street | Performance Street | Street / Track |
| Construction | Monobloc Cast | 2-Piece Forged | Forged Aero |
| Piston Sizing | 31.8 / 31.8mm | 31.8 / 31.8mm | 31.8 / 31.8mm |
| Overview |
 CRR300 Full Specs |
 CRR280 Full Specs |
|---|---|---|
| Category | Dedicated Track | Dedicated Track |
| Construction | Radial Monobloc | Radial Mount |
| Piston Sizing | 28.6 or 34.9mm | 2-Piston |
