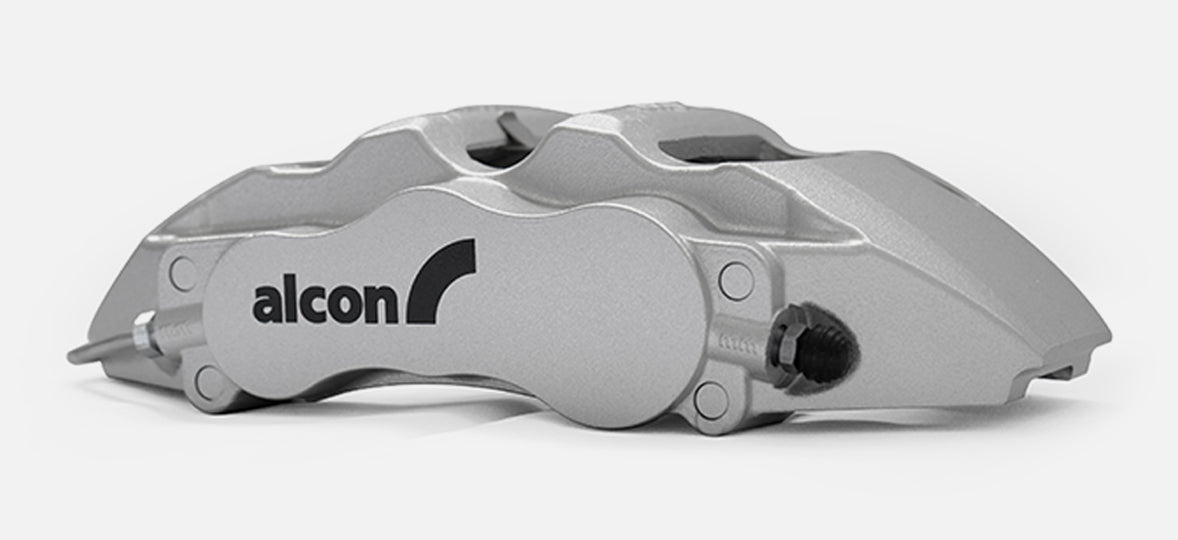

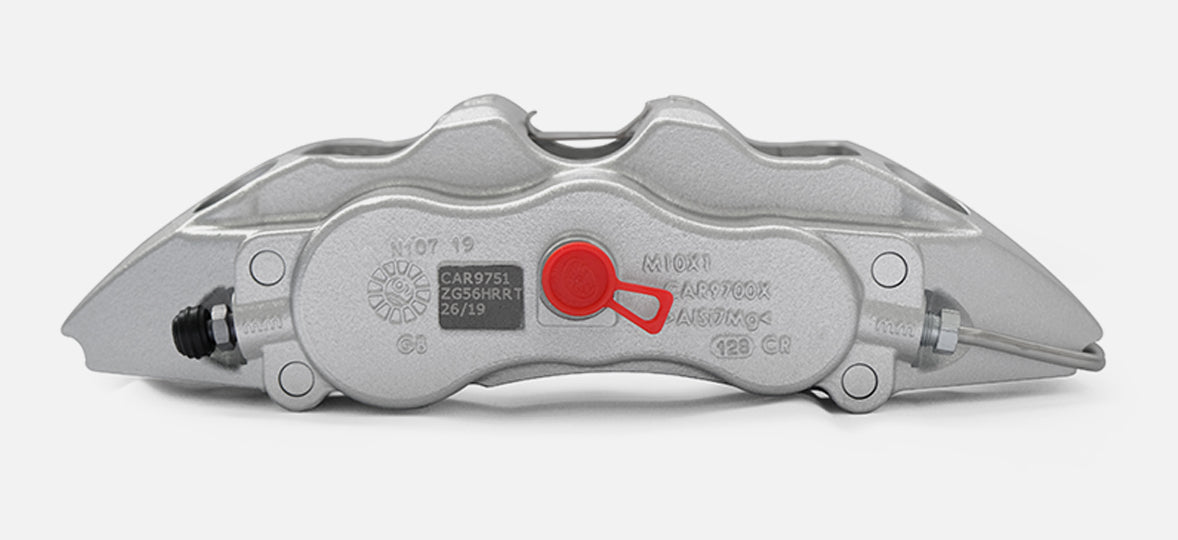

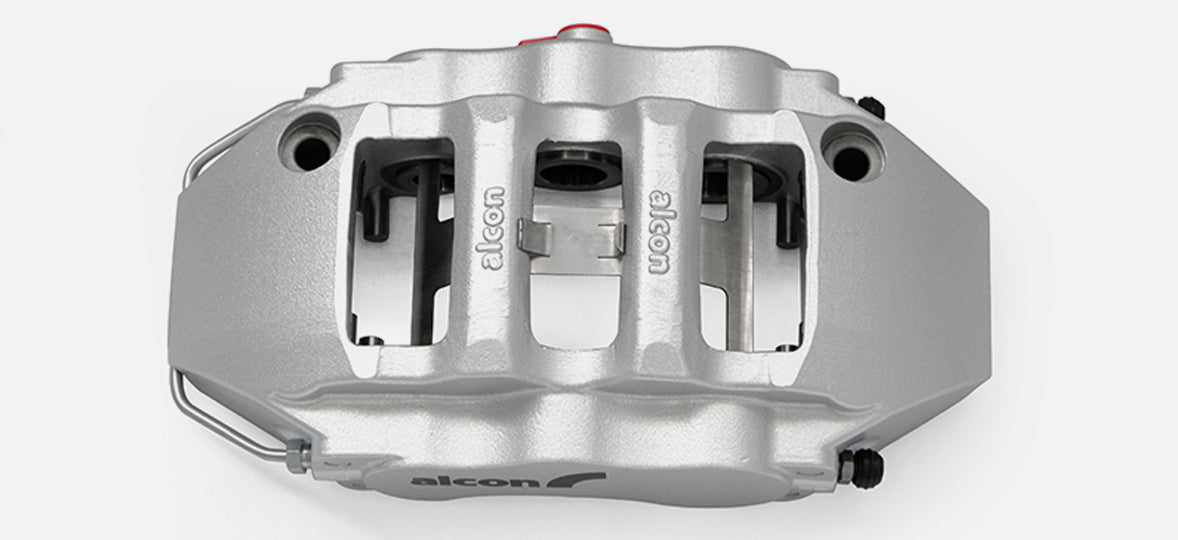

Alcon CAR97 "Mono6" 6-Piston Front Brake Calipers (Pair)
Street or track? We can help you pick the best Alcon kit for your car. Just Contact Us — we're happy to help.
Request a Price Match
Found it cheaper elsewhere? Send us the details and we'll do our best to match it.
Request received
Thanks! Our team will review it and be in touch shortly.
Alcon CAR97 "Mono6" 6-Piston Front Brake Calipers (Pair) - 30.2/34.9/38.1mm Pistons - Universal

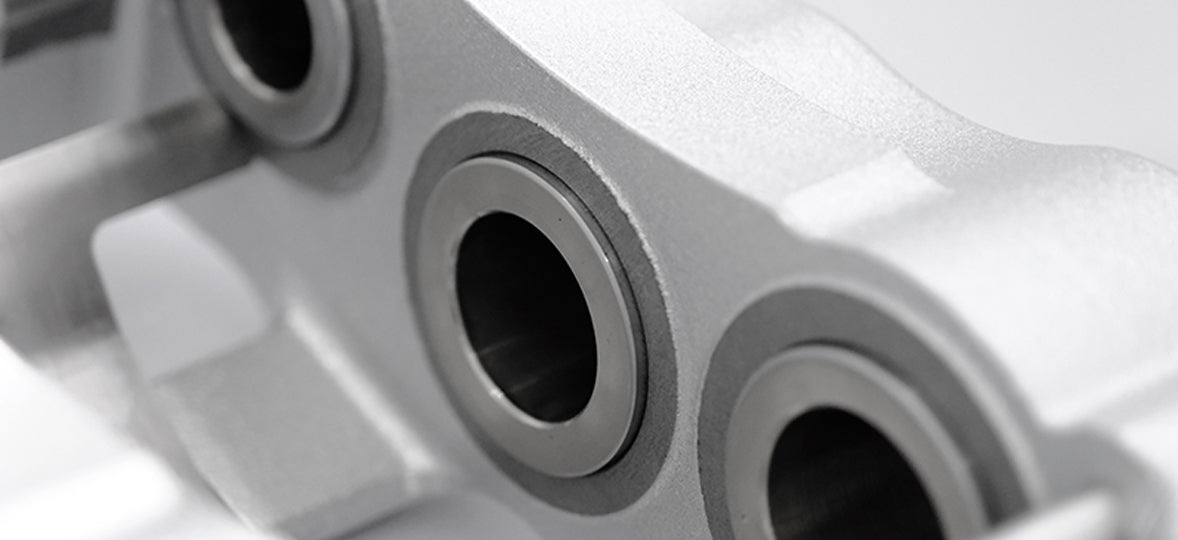

The Alcon CAR97 "Mono6" is a monobloc 6-piston front caliper from Alcon's Advantage Extreme range, gravity die cast in aluminium alloy. Staggered 30.2 / 34.9 / 38.1mm piston bores give even pad wear, and pin-mounted pads keep threshold pressure and noise low. It has dust seals, so it suits road cars and track days and can be engineered for road use.
Choose red, black or silver. It is also offered as a caliper option in our Alcon big brake kits.
Note: Sold as a pair. Needs brackets and rotors to suit your car. Installation by a professional is recommended.
Features
- Monobloc 6-piston body, gravity die cast aluminium alloy
- Staggered pistons: 30.2 / 34.9 / 38.1mm

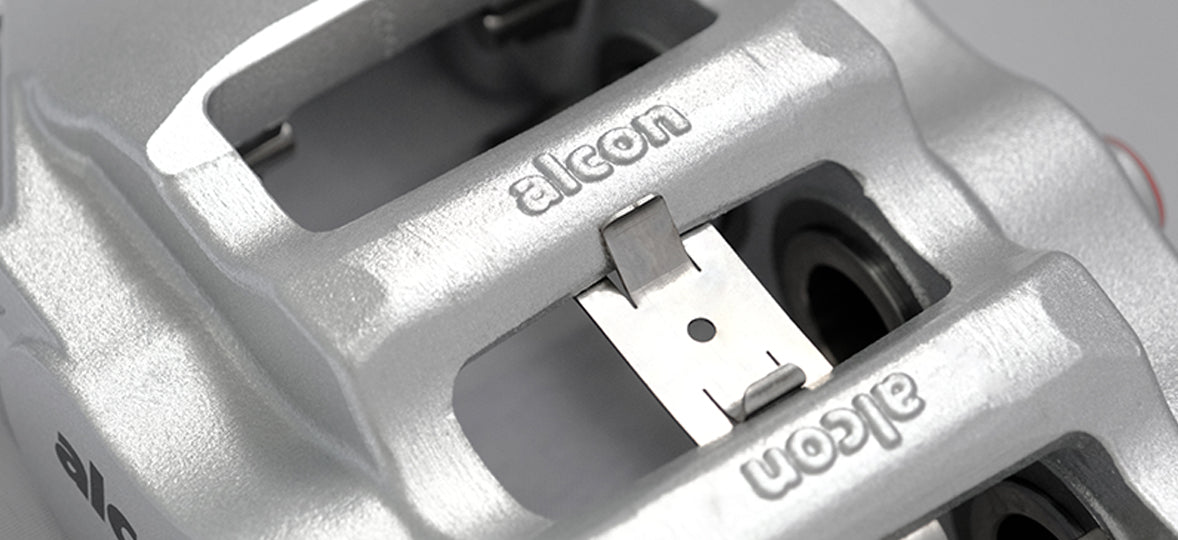

- Pin-mounted pads for low threshold pressure and low noise
- Dust seals for road use
- Alcon 4497 pad shape
Need help choosing the right setup? Contact our team at sales@chicaneaustralia.com.au.
Pairs Well With
Contents
- 2 x Alcon CAR97 "Mono6" 6-piston calipers
No instructions available for this product.
Pad Shape
Alcon Caliper Comparison Guide
Dive into the technical specifications. Compare piston sizing, rotor compatibility, and architectural data across Alcon's purpose-built street, dual-use, and dedicated motorsport calipers.
| Overview |
 CAR97 "MONO6" Full Specs |
 CAR70 "RC6" Full Specs |
 CAR99 Full Specs |
 CAR89 "TA6+" Full Specs |
 CAR89 Motorsport Full Specs |
 CAR89 "Billet" Full Specs |
CR6420 Full Specs |
|---|---|---|---|---|---|---|---|
| Category | Performance Street | Performance Street | Premium Street | Street / Track | Dedicated Track | GT / Touring Car | GT / Touring Car |
| Construction | Monobloc Cast | 2-Piece Forged | Monobloc Billet | Forged Aero | Billet Aero | Monobloc (1-Piece) | Billet Aero |
| Piston Sizing | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.1 / 31.8 / 38.1mm | 30.2 / 34.9 / 38.1mm | 27.1 / 31.8 / 38.1mm | 27.0 / 31.8 / 38.1mm |
| Overview |
 CAR69 "RC4" Full Specs |
 CAR23 Full Specs |
 CRB343 Full Specs |
 CRB332 Full Specs |
|---|---|---|---|---|
| Category | Performance Street | Dedicated Track | Dedicated Track | Dedicated Track |
| Construction | 2-Piece Forged | Billet Monobloc | Radial Mount | Radial Mount |
| Piston Sizing | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm | 38.1 / 41.3mm |
| Overview |
 CAR98 "MONO4" Full Specs |
CAR69 "RC4" Full Specs |
 CAR49 "TA4+" Full Specs |
|---|---|---|---|
| Category | Performance Street | Performance Street | Street / Track |
| Construction | Monobloc Cast | 2-Piece Forged | Forged Aero |
| Piston Sizing | 31.8 / 31.8mm | 31.8 / 31.8mm | 31.8 / 31.8mm |
| Overview |
 CRR300 Full Specs |
 CRR280 Full Specs |
|---|---|---|
| Category | Dedicated Track | Dedicated Track |
| Construction | Radial Monobloc | Radial Mount |
| Piston Sizing | 28.6 or 34.9mm | 2-Piston |
