• RV6 Performance for Honda Civic Type R (FK8/FL5)
• Every part for your car: Honda Civic Type R (FK8) and Honda Civic Type R (FL5)
• Browse all brands at Chicane Australia

• Turbochargers: R660 RED and R660AS Antisurge/T51R. More: Turbochargers.
• Downpipes: catted and catless, with ceramic coating options. More: Downpipes.
• Rear arms and end links: camber adjustable A arms, toe adjustable B arm and billet end links. More: Camber Arms.
• Sway bars: adjustable chromoly rear bar with billet end links. More: Sway Bars.
• Bushings and mounts: front, rear knuckle and rear trailing arm spherical bushings and the FL5 solid front compliance mount. More: Bushings.

RV6 parts are chassis-specific, so confirm your Type R chassis code before ordering. Key identifiers across this collection:

• FK8 (2017+): catted and catless downpipes, rear lower A control arms (camber adjustable), rear lower B arm (toe adjustment), billet rear endlinks, rear knuckle spherical bushings, adjustable chromoly rear sway bar with billet endlinks, and the wastegate actuator arm for the 2.0T engine.
• FL5 (2022+): front spherical bushings, rear trailing arm spherical bushings and the solid front compliance mount are listed specifically for this chassis.

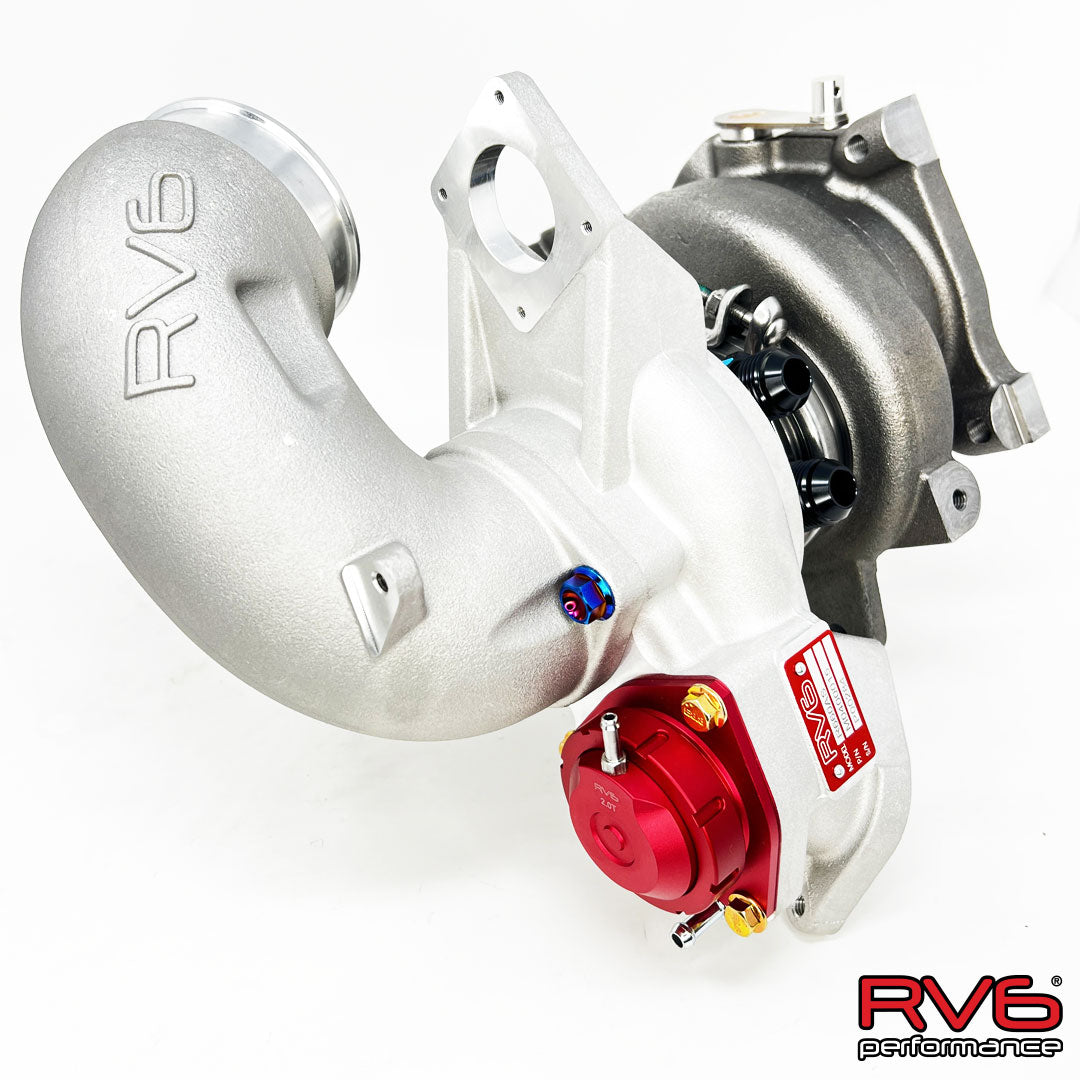

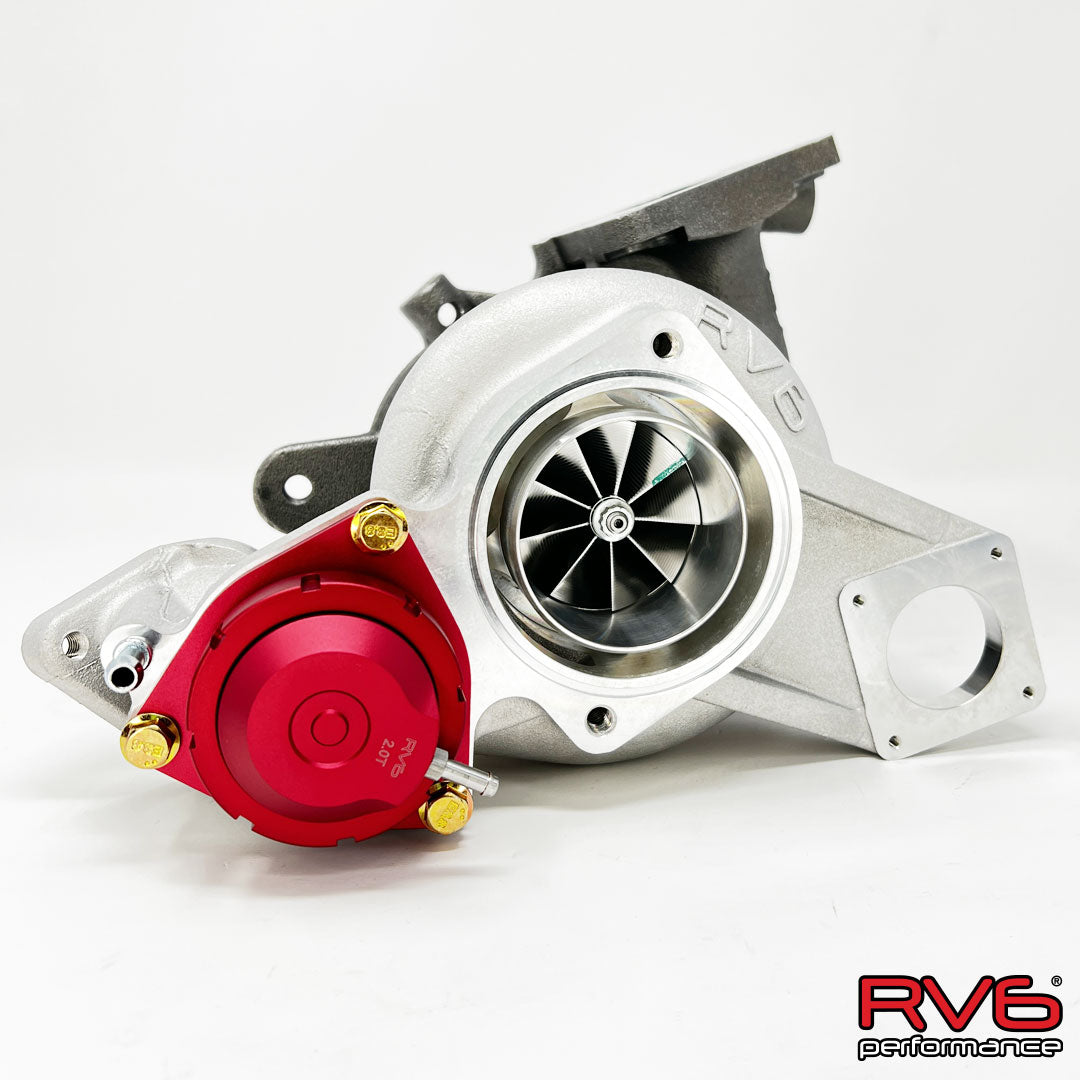

• Turbochargers: the R660 RED ball bearing turbo with bypass valve and the R660AS Antisurge/T51R RED ball bearing turbo are listed for the Civic Type R (FK8/FL5) 2.0T. Both use a TD05 bearing housing in place of the factory TD04 frame, with an 8mm ceramic ball bearing, a MAR-M Super Alloy turbine wheel and a billet point-milled compressor wheel.
• Exhaust options: downpipes and front pipes are offered in 304 stainless steel, with catted versions using GESi metal cores, and are available with Silver or Black ceramic coating.
• Suspension: spherical bushings and chromoly adjustable arms are intended for lowered and track-focused builds where deflection needs to be removed from the chassis.

If you are unsure which chassis code or variant applies to your car, send us your build number and model year and we can point you to the correct listing.

Installation by a qualified professional workshop is strongly recommended for all RV6 hardware. Turbocharger and downpipe fitment typically requires the vehicle to be raised safely, removal of factory heat shielding and exhaust hardware, and fresh gaskets and fasteners as specified by your installer. Spherical bushings, compliance mounts and trailing arm bushings usually require a press and correct suspension alignment afterwards, so budget for a wheel alignment once camber and toe arms are fitted.

Ceramic-coated pipework should be handled carefully to protect the coating during fitment. ECU calibration and any supporting hardware requirements should be discussed with your tuner or workshop before ordering,.

Downpipes: For off-road or motorsport use. Check your state's noise and emissions rules before fitting to a registered car.

Where can I buy RV6 Performance parts in Australia?
Chicane Australia carries RV6 Performance turbos, downpipes and suspension parts for the Honda Civic Type R and ships Australia-wide from the NSW Central Coast. Shop by vehicle above, search by RV6 part number, or send our team your build number and model year so we can point you to the right listing.

Why does RV6 use a TD05 frame for the R660 turbo?
The factory turbo uses a smaller TD04 frame. Moving to a TD05 bearing housing creates room for an oversized 8mm ceramic ball bearing and larger coolant passages, supporting higher power levels while protecting turbo life.

What is the benefit of the ceramic coating option?
RV6 offers Silver and Black ceramic coatings for downpipes and front pipes. The coating acts as a thermal barrier, keeping heat inside the exhaust to increase exhaust velocity while reducing ambient engine bay temperature.

Which RV6 parts suit the FL5 Type R?
The front spherical bushings, rear trailing arm spherical bushings and solid front compliance mount are listed for the FL5 (2022+), while downpipes, turbochargers, control arms, endlinks and the rear sway bar are listed for both FK8 and FL5.

How long do RV6 parts take to arrive?
Most RV6 listings show a lead time of about 4 weeks, and the adjustable chromoly rear sway bar shows 7 to 14 days. The lead time is shown on each listing, and our team can confirm it for a specific part.
