Supertech Dual Valve Spring Kit 70 lb - Subaru EJ25 Non-Turbo - Forester / Impreza / Liberty / Outback
Supertech dual valve spring kit for the non-turbo EJ25 engines (DOHC EJ25D and SOHC EJ251 / EJ252 / EJ253) in the Subaru Forester, Impreza RS, Liberty and Outback 2.5. It is a matched set of 16 springs, retainers and spring seat locators, rated at 70 lb @ 35.5mm on the seat and 209 lb @ 11.5mm open, for camshafts up to 13.80mm of valve lift. The dual (inner and outer) spring gives more seat and open pressure than the factory spring, to stop valve float with bigger cams and more boost.
Note: For the non-turbo EJ25 only. For the EJ20 / EJ25 turbo, see the turbo kits. Check spring installed height and coil bind against your camshaft before fitting. Installation by a professional engine builder is recommended.
Features
- Seat pressure 70 lb @ 35.5mm
- Open pressure 209 lb @ 11.5mm
- Max valve lift 13.80mm
- Coil bind 20.70mm
- Spring rate 12.1 lb/mm
- 16 springs, 16 retainers and 16 seat locators: a full 16-valve set
Pairs Well With
- Supertech Valve Locks 6mm 6 Degree - Subaru EJ20 Turbo / EJ25 - WRX / WRX STI / Forester / Liberty
- Supertech Polyacrylic Intake Valve Stem Seals - Subaru EJ20 Turbo / EJ25 - WRX / WRX STI / Forester / Liberty
- Supertech Viton Exhaust Valve Stem Seals - Subaru EJ20 Turbo / EJ25 - WRX / WRX STI / Forester / Liberty
- GSC Power-Division Manganese Bronze Intake/Exhaust Valve Guide - Subaru EJ20/EJ25 SOHC
Shop more: Supertech
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Supertech
- Part number(s)
- SPRK-TS1015-SU5
Details
- Spring type
- Dual
- Seat pressure
- 70 lb @ 35.5mm
- Open pressure
- 209 lb @ 11.5mm
- Max lift
- 13.80mm
- Coil bind
- 20.70mm
- Spring rate
- 12.1 lb/mm
- Inner spring ID
- 15.20mm
- Inner spring OD
- 20.00mm
- Outer spring ID
- 20.00mm
- Outer spring OD
- 27.50mm
- Engine
- EJ25 Non-Turbo
Contents

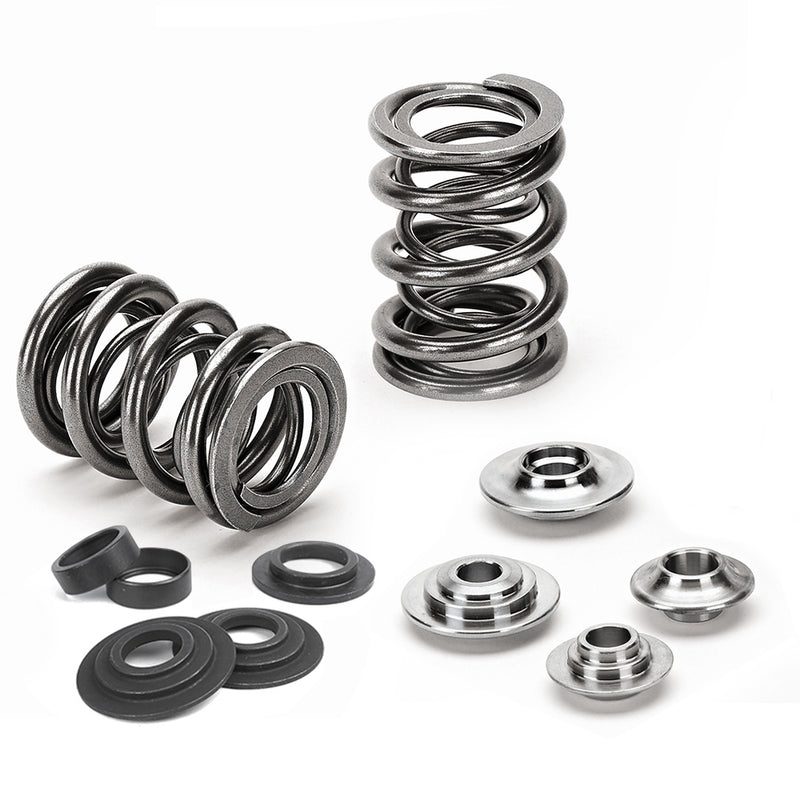

- 16 x Supertech dual valve springs (SPR-TS1015)
- 16 x Supertech titanium retainers (RET-TS60-WRX1)
- 16 x Supertech spring seat locators (SEAT-TS-SUB-5)
No instructions available for this product.
