Supertech Beehive Valve Spring Kit 65 lb - Subaru EJ20 / EJ25 Turbo - WRX / WRX STI

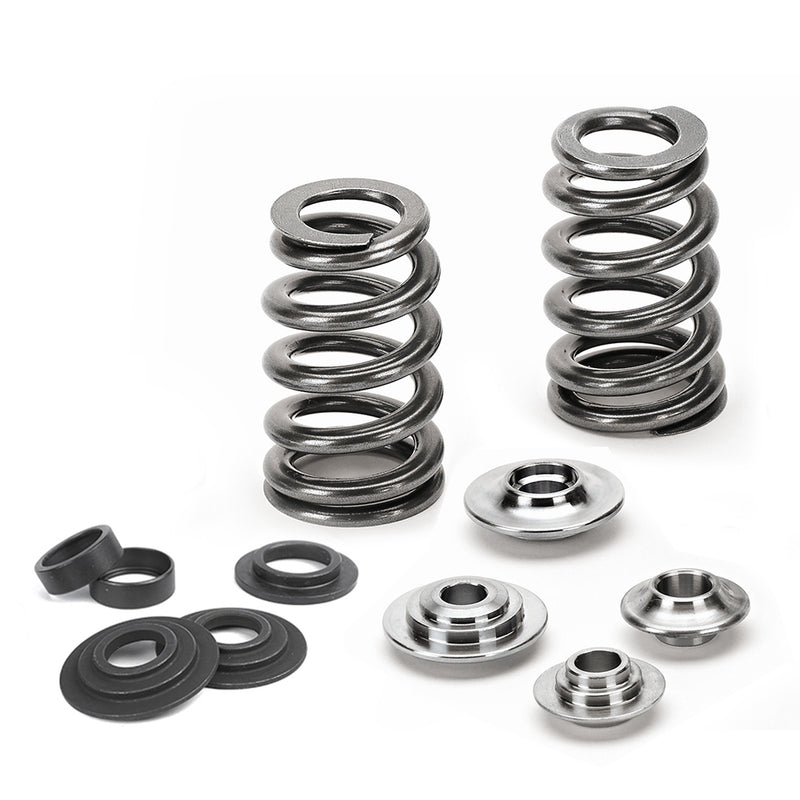

Supertech beehive valve spring kit for the turbocharged EJ20 and EJ25 DOHC engines in the Subaru WRX and WRX STI, Forester GT / XT and Liberty GT. It is a matched set of 16 springs, retainers and spring seat locators, rated at 65 lb @ 35.6mm on the seat and 211 lb @ 11.5mm open, for camshafts up to 14.20mm of valve lift. The beehive spring tapers at the top, so it runs a smaller, lighter retainer and controls the valve well at high rpm.
Note: Not for the 2015-on WRX (VA), which has the FA20 engine. Check spring installed height and coil bind against your camshaft before fitting. Installation by a professional engine builder is recommended.
Features
- Seat pressure 65 lb @ 35.6mm
- Open pressure 211 lb @ 11.5mm
- Max valve lift 14.20mm
- Coil bind 21.80mm
- Spring rate 12.7 lb/mm
- 16 springs, 16 retainers and 16 seat locators: a full 16-valve set
Pairs Well With
- Supertech Valve Locks 6mm 6 Degree - Subaru EJ20 Turbo / EJ25 - WRX / WRX STI / Forester / Liberty
- Supertech Polyacrylic Intake Valve Stem Seals - Subaru EJ20 Turbo / EJ25 - WRX / WRX STI / Forester / Liberty
- Supertech Viton Exhaust Valve Stem Seals - Subaru EJ20 Turbo / EJ25 - WRX / WRX STI / Forester / Liberty
- ARP 2000 Head Stud Kit - Subaru EJ20 / EJ25 DOHC - WRX / STI (GC / GD / GE / GH / GR / GV / VA) / Forester (SF / SG / SH) / Liberty GT (BE / BH / BL / BP)
Shop more: Supertech
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Supertech
- Part number(s)
- SPRK-TS1015-BE-SU3
Details
- Spring type
- Beehive
- Seat pressure
- 65 lb @ 35.6mm
- Open pressure
- 211 lb @ 11.5mm
- Max lift
- 14.20mm
- Coil bind
- 21.80mm
- Spring rate
- 12.7 lb/mm
- Inner spring ID
- 15.20mm
- Inner spring OD
- 23.20mm
- Outer spring ID
- 19.70mm
- Outer spring OD
- 27.70mm
- Engine
- EJ20 / EJ25 Turbo
Contents
- 16 x Supertech beehive valve springs
- 16 x Supertech titanium retainers (RET-TS60-WRX-BE)
- 16 x Supertech spring seat locators (SEAT-TS-SUB3)
No instructions available for this product.
