Siruda Grommet Metal Head Gasket Nissan 300ZX (Z32) VG30DETT

Siruda Grommet Metal Head Gasket - Nissan 300ZX (Z32) - VG30DETT

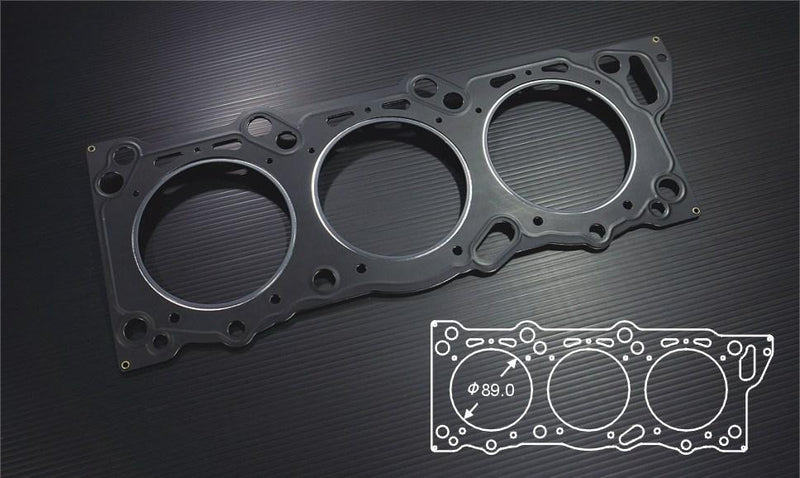

The Siruda grommet metal head gasket is a multi-layer steel (MLS) head gasket for the VG30DETT engine in the twin-turbo Nissan 300ZX (Fairlady Z) Z32. It is made for rebuilt and modified engines where the head seal has to hold more cylinder pressure than a factory gasket.

Choose the thickness to suit your build. It comes in a 89 mm bore and thicknesses of 1.2 mm or 1.5 mm. A thicker gasket lowers compression and adds piston-to-head clearance, so measure deck height and set the thickness with your engine builder. The thickness shown is Siruda's figure at the combustion seal; the body thickness is in the specifications.

Siruda's grommet design puts a metal grommet around each bore to hold back combustion gas under high cylinder pressure, including the spikes that come with knock. The grommets are molybdenum coated to limit scuffing of the head and block faces, and a nitrile rubber coating on the gasket surface helps seal the coolant and oil passages.

Note: Sold individually: this engine needs two, one for each cylinder head. Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Multi-layer steel (MLS) construction
• Molybdenum-coated grommet around each bore with a nitrile rubber surface coating
• 89 mm bore
• Choice of thickness: 1.2 mm or 1.5 mm
• Suits stock and built engines

Pairs Well With

• Siruda Turbo Gasket - Nissan 300ZX (Z32) - VG30DETT
• ARP Head Stud Kit - Nissan VG30DE / VG30DETT - 300ZX (Z32)

Shop more: Siruda

Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
