Radium Engineering Universal Competition Catch Can Short (No Extension)

Radium Engineering Universal Competition Catch Can - Short (No Extension)

The Radium Engineering Universal Competition Catch Can in short form (SKU 20-0072) offers much larger capacity than Radium's standard catch cans in a compact body for tight engine bays. It is CNC machined from 6061-T6 aluminium and anodised, with an integrated dipstick and stainless steel filtration media.

The can can be plumbed to vent to engine (VTE), recirculating cleaned air back into the intake, using its 10AN ORB inlet and outlet ports. The lower half unscrews for draining, and a threaded 4AN ORB drain port allows an optional petcock valve. An adjustable bracket allows full 360-degree positioning.

Note: Sold without fittings – compatible 10AN ORB adapter fittings are available separately. Not designed for use with aftermarket crankcase vacuum pumps. Some engines may need more than one catch can depending on the PCV system design. Installation by a professional is recommended.

Features

• CNC-machined 6061-T6 aluminium body, anodised
• 0.6L (20 fl oz) capacity in a short 160mm body
• 10AN ORB (7/8in-14) inlet and outlet
• 4AN ORB (7/16in-20) drain port for an optional petcock
• Stainless steel filtration media
• Integrated dipstick

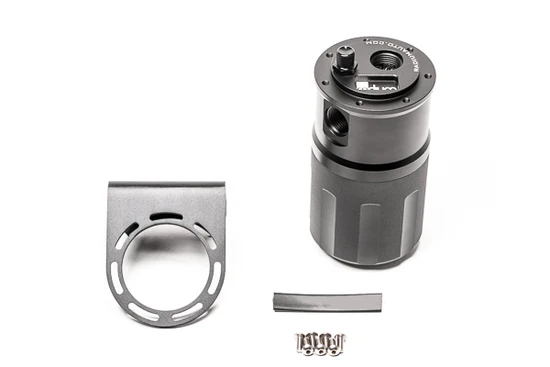

• Adjustable 360-degree mounting bracket

Pairs Well With

• Radium Engineering Competition Catch Can Extension Upgrade - For 20-0072 Short Version - 946mL
• Radium Engineering VTA to VTE Competition Catch Can Adapter - Universal - 10AN ORB
• Radium Engineering 12AN Female to Air Filter Breather Adapter - Universal
• Radium Engineering Catch Can Petcock Drain Kit - Universal - 4AN ORB

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
