Radium Engineering Quick Fill Dump Can (Dry Break Compatible)

The Radium 20-0697-00 Quick Fill Dump Can is designed for fast, controlled refuelling in motorsport environments. Featuring a high-flow vent architecture and ergonomic design, this 5-gallon (19L) can offers flow rates up to 6.7 GPM—nearly 4x faster than standard fuel jugs. Graduated in both gallons and litres, it is safe for all fuel types and ideal for pit use.

Key Features

• High-flow standard filler spout (up to 6.7 GPM)

• Durable, fuel-safe polymer construction

• Built-in ergonomic handles for top and bottom grip

• 1.5in hose-compatible spout with knurled aluminium caps

• Integrated vent with 6-position fuel type ID selector

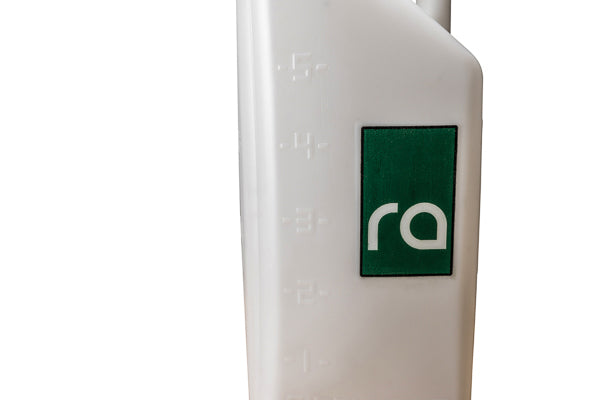

• Molded graduations in US gallons and litres

• Compatible with gasoline, diesel, ethanol, methanol, E85, etc.

Specifications

• Capacity: 5 gallons (19L)

• Dimensions: 25.25in × 9.5in × 9.5in

• Vent OD: 1.675in | ID: 1.375in

• Pour Spout OD (cut to size): 2.5in or 3in

• Colour: Semitransparent White

Flow Rates

• 5.86 GPM (vent cap ON, flip cap open)

• 6.70 GPM (vent cap OFF)

Radium Quick Fill Dump Can – 5 Gallon, 1.5in Dry Break
Part No. 20-0697-01

Overview
The Radium 20-0697-01 Quick Fill Dump Can is optimised for dry break refuelling systems, featuring a 1.5in dry break probe for fast, spill-free pit stops. With flow rates up to 25.75 GPM, it outperforms conventional jugs for motorsport use. Built from durable fuel-safe polymer, it includes knurled aluminium caps and a visual fuel level section for added control.

Key Features

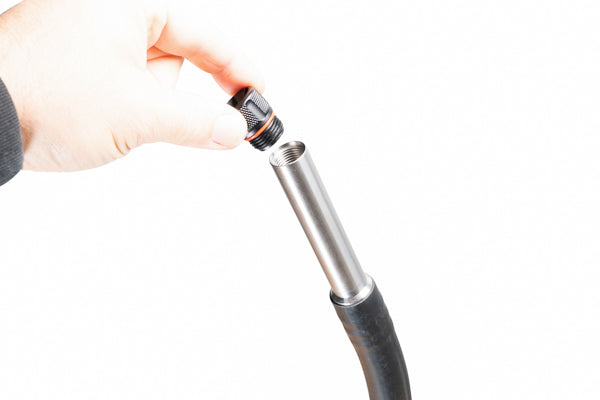

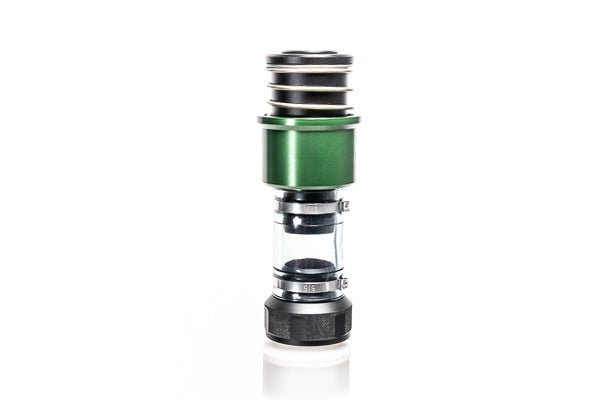

• 1.5in dry break probe (compatible with Radium and other receptacles)

• Clear fill tube for fuel level monitoring

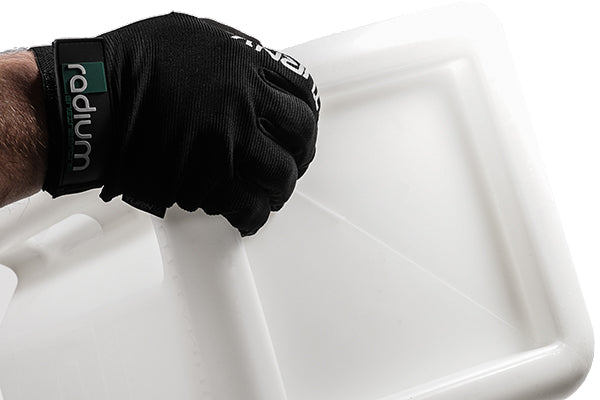

• Ergonomic top and bottom handles

• Knurled aluminium pour and vent caps

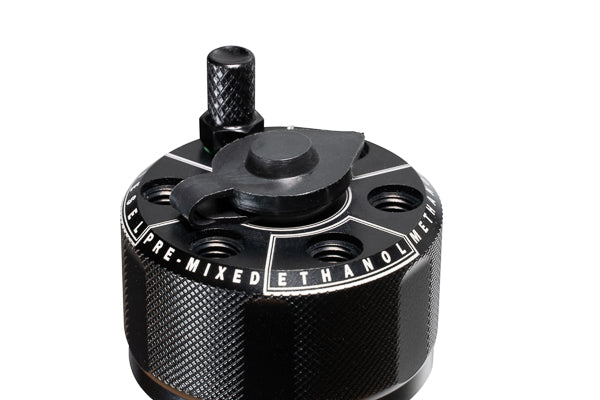

• 6-position fuel type selector on vent cap

• Molded gallon and litre graduation marks

• Safe for all fuel types including AV gas, E85, methanol, diesel, etc.

Specifications

• Capacity: 5 gallons (19L)

• Dimensions: 25.25in × 9.5in × 9.5in

• Pour spout OD: Trim for 2.5in or 3in dry breaks

• Vent OD: 1.675in | ID: 1.375in

• Colour: Semitransparent White

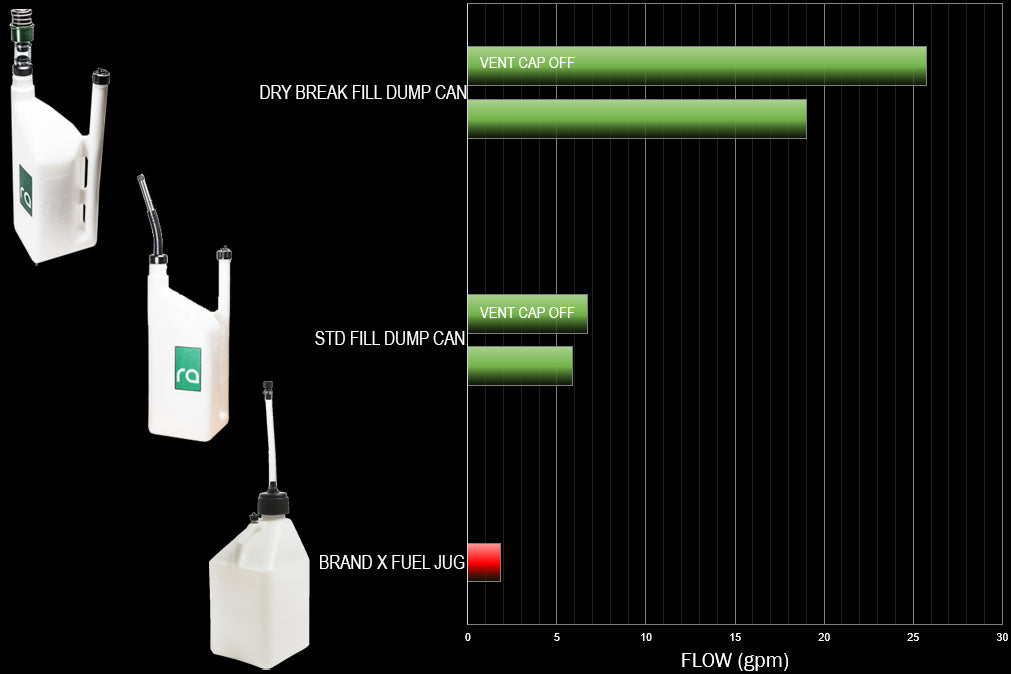

Flow Rates

• 19.02 GPM (vent cap ON, flip cap open)

• 25.75 GPM (vent cap OFF)

Note

• For maximum efficiency, use with a large vent (e.g. Radium 20-0535)
