Radium Engineering Fluid Lock Dual Catch Can Kit Toyota Supra (JZA80)

Radium Engineering Fluid Lock Dual Catch Can Kit - Toyota Supra (JZA80)

The Radium Engineering 20-0387-FL Dual Catch Can Kit gives the MK4 Toyota Supra (JZA80) a complete closed-loop crankcase ventilation setup, with separate PCV and CCV catch cans that keep oil vapour, unspent fuel and blow-by out of the intake. It is ideal for high-performance 2JZ-GTE engines.

The two cans work independently and do not vent to atmosphere. The PCV can handles the metered vacuum circuit from the intake manifold, while the CCV can captures blow-by from the crankcase under load. Both use Radium's pressure-sealed Fluid Lock construction, which suits boosted engines and traps collected fluid until it is emptied.

Note: Three mounting brackets are included to cover the chassis variations – RHD and LHD, twin or single turbo, TRAC and brake master cylinder differences – with no drilling or permanent modifications. Check the dipsticks after 3–4 weeks of driving to set your emptying interval. Installation by a professional is recommended.

Features

• Closed-loop dual catch can setup
• PCV can with 6AN fittings and CCV can with 8AN fittings
• Pressure-sealed Fluid Lock cans suited to boost
• Three mounting brackets for RHD/LHD, twin/single turbo, TRAC and brake master variations

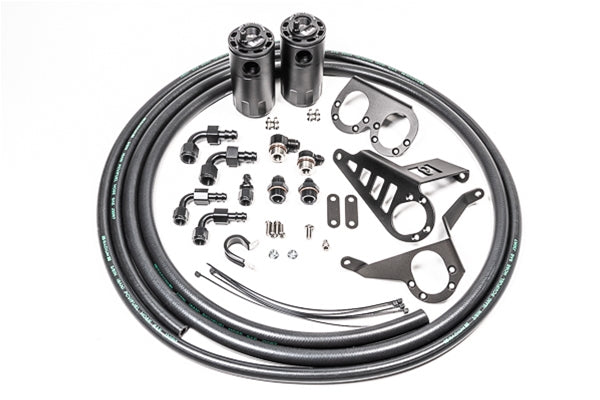

• All hoses, fittings and hardware included
• No cutting or drilling required
