Radium Engineering Fluid Lock Dual Catch Can Kit Subaru WRX (VB)

Radium Engineering Fluid Lock Dual Catch Can Kit - Subaru WRX (VB)

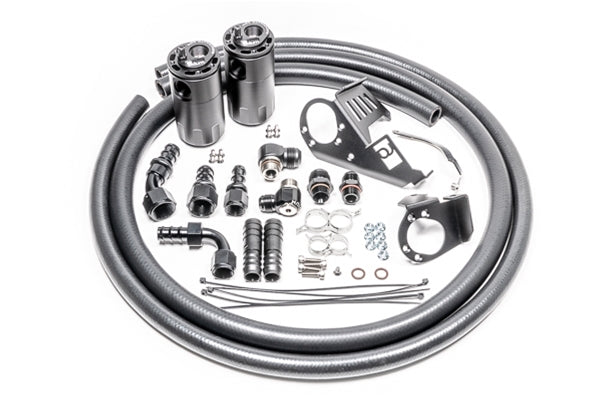

The Radium Engineering Fluid Lock dual catch can kit (SKU 20-0756-FL) is a vehicle-specific PCV and CCV catch can package for the 2022+ Subaru WRX (VB). Both cans mount using factory locations with laser-cut brackets and no cutting, drilling or permanent modification.

The PCV can mounts to threaded bosses on the ABS unit on the right-hand side and runs inline between the PCV valve and intake manifold, catching vapour, unburnt fuel and oil sludge drawn in under vacuum. The CCV can mounts under the OEM air intake duct on the left-hand side and runs between the crankcase vent port and turbo inlet pipe, catching high-load blow-by before it reaches the intake. Radium's Fluid Lock design stops the reservoirs overfilling and holds the collected fluid until emptied.

Note: Radium catch cans are pressure sealed, so no extra inline check valve is required. The CCV can is compatible with the OEM air duct. Check the fluid level with the dipsticks after 3–4 weeks of driving to work out an emptying interval. Installation by a professional is recommended.
