Radium Engineering Fluid Lock Catch Can Kit CCV – 2022+ Subaru WRX

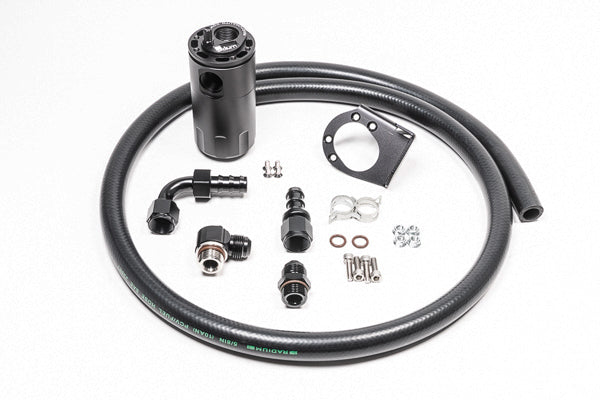

This Radium Engineering catch can kit is a CCV-specific solution for the 2022+ Subaru WRX VB. It includes a baffled catch can with Fluid Lock technology, a precision laser-cut bracket, and all required fittings, hoses, and stainless hardware for a seamless, bolt-on installation with no permanent modifications.

Overview:
The catch can mounts discreetly underneath the OEM air intake duct and runs inline between the crankcase vent and turbo inlet. Under high load (WOT), this line can carry excessive oil vapours that contribute to sludge buildup in the turbo piping and intercooler, reducing thermal efficiency and performance. The Radium CCV catch can prevents this by filtering contaminants before they re-enter the intake system.

Key Features:

• Intercepts oil vapours from the CCV line before entering the turbo inlet

• Reduces oil accumulation and keeps intake components clean

• Fully sealed, track and emissions legal

• Anodised aluminium construction

• Integrated dipstick for quick inspection

• Pressure-sealed Fluid Lock system for leak-proof operation

• All necessary hoses, fittings, and stainless hardware included

Specifications:

• Capacity: 207 mL

• Height (without fittings): 127 mm

• Outside Diameter: 62 mm

Vehicle Compatibility:

• Subaru WRX (VB Chassis) – 2022+
