Radium Engineering FCST Direct Mount Fuel Filler (Vented Cap) - Universal

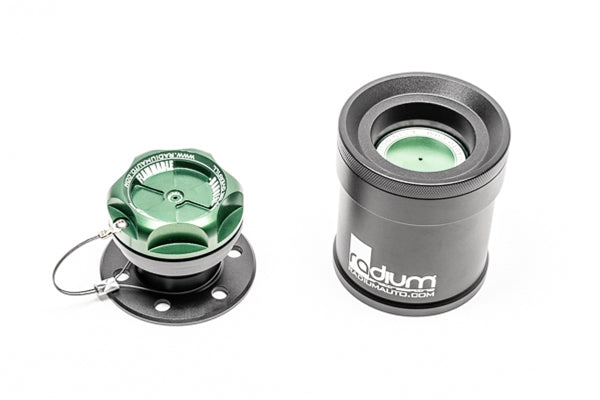

This listing covers Radium Engineering direct-mount fillers for Radium FCST fuel cell surge tanks with a 6-bolt, 2.18" (55mm) bolt circle flange tapped 1/4"-28. Choose the variant to suit your refuelling setup: the vented fill neck and cap (20-0197-V) or the vented 1.5in female dry break (20-0495-V).

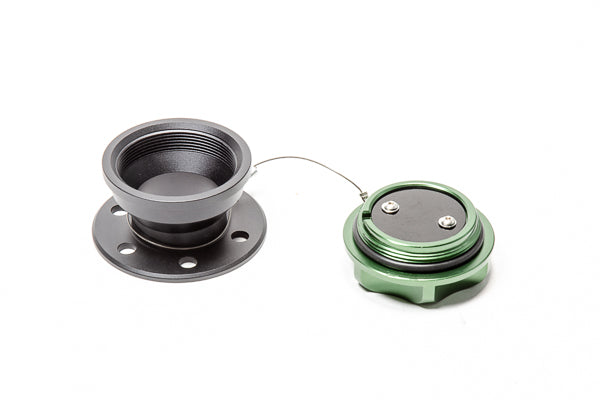

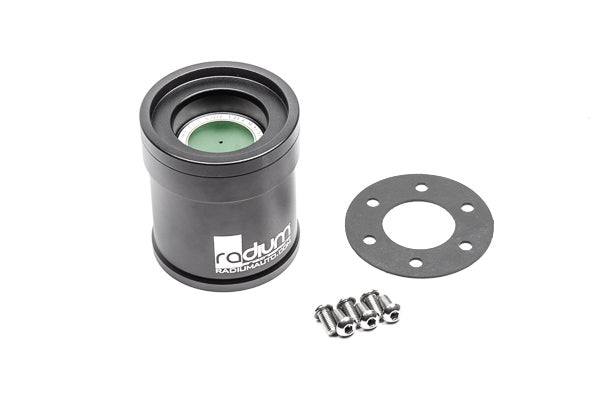

The fill neck is machined and anodised aluminium and takes the anodised, laser-etched 20-0148-V vented cap, sealed with an FKM gasket and O-ring. The dry break version includes the 20-0549-V vented female receiver in an aluminium housing, stands 3.43" tall from dry break to gasket, and mates with Radium 20-0496 and 20-0996 1.5in male dry break probes (and other 1.5in dry breaks). All components and seals suit petrol, diesel, AV gas, methanol, ethanol and E85.
Note: Suits FCST units 20-014X-XX, 20-049X-XX, 20-069X-XX and 20-099X-XX with the 6-bolt flange. These fillers do not fit the FCST-X. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering FCST Filler Adapter - Universal - 6-Bolt to 3-Bolt
- Radium Engineering FCST Lift Pump Extension - Universal Deep Fuel Cells - 203mm Add-On
- Radium Engineering Dry Break Dust Cap - Universal
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Universal | Radium FCST with 6-bolt fill flange | - | - | Suits 20-014X-XX, 20-049X-XX, 20-069X-XX and 20-099X-XX; not FCST-X |
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0197-V, 20-0495-V
- Direct Mount Fill Neck and Cap – Part number
- 20-0197-V
- Direct Mount Dry Break – Part number
- 20-0495-V
Details
- Product
- FCST direct mount fuel filler (vented)
- Flange
- 6-bolt, 2.18" (55mm) bolt circle, 1/4"-28
- Seals
- FKM
- Dry break height
- 3.43" (dry break to gasket)
- Dry break mates with
- 20-0496 / 20-0996 1.5in male probes
- Fuel compatibility
- Petrol, diesel, AV gas, methanol, ethanol, E85
- Not compatible with
- FCST-X
Contents
- Fill neck and cap variant: fill neck, vented cap (20-0148-V), FKM flange gasket and O-ring, stainless steel hardware
- Dry break variant: vented 1.5in female dry break receiver (20-0549-V), aluminium mount housing, gasket, stainless steel hardware
