Radium Engineering Top Feed Conversion Fuel Rail
Not sure which option fits your application? Contact Us - we're happy to help.

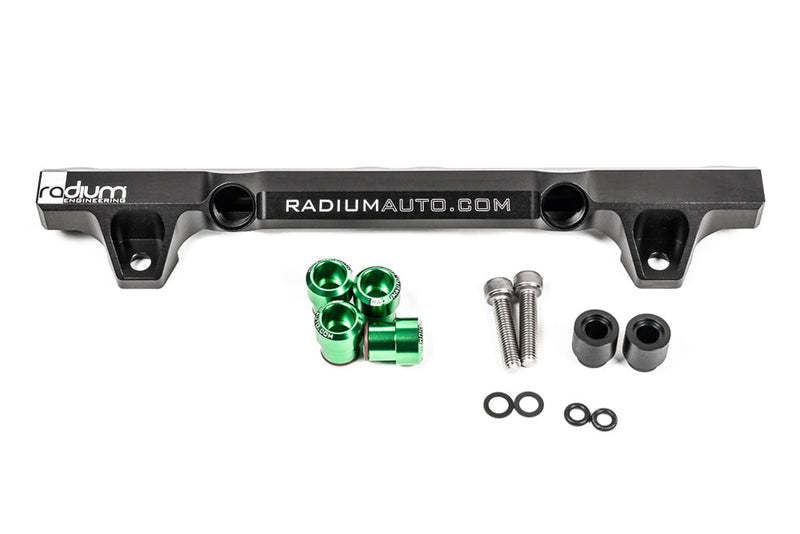

Radium Engineering Top Feed Conversion Fuel Rail - Mazda 26B 4-Rotor - Primary
Radium Engineering's high-flow primary fuel rail converts the Mazda 26B four-rotor to top-feed injectors. Thermal insulating spacers and washers are supplied with stainless hardware to limit heat soak into the fuel (SKU 20-1126).
The 14mm lower injector seats work with or without the OEM diffusers and use FKM O-rings suitable for boosted engines; the green seats extend the O-ring past the air-assist injector holes in the iron. The rail has four 8AN ORB ports, with the extra centre ports available for accessories such as the OEM fuel temperature sensor (via Radium 14-0421), a pressure transducer or a Radium fuel pulse damper.
Note: Port fittings are sold separately and must suit your application. Allow clearance around the ports for larger accessories such as regulators, gauges and pulse dampers. Installation by a professional is recommended.
Features
- High-flow primary top feed conversion rail for the 26B 4-rotor
- 4 x 8AN ORB ports
- 14mm lower injector seats with FKM O-rings
- Green seats extend the O-ring past the air-assist holes
- Thermal insulating spacers and washers with stainless hardware
Pairs Well With
- Radium Engineering Injector Seats - Mazda Top Feed Fuel Rails
- Radium Engineering MPR Multi-Port Regulator - Universal
- Radium Engineering Fuel Pressure Gauge - Universal - 0-100psi / 0-6.9 BAR with 8AN ORB Adaptor
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-1126
Details
- Engine
- Mazda 26B 4-rotor
- Configuration
- Primary fuel rail, top feed conversion
- Ports
- 4 x 8AN ORB
- Injector seats
- 14mm, FKM O-rings, with or without OEM diffusers
Contents
- Primary fuel rail
- Thermal insulating spacers and washers
- Stainless hardware
- 14mm lower injector seats with FKM O-rings
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
| Make | Model | Chassis | Years | Versions | Engine | Brakes | Position |
|---|
Can’t see your car? Ask us and we’ll check fitment for you.
