Radium Engineering Fuel Rails Ford Mustang (S197/S550) Coyote / Voodoo

Radium Engineering Fuel Rails - Ford Mustang (S197/S550) - Coyote / Voodoo

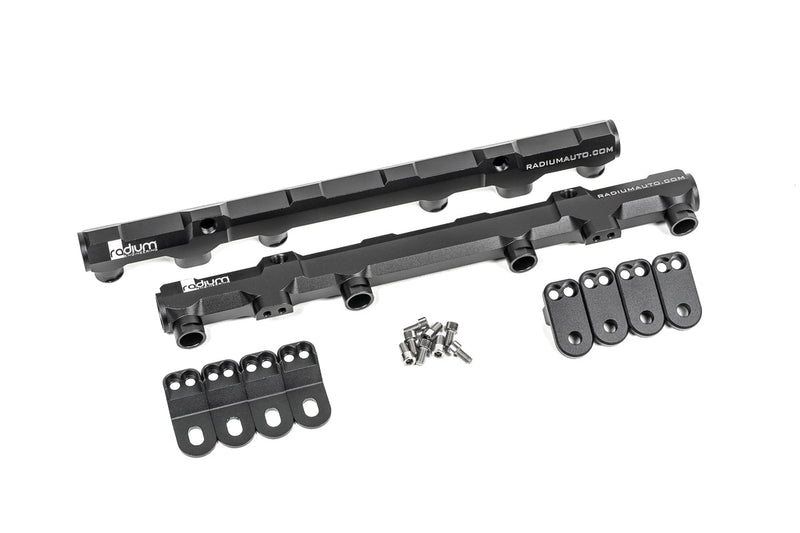

Radium Engineering's Coyote / Voodoo fuel rails replace the factory rails on Ford's 5.0L Coyote (2011 on, excluding the 2024+ S650 Mustang) and 5.2L Voodoo V8s, including the Ford Mustang GT (S550). They are CNC machined from solid 6061 aluminium with large internal bores, black anodised and laser etched, and keep the OEM 14mm injector bore with retaining-clip provisions so factory injectors index correctly (SKU 20-1433).

Two sets of mounting feet cover all Coyote intake manifolds, and the ports are tapped for 8AN ORB and 1/8 NPT.

Note: Not compatible with the 2024+ Mustang (S650). Unless the 20-1433-PK plumbing kit is purchased, Radium 14-0358 is required to adapt the OEM direct injection pump feed hose and 14-0359 to adapt the OEM fuel sensor. Port fittings are sold separately. Designed around the US-market vehicle; please confirm fitment on Australian-delivered vehicles with our team before ordering. Installation by a professional is recommended.

Features

• CNC machined from solid 6061 aluminium
• Black anodised and laser etched
• Large internal bores
• 14mm ID injector bores accept factory injectors
• Two sets of mounting feet to suit all Coyote intake manifolds
• 8AN ORB and 1/8 NPT ports

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
