Radium Engineering Fuel Collection Valve Universal 1" Ball Check Valve

Radium Engineering Fuel Collection Valve - Universal - 1" Ball Check Valve

Fuel starvation under hard cornering can end a race or damage an engine in seconds. The Radium Engineering Fuel Collection Valve is a precision CNC machined check valve built for fuel cell collector box applications, keeping fuel where it needs to be regardless of vehicle attitude. Radium Engineering are known for their exacting tolerances and motorsport-focused design, and this valve is no exception.

This listing covers the Radium Engineering 20-0151 universal fit fuel collection valve. It is designed to suit any custom fuel cell or collector box build and is not vehicle specific. Multiple units are typically installed in a single collector box to manage fuel slosh from all directions.

Key Features

• CNC machined 6061 aluminium two-piece housing with hard anodised finish
• Large 25.4mm (1 in) wear-resistant nylon ball for maximum flow capacity
• Full-travel slot design prevents ball jamming and allows rapid collector box filling
• Compatible with petrol, E85, and all alcohol fuel blends
• Requires a 28.6mm (1-1/8 in) mounting hole in material up to 6.35mm (1/4 in) thick
• One-way valve operation maintains fuel in the collector under high-G conditions

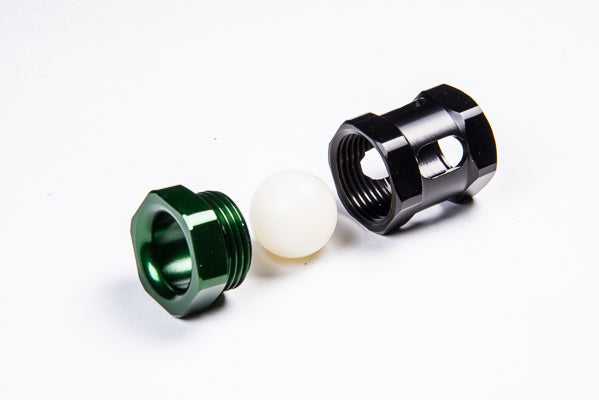

Kit Contents

• 1x anodised aluminium check valve body
• 1x anodised aluminium check valve bushing
• 1x wear-resistant nylon ball, 25.4mm (1 in) diameter

Installation details and dimensional data are provided in the tabs above. Confirm your collector box wall thickness and mounting hole requirements before ordering.

Not sure if this valve suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
