Radium Engineering Fluid Lock Catch Can Kit (CCV) Toyota Supra (A90 / A91)

Radium Engineering Fluid Lock Catch Can Kit (CCV) - Toyota Supra (A90 / A91)

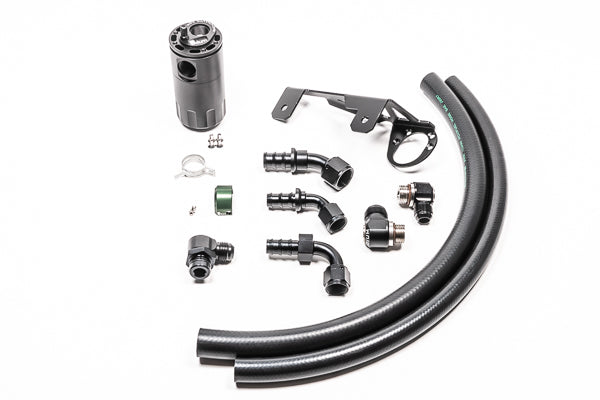

The Radium Engineering Fluid Lock CCV catch can kit (SKU 20-0750-FL) suits the Toyota GR Supra (A90 / A91). It runs inline between the crankcase vent (CCV) port and the intake pipe, catching oil and sludge that would otherwise coat the intake pipe and intercooler and reduce intercooler efficiency.

The can mounts to two factory holes on the front radiator support, and the location was chosen to clear OEM and aftermarket strut braces as well as upgraded turbochargers and intake tubing. Radium's Fluid Lock design uses a patented mechanism that stops the reservoir overfilling and holds the collected fluid until the can is emptied.

Note: This kit covers the CCV side of the crankcase only. For full coverage pair it with the Radium PCV catch can kit (20-0749-FL) or choose the dual catch can kit (20-0751-FL). Check the level with the integrated dipstick after 3–4 weeks of driving to work out an emptying interval. Installation by a professional is recommended.

Features

• Inline between the CCV port and the intake pipe
• Fluid Lock mechanism prevents overfilling and traps collected fluid
• Mounts to two factory holes on the front radiator support – no cutting or drilling
• Designed to clear strut braces, upgraded turbos and intake tubing
• Closed system – does not vent to atmosphere
• 10AN ORB ports and a 4AN ORB drain port
• Integrated dipstick for checking the fluid level
