Radium Engineering Fluid Lock Catch Can Kit (CCV) - Nissan Silvia (S15)
The Radium Engineering Fluid Lock CCV catch can kit suits the Nissan S15 Silvia and 200SX (SKU 20-0636-FL). It mounts to two of the wiper motor mounts and runs inline between the crankcase vent port and the intake pipe, capturing oil, sludge and vapour that would otherwise build up in the intake, air filter and intercooler under high load.
It is a closed-loop system with 10AN ORB ports, a 4AN ORB drain, 2-step baffling and an O-ring sealed dipstick. The Fluid Lock mechanism prevents overfilling and holds collected fluid until the can is emptied.
Note: This kit does not address blow-by from the PCV side; pairing with the PCV kit 20-0635 is recommended, or choose the dual kit 20-0637-FL. Fits all S15 trims, RHD and LHD, with no cutting or drilling. Installation by a professional is recommended.
Pairs Well With
- Radium Engineering Fluid Lock Catch Can Kit (PCV) - Nissan Silvia (S15)
- Radium Engineering Catch Can O-Ring Service Kit - Universal
- Radium Engineering Catch Can Petcock Drain Kit - Universal - 4AN ORB
- Radium Engineering Top Feed Fuel Rail - Nissan Silvia (S14 / S15 SR20DET)
- Radium Engineering IACV Spacer - Nissan Silvia (S14 / S15 SR20DET)
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 20-0636-FL
Details
- Catch can type
- Fluid Lock, CCV (crankcase vent) side
- Ports
- 10AN ORB inlet/outlet, 4AN ORB drain
- Separation
- 2-step baffling
- Level check
- O-ring sealed dipstick
- System
- Closed loop
- Mounting location
- Wiper motor mounts
- Matching PCV kit
- 20-0635

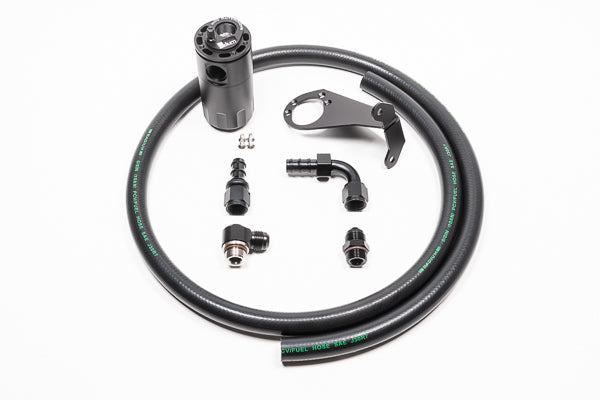

Contents
Baffled oil catch can
Nissan-specific mounting bracket
AN adapter fittings and hose ends
Stainless steel hardware
Radium PCV hose
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
