Radium Engineering AN ORB to SAE Male EFI Quick Connect Fittings Universal

Radium Engineering AN ORB to SAE Male EFI Quick Connect Fittings - Universal

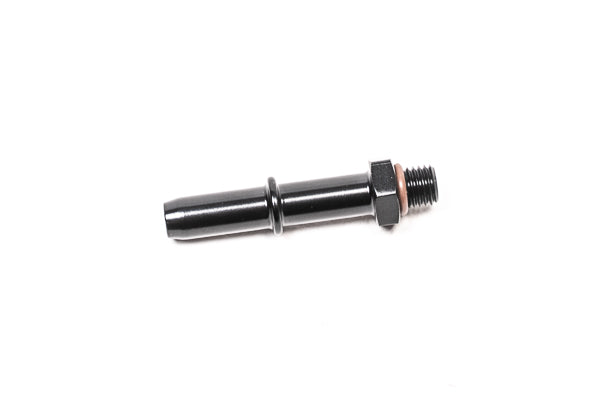

Radium Engineering's AN ORB to SAE male adapters screw into an AN ORB (O-ring boss) port and provide an SAE male EFI quick connect, letting you tie Radium fuel rails, surge tanks and regulators straight into OEM quick connect fuel lines. The SAE end pushes on and locks into the factory quick connect used on most modern US, European and Japanese fuel injection systems. They are machined from anodised aluminium, and the ORB side seals on an FKM O-ring suited to all oil and fuel types.

Choose your size from the dropdown – each option lists the ORB port size and the SAE male size, with short and extended lengths where available.

Note: Lubricate the O-rings with engine oil, O-ring lube or petroleum jelly before installation; no PTFE paste or thread sealant is needed on the ORB threads. To confirm your SAE size, measure the outside diameter of the male SAE fitting: 0.3125in = 5/16", 0.375in = 3/8", 0.500in = 1/2", 0.625in = 5/8". Installation by a professional is recommended.

Features

• Converts an AN ORB port to an SAE male EFI quick connect
• Push-on, locking connection to OEM quick connect fuel lines
• Anodised aluminium construction
• FKM O-ring included – no thread sealant required on the ORB side
• ORB threads: 2AN = 5/16"-24, 6AN = 9/16"-18, 8AN = 3/4"-16, 10AN = 7/8"-14
• Short and extended lengths available in selected sizes

Pairs Well With

• Radium Engineering AN ORB Fitting Replacement Viton O-Ring 5 Pack - Universal
• Radium Engineering SAE Female EFI Quick Connect to Hose Barb Fittings - Universal

Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
