Radium Engineering AN ORB to AN Male Flare Fittings - Universal

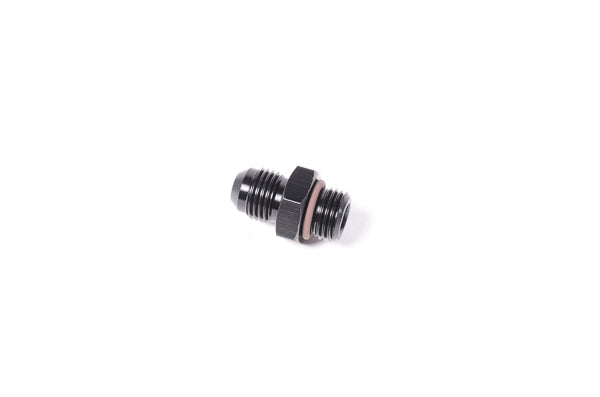

These Radium Engineering adapter fittings join an AN ORB (O-ring boss) port to an AN male flare connection, the quickest way to plumb braided or PTFE hose into Radium fuel rails, surge tanks, fuel pressure regulators and other ORB-ported components. They are CNC machined from anodised billet aluminium and seal on an FKM (Viton) O-ring rather than the threads, and suit pump petrol, E85, ethanol, methanol and flex fuel.
The range covers 6AN, 8AN, 10AN and 12AN ORB ports in both male ORB and female ORB styles. Choose your size from the dropdown – each option lists the ORB port size first, then the male flare size.
Note: Lubricate the O-ring with clean engine oil, O-ring lube or petroleum jelly before installation, and do not use PTFE paste or thread sealant on the ORB threads. The 12AN remote fitting screws into the 12AN ORB vent port on current Radium FCST surge tanks to relocate a quick-fill DSV; older FCST units also need the 20-0439 12AN ORB to 5-bolt SAE adapter. Installation by a professional is recommended.
Features
- CNC machined billet aluminium, anodised
- FKM (Viton) O-ring seal – no PTFE tape or thread sealant required
- Male ORB and female ORB styles available
- ORB threads: 6AN = 9/16"-18, 8AN = 3/4"-16, 10AN = 7/8"-14, 12AN = 1-1/16"-12
- Compatible with pump petrol, E85, ethanol, methanol and flex fuel
- Suits fuel rails, surge tanks, regulators and other AN ORB ported components
Pairs Well With
- Radium Engineering AN ORB Fitting Replacement Viton O-Ring 5 Pack - Universal
- Radium Engineering PTFE Hose Ends - Universal
- Radium Engineering PushLok Hose Ends - Universal
- Radium Engineering AN ORB and NPT Plugs and Caps - Universal
- KOYORAD 10 Row Racing Oil Cooler - Universal - 286 x 76 x 51mm -10AN
- KOYORAD 19 Row Racing Oil Cooler - Universal - 286 x 146 x 51mm -10AN
- KOYORAD 25 Row Racing Oil Cooler - Universal - 286 x 191 x 51mm -10AN
- KOYORAD 35 Row Racing Oil Cooler - Universal - 286 x 279 x 51mm -10AN
- KOYORAD 5 Row Tube and Fin Racing Oil Cooler - Universal - 584 x 102 x 64mm -10AN
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Radium Engineering
- Part number(s)
- 14-0195, 14-0245, 14-0530, 14-0151, 14-0152, 14-0153, 14-0130, 14-0533, 14-0131, 14-0534, 14-0132, 14-0934, 14-0434
- 6AN ORB to 6AN Male Flare – Part number
- 14-0195
- 6AN ORB to 8AN Male Flare – Part number
- 14-0245
- 6AN ORB Female to 8AN Male Flare – Part number
- 14-0530
- 8AN ORB to 6AN Male Flare – Part number
- 14-0151
- 8AN ORB to 8AN Male Flare – Part number
- 14-0152
- 8AN ORB to 10AN Male Flare – Part number
- 14-0153
- 10AN ORB to 6AN Male Flare – Part number
- 14-0130
- 10AN ORB Female to 6AN Male Flare – Part number
- 14-0533
- 10AN ORB to 8AN Male Flare – Part number
- 14-0131
- 10AN ORB Female to 8AN Male Flare – Part number
- 14-0534
- 10AN ORB to 10AN Male Flare – Part number
- 14-0132
- 10AN ORB to 12AN Male – Part number
- 14-0934
- 12AN ORB to 12AN Male (Remote) – Part number
- 14-0434
Details
- Connection type
- AN ORB (male or female) to AN male flare
- Material
- CNC-machined billet aluminium, anodised
- O-ring
- FKM (Viton)
- ORB thread
- 6AN = 9/16"-18, 8AN = 3/4"-16, 10AN = 7/8"-14, 12AN = 1-1/16"-12
- Fuel compatibility
- Pump petrol, E85, ethanol, methanol, flex fuel
Contents
- 1 x AN ORB to AN male flare fitting (size as selected)
- FKM O-ring
No instructions available for this product.
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
