PARAGON 2-Piece Front Rotors – Audi S6 / S7 (C7/4G) / S8 (D4/4H) – 400 x 38mm

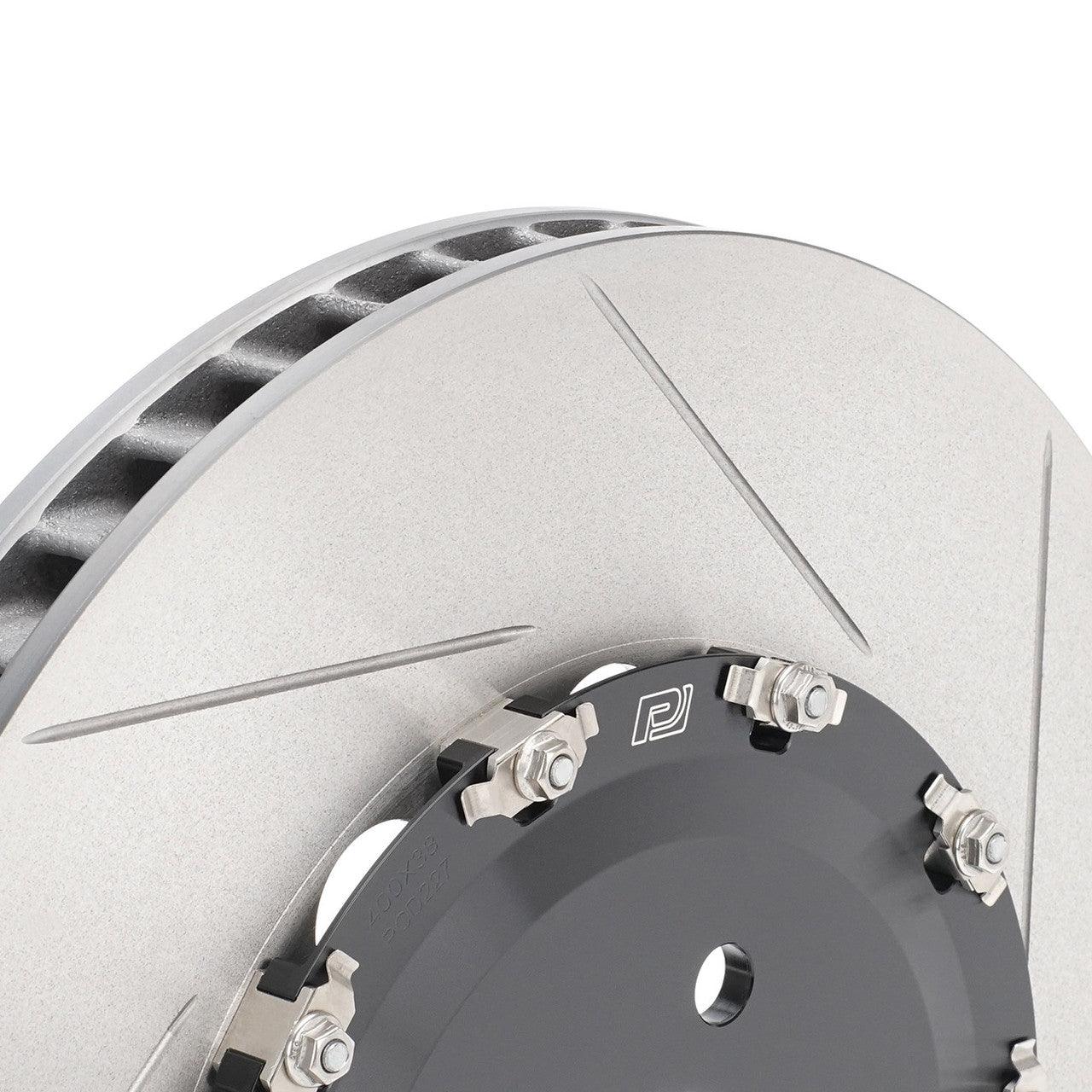

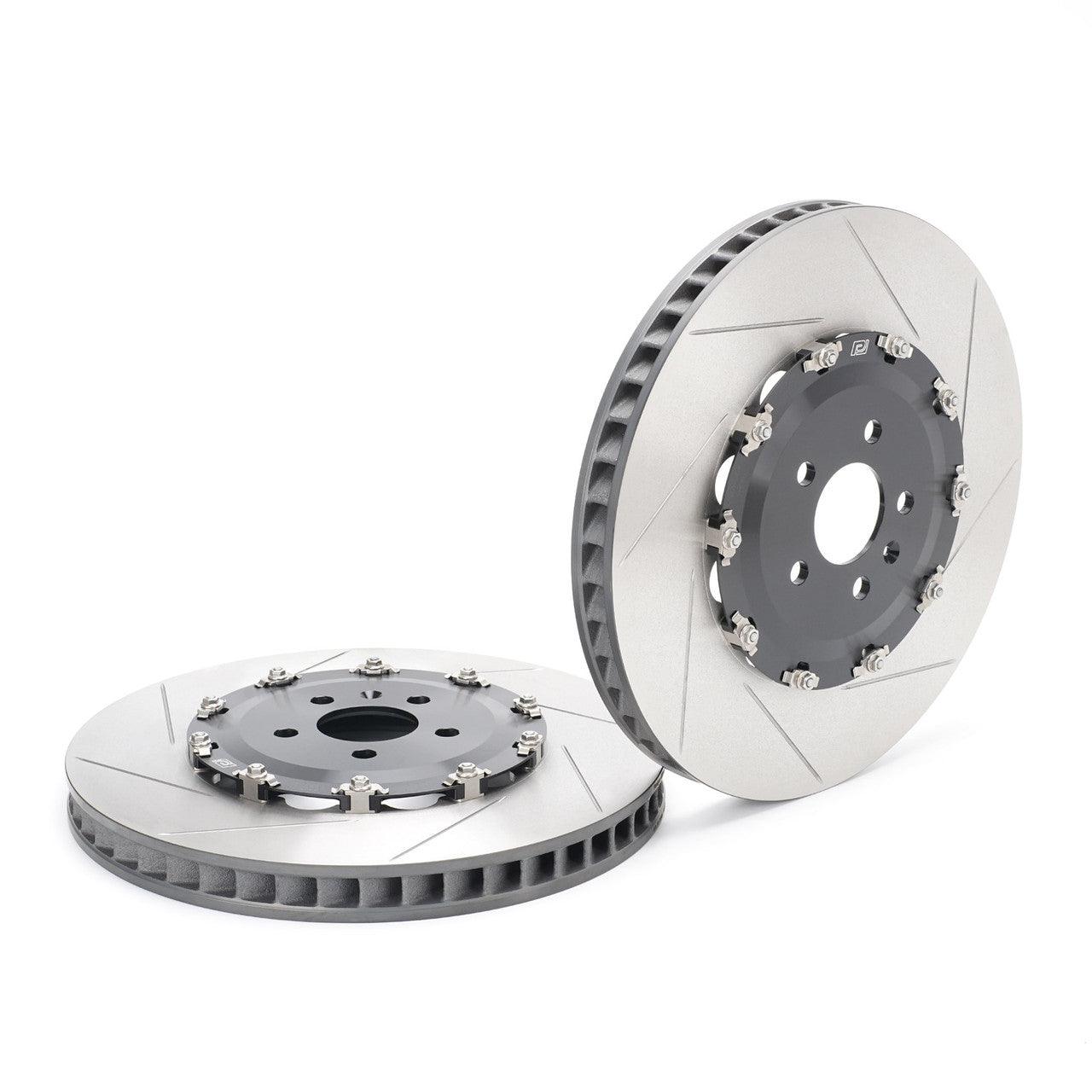

A pair of large 400 x 38mm slotted 2-piece front rotors for the Audi S6 / S7 (C7/4G) and S8 (D4/4H). They replace the factory iron discs to give these heavy, fast cars more thermal headroom and less fade under repeated hard stops, with the floating ring keeping pad contact consistent as temperatures climb.
Two hat finishes are offered. The clear hard-anodised hat keeps its colour under sustained track heat, while the black dyed hardcoat suits street and mixed use but can discolour once surface temperatures pass 260°C.
Note: Only for cars with the factory 400mm iron front brakes. Bolts on with the factory calipers, ABS and brake bias, and takes OEM or aftermarket pads of the factory pad depth (D). Installation by a professional is recommended.
Features
- 400 x 38mm slotted front rotors
- Directional cooling vanes for up to 30% cooler running than the factory discs
- H-Bobbin 10-bolt floating mount
- CM-250 high-carbon alloy cast iron rings, heat treated and CBN machined
- 14.7 kg per rotor, 0.41 kg lighter than OEM per side
- Lateral run-out within 0.03mm and balanced to within 2 grams
- Replaces OEM 4H0615301AL / 4H0615301T / 4H0615301M
Pairs Well With
- PARAGON 2-Piece Rear Rotors – Audi S6 / S7 (C7/4G) / S8 (D4/4H) – 356 x 22mm
- DIXCEL Front Brake Pads – Audi S6 (C7/C7.5) / S7 (C7/C7.5) / S8 (D4)
- DIXCEL Front Brake Pads – Audi A8 / S8 (D4) / SQ5 (8R)
- Scorpion Downpipe - Audi RS6 (C7) Avant / RS7 (C7) / S6/S7 (C7) - 76mm
- Scorpion Front Resonator Delete Pipe - Audi RS6 (C7) Avant / RS7 (C7) / S6/S7 (C7) - 70mm
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Audi | S6 | C7 / C7.5 (4G) | 2013–2018 | Front; models with OEM 400mm iron brakes only |
| Audi | S7 | C7 / C7.5 (4G) | 2013–2018 | Front; models with OEM 400mm iron brakes only |
| Audi | S8 | D4 (4H) | 2013–2018 | Front; models with OEM 400mm iron brakes only |
Product
- Brand
- Paragon
- Rotor size (diameter x thickness)
- 400 x 38mm
- Hat finish options
- Black hardcoat (.01) or clear hard anodised (.02)
- Replaces OEM part
- Audi 4H0615301AL / 4H0615301T / 4H0615301M
- Part number(s)
- P2R.109.400.380.22700.05.01.01.F / .02.F
Details
- Position
- Front
- Construction
- 2-piece floating, slotted face
- Ring material
- CM-250 high-carbon alloy cast iron, heat-treated and CBN-machined
- Hat material
- CNC-machined 6061-T6 aluminium, Type III hard anodised
- Rotor-to-hat mounting
- H-Bobbin, 10-bolt
- Cooling
- Directional ventilation vanes, up to 30% cooler than OEM
- Tolerances
- Lateral run-out ≤ 0.03mm; balanced within 2 g
- Weight (each)
- 14.7 kg (0.41 kg lighter than OEM)
Contents
- One pair of Paragon Performance 400mm x 38mm 2-piece rotor assemblies.
- Hat Material: Black hard coat/hard anodised 6061-T6 aerospace-grade aluminium.
- Bobbins: Stainless steel.
- Anti-Rattle Clips: Included.
- Assembly: Fully assembled and ready to install.
- Detailed installation manual.
