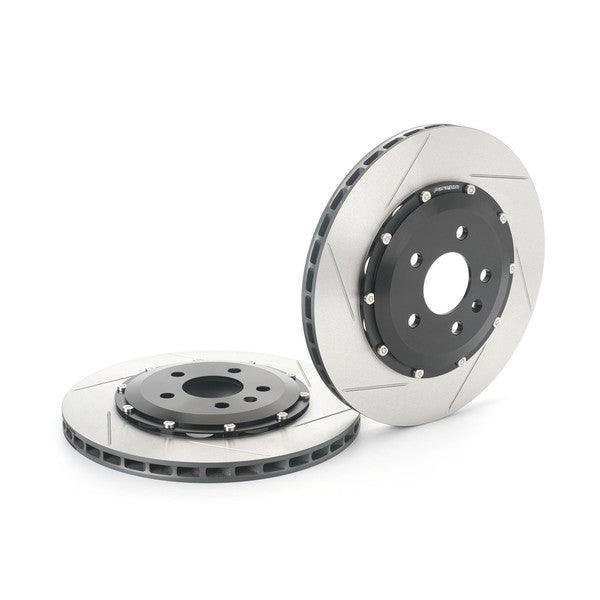

Paragon 2-Piece Rear Brake Rotor – Audi S4 / S5 / SQ5 B9 / B9.5 2018+ | 330x22mm

Enhance rear braking performance on your Audi S4, S5, or SQ5 B9 / B9.5 with Paragon 2-Piece Rear Rotors. Designed for serious track and street use, these 330mm x 22mm lightweight rotors improve heat dissipation, reduce fade, and cut unsprung weight — all with direct bolt-on fitment and full OEM system compatibility.

Overview

These rotors use directional ventilation vanes to guide airflow through the core, reducing temperatures by up to 30% under load. The floating 2-piece design accommodates thermal expansion without warping, keeping the rotor centred with the pads and delivering consistent bite under repeated hard braking. Slotted surfaces clear debris and water, improving wet-weather braking stability.

Key Features

• 330 x 22mm slotted rear rotors with directional cooling vanes
• Up to 30% improved cooling vs OEM – reduced fade and heat soak
• Floating 2-piece design allows expansion while maintaining alignment
• CM-250 high-carbon alloy cast iron rotor rings – stress-relieved and CBN-machined
• Run-out ≤ 0.03mm; balance variation ≤ 2 grams
• Slotted face improves pad bite and water evacuation
• Rotor-to-hat mount: D-Bobbin (Short) – 10-bolt system
• Each rotor weighs 5.49 kg – saves 2.06 kg per side vs OEM

Construction

Rotor hats are CNC-machined from aerospace-grade 6061-T6 aluminium and MIL-A-8625 Type III hard anodised for strength and corrosion protection. Weight is minimised by removing unnecessary material, ensuring strength without excess mass.

Finish Options

• Clear Hard Anodised: Won’t discolour under track heat – ideal for motorsport
• Black Dyed Hardcoat: May discolour above 260°C – recommended for street use

Vehicle Fitment

• Audi S4 B9 / B9.5
• Audi S5 B9 / B9.5
• Audi SQ5 B9 / B9.5
• Model Years: 2018+

Fitment Notes

• Direct bolt-on installation – no modifications required
• Maintains OEM ABS and brake bias
• Compatible with OEM or aftermarket pads (same pad depth)
