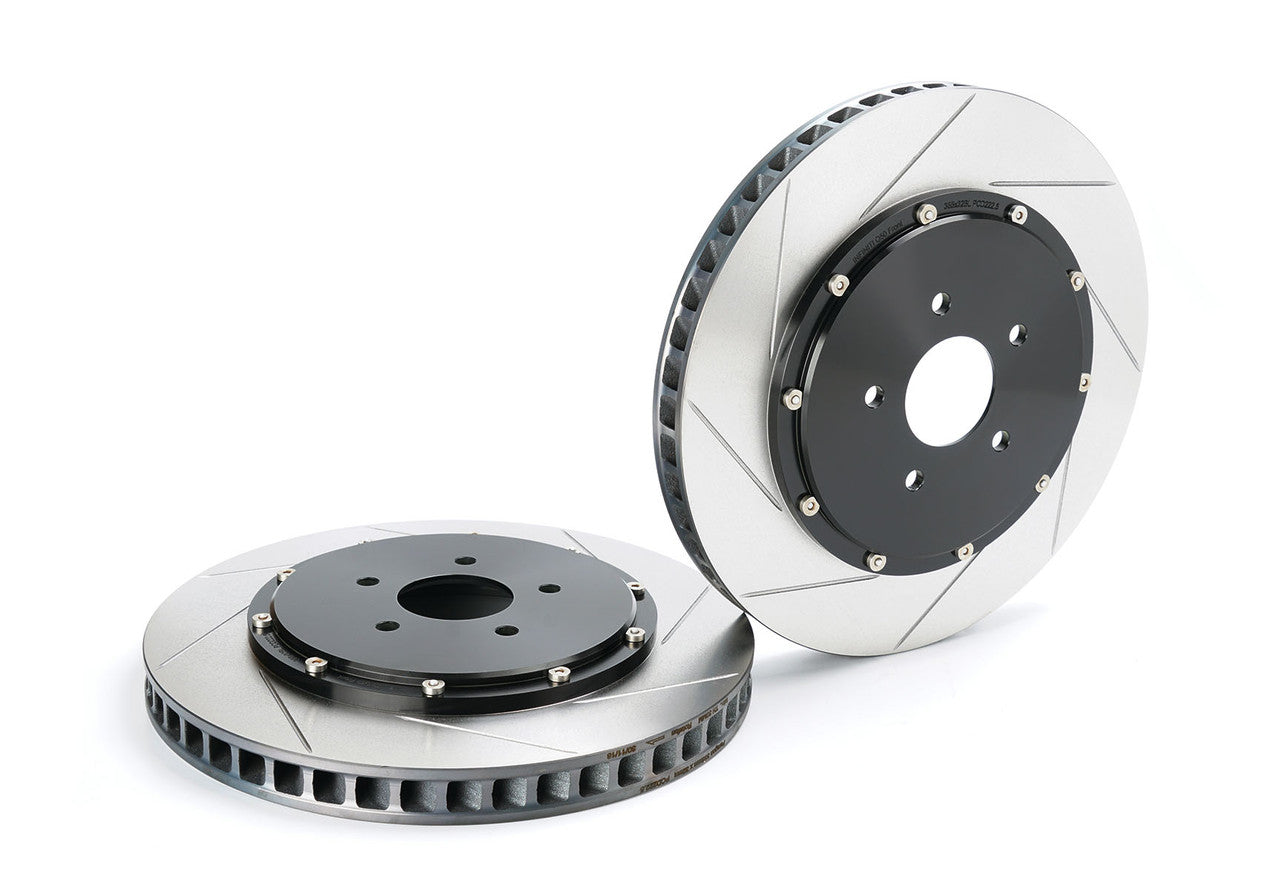

PARAGON 2-Piece Front Rotors – Nissan 370Z (Z34) / Nissan Z (RZ34) – 355 x 32mm
These PARAGON 2-piece front rotors replace the factory rotors on the Nissan 370Z (Z34) and Nissan Z (RZ34) with a lighter floating assembly made for track days and spirited road driving. Sold as a pair, each 355 x 32mm rotor joins a slotted cast-iron ring to an aluminium hat to cut unsprung weight and resist fade and judder over long sessions.
Choose a black hardcoat anodised hat or a clear hard anodised hat. The clear finish holds its colour under extreme heat and is the better pick for track use, while the dyed black finish can discolour once temperatures pass about 260°C.
Note: Bolts on with no modifications, works with the factory ABS and keeps the factory brake bias. Use OEM pads or aftermarket pads with the same pad depth. Installation by a professional is recommended.
Features
- Fully floating 2-piece design, long D-Bobbin 10-bolt mounting
- CM-250 high-carbon cast-iron rings, heat treated and CBN machined, run-out held within 0.03mm
- Directional vanes run up to 30% cooler than the factory rotors
- Slotted faces keep the pad contact surface clean and consistent, wet or dry
- CNC-machined 6061-T6 aluminium hats, Mil-spec Type III hard anodised
- Weight 8.95 kg each, about 3.2 kg lighter than the factory rotor
- Replaces OEM part 40206-JL00A
Pairs Well With
- PARAGON 2-Piece Rear Rotors – Nissan 370Z (Z34) / Nissan Z (RZ34) – 350 x 20mm
- PARAGON 6-Piston Front Big Brake Kit – Nissan Z (RZ34) / 370Z (Z34) / Infiniti G37 / Q50
- DIXCEL Front Brake Pads – Nissan 370Z (Z34) / Nissan Z (RZ34)
- DIXCEL Rear Brake Pads – Nissan 370Z (Z34) / Nissan Z (RZ34)
- Alcon Front Big Brake Kit - Nissan Z (RZ34) / 370Z (Z34) / Skyline (V36 / V37)
Need help confirming fitment? Contact our team at sales@chicaneaustralia.com.au.
Vehicle Compatibility
| Make | Model | Chassis | Years | Engine / Notes |
|---|---|---|---|---|
| Nissan | 370Z / 370Z Nismo | Z34 | - | Front; with OEM Akebono 14" Sport brakes |
| Nissan | Z | RZ34 | 2023+ | Front; with OEM Akebono 14" Sport brakes – not Z NISMO |
Product
- Brand
- Paragon
- Rotor size
- 355 x 32mm
- Hat material / finish
- 6061-T6 aluminium, Type III hard anodised (black hardcoat or clear hard anodised)
- Replaces OEM part
- 40206-JL00A
- Part number(s)
- P2R.023.355.320.18100.08.01.01.F, P2R.023.355.320.18100.08.01.02.F
Details
- Position
- Front
- Construction
- 2-piece, fully floating
- Ring material
- CM-250 high-carbon alloy cast iron, heat treated, CBN machined
- Mounting
- D-Bobbin (Long), 10-bolt
- Face / cooling
- Slotted, directional ventilation vanes
- Tolerances
- Run-out within 0.03mm, balanced within 2g
- Weight (per rotor)
- 8.95 kg (approx. 3.2 kg lighter than OEM)
Contents
- One pair of Paragon Performance 355mm x 32mm 2-piece rotor assemblies.
- Hat Material: Black hard coat/hard anodised 6061-T6 aerospace-grade aluminium.
- Bobbins: Stainless steel.
- Anti-Rattle Clips: Included.
- Assembly: Fully assembled and ready to install.
- Detailed installation manual.
