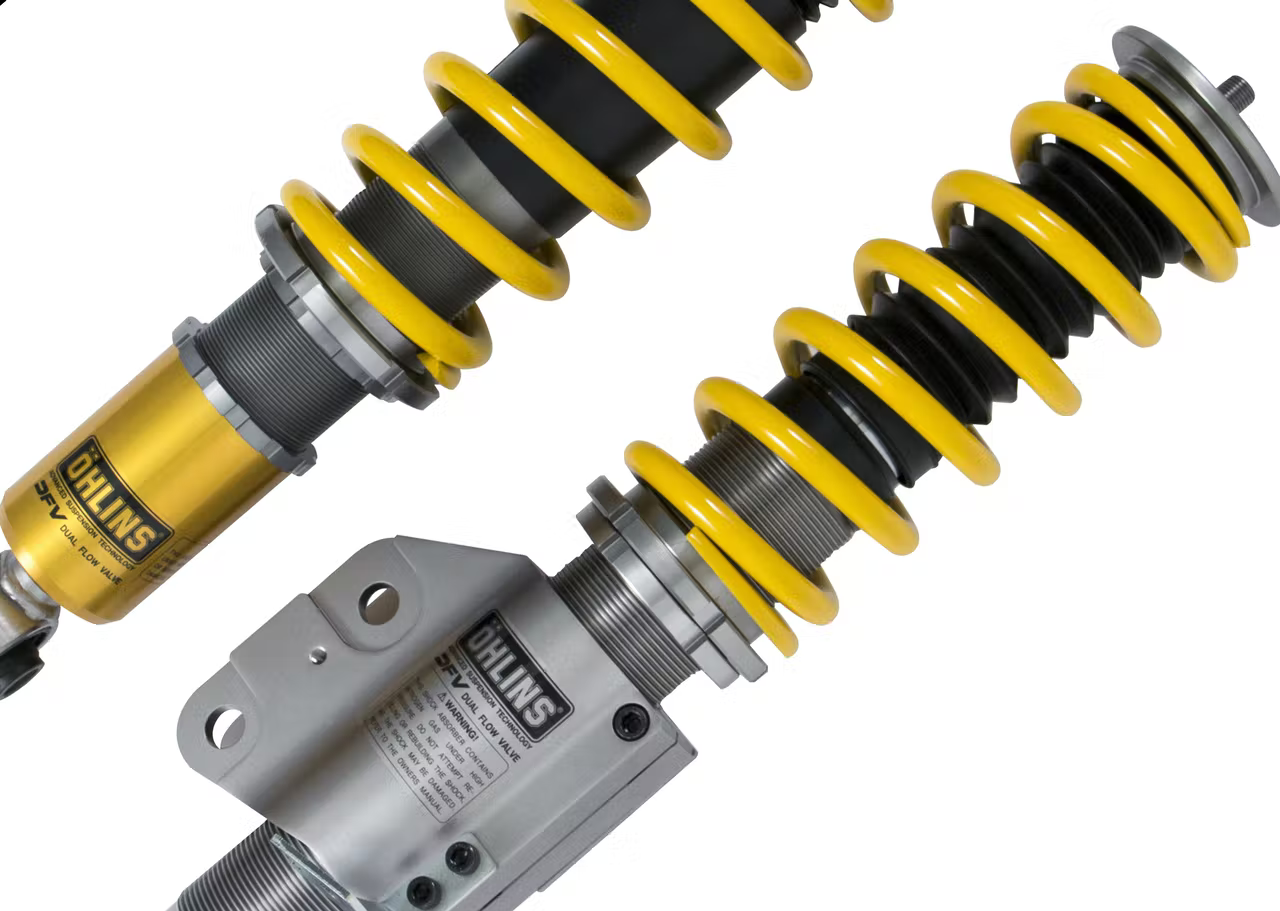

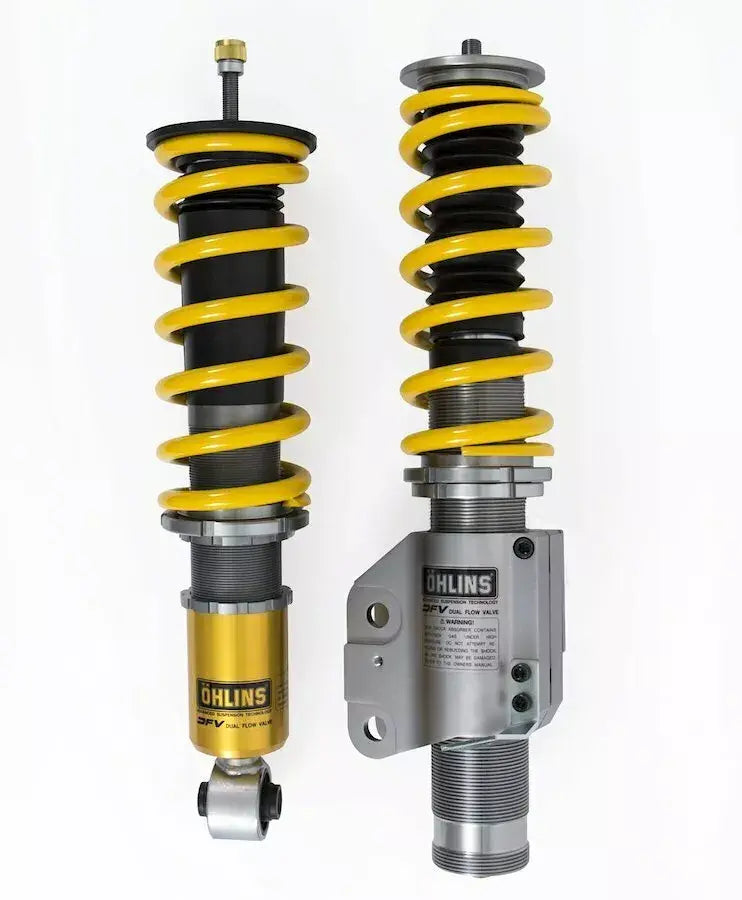

Öhlins R&T Coilovers – Subaru BRZ & Toyota GR86 (ZN8)

The Öhlins Road & Track Coilover Kit brings 40+ years of motorsport suspension innovation to your BRZ or 86. Engineered for the perfect balance of track precision and daily comfort, this setup is ideal for drivers who demand more from their chassis without sacrificing ride quality.

DFV Technology Explained
The Dual Flow Valve (DFV) system delivers consistent damping performance in both compression and rebound. When pushing through corners or encountering sudden bumps, DFV keeps the tyres planted and the car balanced. Switch from road to race mode by adjusting the single damping knob—perfect for spirited weekend drives or track days.

Key Features

• DFV (Dual Flow Valve) for consistent response

• Single adjuster: compression & rebound (25 clicks)

• Adjustable ride height and spring preload

• Fully rebuildable design

• ISO 9227 corrosion-resistant coating

• Backed by a 2-year warranty

Front Suspension Details

• McPherson strut, upside-down monotube design

• Ride height range: approx. 10–35mm lower than OEM

• Spring rate: 60 N/mm (≈ 6.1 kg/mm)

• Spring preload and damper length adjustable

• Compatible with OEM top mounts (Öhlins top mounts available separately)

Rear Suspension Details

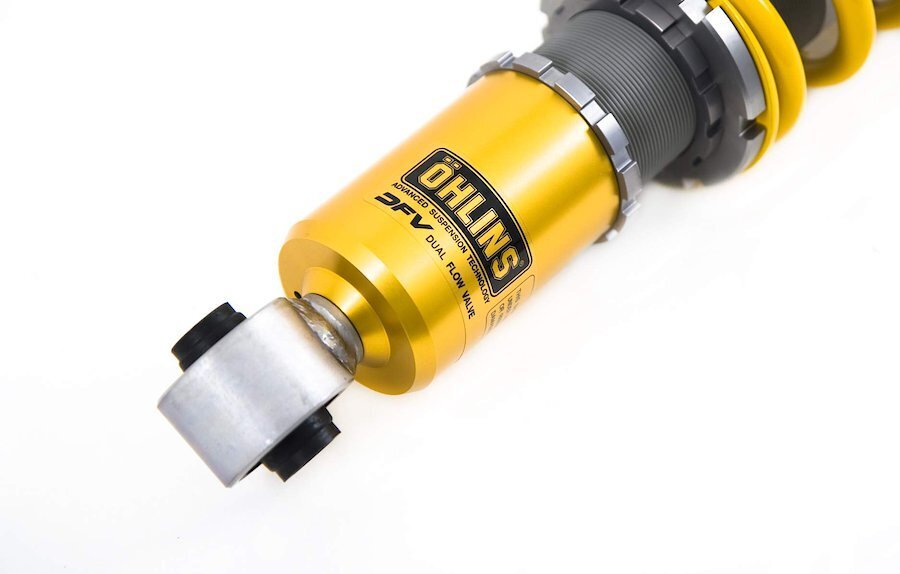

• Conventional aluminium monotube damper

• Ride height range: approx. 5–25mm lower than OEM

• Spring rate: 60 N/mm (≈ 6.1 kg/mm)

• Spring preload and damper length adjustable

• Compatible with OEM top mounts (Öhlins top mounts available separately)

Kit Contents

• Coilover suspension system with springs and mounting parts

• C-Spanner for spring adjustment

• Owner’s manual and installation instructions

Vehicle Fitment

• 2022+ Subaru BRZ (ZC6)

• 2022+ Toyota 86 (ZN6)
