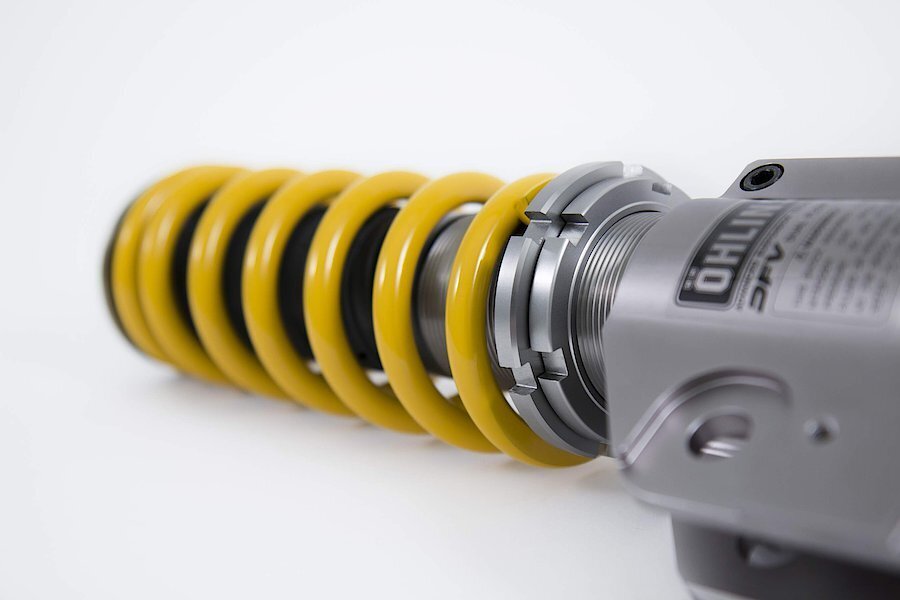

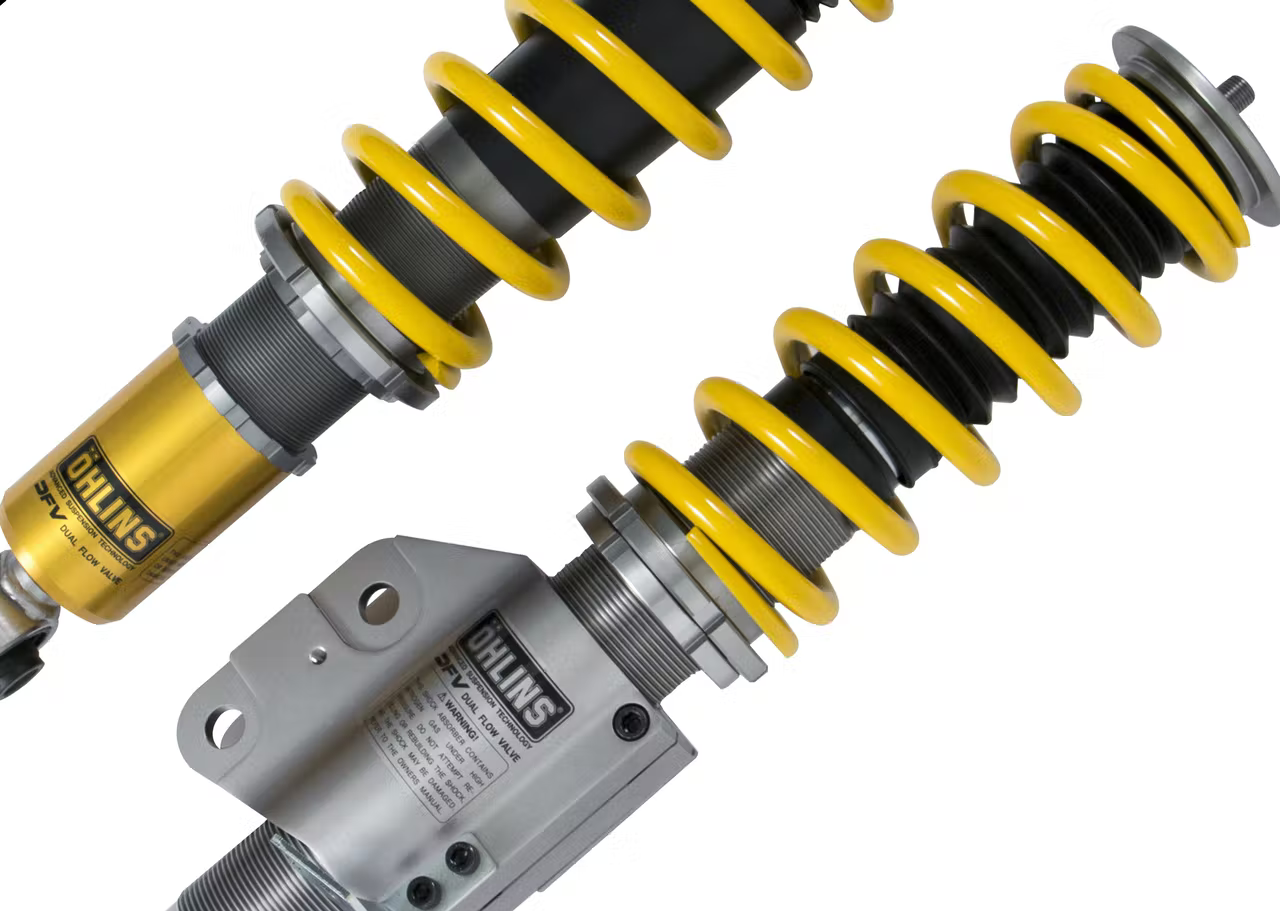

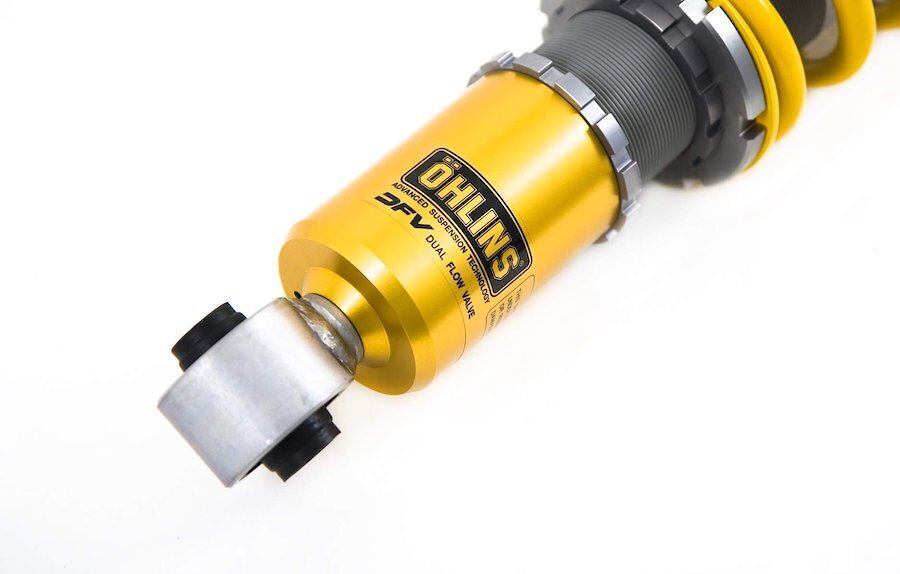

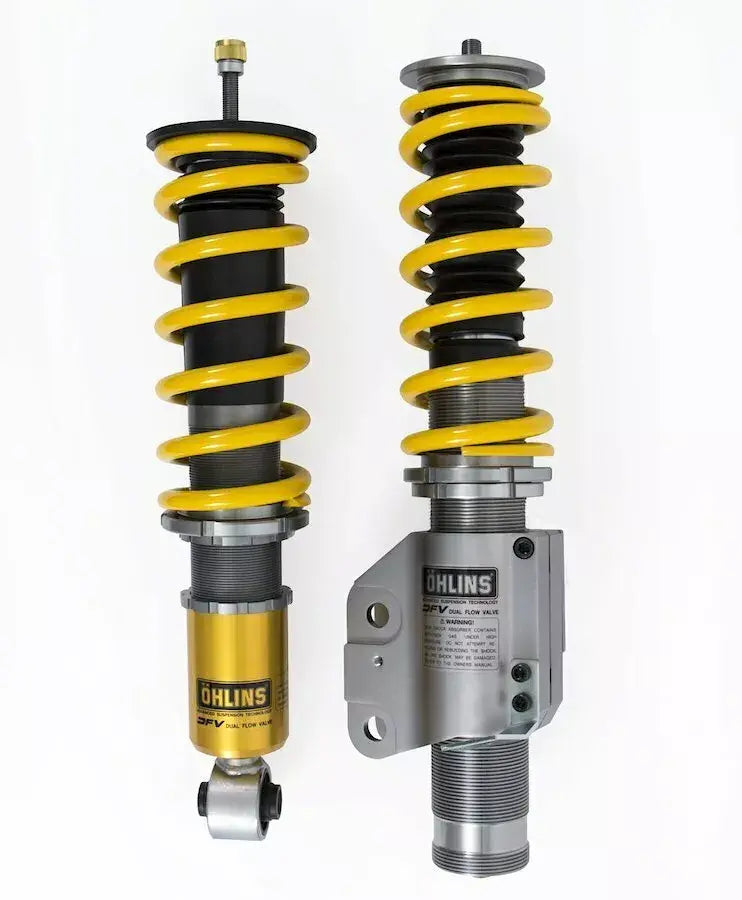

Öhlins R&T Coilovers – Subaru BRZ & Toyota 86 (ZN6 / ZN8)

The Öhlins Road & Track Coilover Kit brings 40+ years of racing suspension experience to the street. Designed for the first-gen Toyota 86 and Subaru BRZ, this kit delivers improved grip, control and response without sacrificing day-to-day comfort.

Whether you're commuting, corner carving, or heading to a track day, the DFV (Dual Flow Valve) technology lets you adapt the ride to suit your needs. Just turn the single adjustment knob to switch between road and race settings—it's that simple.

Key Features

• DFV (Dual Flow Valve) for road and track performance

• Rebuildable dampers for long-term tuning

• ISO 9227 salt spray corrosion tested

• Height and preload adjustable

• 2-year limited warranty

Front Suspension

• McPherson strut, upside-down monotube design

• Single adjuster for compression and rebound

• Separate ride height and spring preload adjustment

• Lowering range: approx. 10–35mm

• Spring rate: 50 N/mm (≈ 5.1 kg/mm)

• Uses original top mounts (Öhlins top mounts available separately)

Rear Suspension

• Conventional monotube shock absorber

• Single adjuster for compression and rebound

• Separate ride height and spring preload adjustment

• Lowering range: approx. 5–25mm

• Spring rate: 50 N/mm (≈ 5.1 kg/mm)

• Uses original top mounts (Öhlins top mounts available separately)

Included

• Complete coilover suspension kit

• Springs and mounting hardware

• C-Spanner (for spring preload adjustment)

• Öhlins owners manual and setup instructions

Vehicle Fitment

• 2012–2021 Subaru BRZ (ZC6)

• 2012–2021 Toyota 86 (ZN6)
