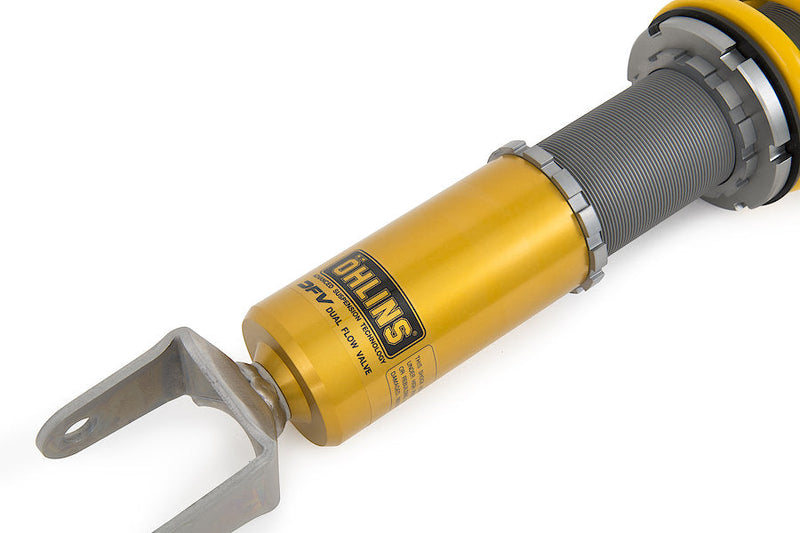

Ohlins Road & Track Coilovers - Mazda MX-5 (ND) / Fiat 124 Spider
Öhlins brings over 40 years of motorsport engineering to this street focused coilover kit for the Mazda MX-5 and Fiat 124 Spider. Built around Öhlins' proprietary Dual Flow Valve (DFV) technology, the Road & Track series delivers genuine race car damping response while keeping the ride compliant enough for daily driving.
This listing covers the Mazda MX-5 (ND) including RF variants, and the Fiat 124 Spider, under SKU MAS MP00S2. Front and rear coil springs are included as standard with the kit — no separate spring purchase required.
Specifications
- Part Number: MAS MP00S2
- Front lowering range: approx. 20mm below standard
- Rear lowering range: approx. 15mm below standard
- Damping adjustment: single bleed adjuster, front and rear
- Front spring rate: 100 N/mm (Part No. 48010-31), included
- Rear spring rate: 40 N/mm (Part No. 48010-07), included
- Separate front preload and rear preload adjusters
- Dustcovers included front and rear
- Corrosion tested to ISO 9227 salt spray standard
- Rebuildable construction for long term serviceability
- 2 year worldwide limited warranty
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your MX-5 or 124 Spider's model year and trim before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Fiat | 124 Spider | - | |
| Mazda | MX-5 | ND5RC/NDERC (Pre-Facelift) | - |
| Mazda | MX-5 | ND5RC/NDERC (Facelift) | - |
Technical Specifications
| Spec | Value |
|---|---|
| Chassis Code | ND, RF |
| Vehicle Fitment | Mazda MX-5 ND/RF (2016+) & Fiat 124 Spider |
| Damping Technology | DFV (Dual Flow Valve) |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Lowering Range | Approx. 20mm below standard |
| Rear Lowering Range | Approx. 15mm below standard |
| Front Spring Rate | 100 N/mm (Part No. 48010-31) — included |
| Rear Spring Rate | 40 N/mm (Part No. 48010-07) — included |
| Springs Included | Yes — front & rear springs included |
| Front Shock Design | Conventional shock absorber |
| Front Adjusters | Single bleed adjuster, spring preload adjuster |
| Front Dustcovers | Included |
| Rear Shock Design | Conventional shock absorber |
| Rear Adjusters | Single bleed adjuster, separate spring preload adjuster |
| Rear Dustcovers | Included |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
No instructions available for this product.
