Nitto Stroker Kit Mitsubishi 4B11T Lancer Evolution X (CZ4A) / Lancer Ralliart (CJ)

Nitto Stroker Kit - Mitsubishi 4B11T - Lancer Evolution X (CZ4A) / Lancer Ralliart (CJ)

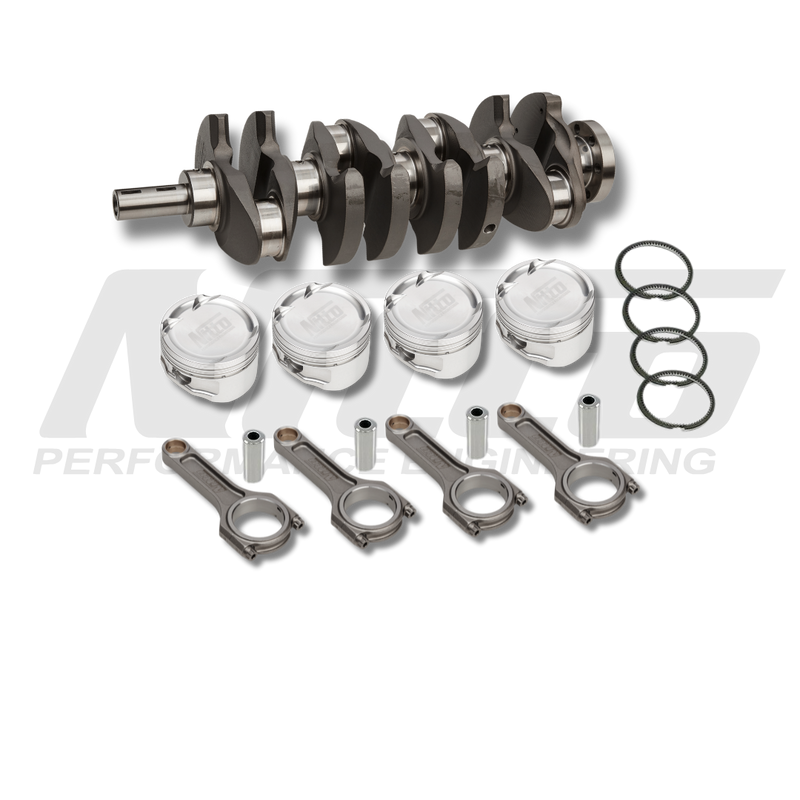

A complete Nitto 2.2L rotating assembly for the Mitsubishi 4B11T in the Lancer Evolution X and Lancer Ralliart. It adds capacity for circuit and street use while keeping the engine able to rev, and combines a 4340 billet crank, 4340 billet rods and CP-made forged pistons.

Choose the rod type, H-beam for solid street builds or I-beam for higher power, and the piston bore, 86.5 mm (+0.020") or 87.0 mm (+0.040"). Every kit uses a 93 mm stroke crank and 143.75 mm rods.

The pistons are made by CP Carrillo to Nitto's specification from low-silicon 2618 aluminium in Turbo HD forging, with PVD rings, 9310 wrist pins and accumulator grooves. The rods are double-melted 4340 billet with 3/8" ARP 2000 bolts. The 4340 billet crank has knife-edged counterweights to cut through crankcase oil mist and help the engine rev freely.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• 4340 billet crankshaft, 93 mm stroke, knife-edged and nitrided
• Double-melted 4340 billet H-beam or I-beam rods, 143.75 mm
• 3/8" ARP 2000 rod bolts
• CP-made 2618 forged pistons in Turbo HD forging
• PVD ring set and 9310 wrist pins

Kit Contents

• 1 x Nitto 4340 billet crankshaft (93 mm stroke)
• 4 x Nitto connecting rods (H-beam or I-beam) with ARP 2000 bolts
• 4 x Nitto forged pistons with PVD rings and 9310 wrist pins

Warranty

Nitto parts are made for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Under Nitto's limited warranty a defective part will be repaired or replaced at Nitto's option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
