Nitto H-Beam Connecting Rods Nissan SR20DET Silvia / 180SX / 200SX (S13 / S14 / S15)

Nitto H-Beam Connecting Rods - Nissan SR20DET - Silvia / 180SX / 200SX (S13 / S14 / S15)

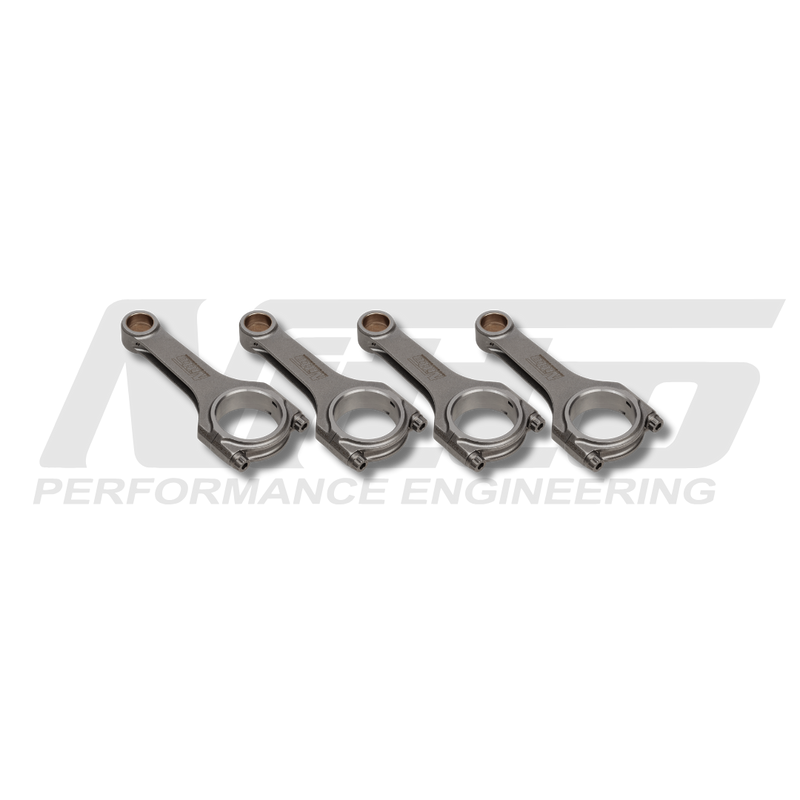

Nitto's SR20 H-beam rods are a forged 4340 upgrade for the SR20DET in the S13 Silvia and 180SX and the S14 and S15 200SX. They suit street, drift and weekend track cars that need a stronger rod than factory without the cost of an I-beam.

Nitto H-beams are made from double-melted 4340 forged billet and machined as a one-piece forging. They use 3/8" ARP 2000 rod bolts and silicon bronze pin bushes.

Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.

Features

• Double-melted 4340 billet steel, one-piece forging
• X-ray and sonic grade tested, quenched, heat treated and shot peened (38 HRC)
• Doweled cap for accurate cap alignment
• Silicon bronze pin end bushes
• ARP 2000 rod bolts, with ARP Custom Age 625+ available as an upgrade
• Balanced to within ±1 g per set; big and small end bores sized to ±0.0001" on Sunnen honing equipment

Kit Contents

• 4 x Nitto H-beam connecting rods with 3/8" ARP 2000 rod bolts

Warranty

Nitto parts are built for racing and off-road use. Inspect every part during assembly and blueprinting, and contact us before fitting if anything measures outside tolerance. Nitto will repair or replace a faulty part at its discretion, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
