Nitto Forged Pistons - Nissan RB25DET - Skyline (R33) / Stagea (WC34)

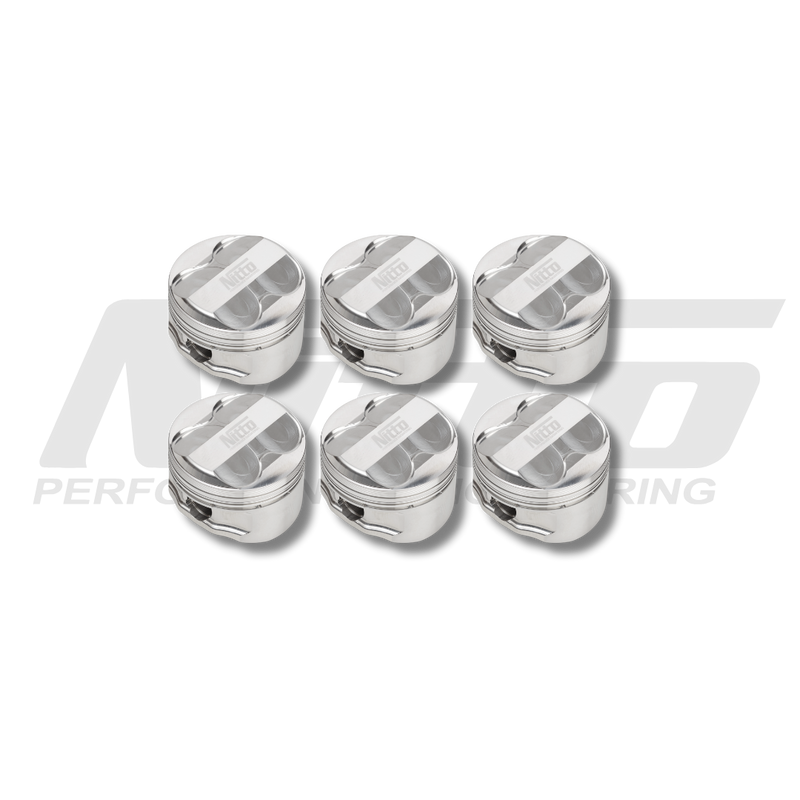

A set of six forged pistons for the Nissan RB25DET as fitted to the R33 Skyline GTS-T and early (pre-NEO) Stagea. They suit a rebuilt standard-stroke bottom end, from a strong street car through to a drag or circuit build running serious boost.
Choose the bore size to suit your block. 86.5 mm is a 0.020" oversize with a +19 cc dome; 87.0 mm is a 0.040" oversize with a +18 cc dome. Have your engine builder measure the bores before ordering.
Every Nitto piston is produced by CP Carrillo in the USA to Nitto's own specification. They are forged from CP's low-silicon 2618 alloy in the Turbo HD forging, paired with a PVD-coated ring set for tight bore sealing under boost, and fitted with CP's 9310 wrist pins, which are Rockwell tested, case hardened and cryogenically treated.
Note: Installation by a professional is recommended. Engine internals must be measured and set up by a qualified engine builder.
Features
- Forged from low-silicon 2618 aluminium, Turbo HD forging
- Made by CP Carrillo to Nitto's specification
- PVD-coated ring set for strong bore sealing and low friction
- 9310 wrist pins (0.827" diameter, 2.500" long), 100% Rockwell tested, case hardened and cryo treated
- Forced double pin oiling to keep the wrist pin lubricated
- Anti-detonation grooves to help protect the top ring
- Accumulator grooves to reduce top ring flutter and improve ring seal
Warranty
Nitto parts are made for racing and off-road use. Check every part during assembly and blueprinting, and contact us before fitting if anything measures out of tolerance. Nitto will repair or replace a defective part at its option, and any modification voids the warranty. Full terms: Nitto limited warranty (PDF).
Pairs Well With
- Nitto H-Beam Connecting Rods - Nissan RB25DET / RB26DETT - Skyline / Skyline GT-R (R32 / R33 / R34) / Stagea (WC34)
- Nitto I-Beam Connecting Rods - Nissan RB25DET / RB26DETT - Skyline / Skyline GT-R (R32 / R33 / R34) / Stagea (WC34)
- Nitto DBS Metal Head Gasket - Nissan RB25DET - Skyline (R33) / Stagea (WC34)
- Nitto Full Gasket Kit - Nissan RB25DET - Skyline (R33) / Stagea (WC34)
- Nitto Oil Pump - Nissan RB25DET / RB26DETT / RB30 - Skyline / Skyline GT-R (R31–R34) / Stagea (WC34) / Commodore (VL)
- Siruda Grommet Metal Head Gasket - Nissan Skyline (R33 / R34) / Stagea (WC34) - RB25DET
Shop more: Nitto
Need help choosing parts? Contact our team at sales@chicaneaustralia.com.au.
Product
- Brand
- Nitto
- Part number(s)
- NIT-CP-RB2520, NIT-CP-RB2540
Details
- Product
- Forged pistons (set of 6)
- Engine
- Nissan RB25DET
- Bore
- 86.5 mm (+0.020") or 87.0 mm (+0.040")
- Dome
- 86.5 mm: +19 cc; 87.0 mm: +18 cc
- Piston material
- 2618 aluminium
- Forging
- Turbo HD
- Ring type
- PVD coated
- Pin diameter
- 0.827"
- Pin length
- 2.500"
- Pin wall
- 0.200" standard (0.250" optional)
- Pin material
- 9310 standard (300M optional)
- Warranty
- Nitto limited warranty (racing use)
- Instructions
- Nitto installation notes (link below)
Contents
1 x set of 6 Nitto forged pistons with PVD-coated ring sets and 9310 wrist pins
Vehicle fitment
Universal fit: this part suits any car. Check the specifications above for sizes and fittings.
