Mishimoto Performance Intercooler Kit BMW M3 (G80)

Mishimoto Performance Intercooler Kit - BMW M3 (G80)

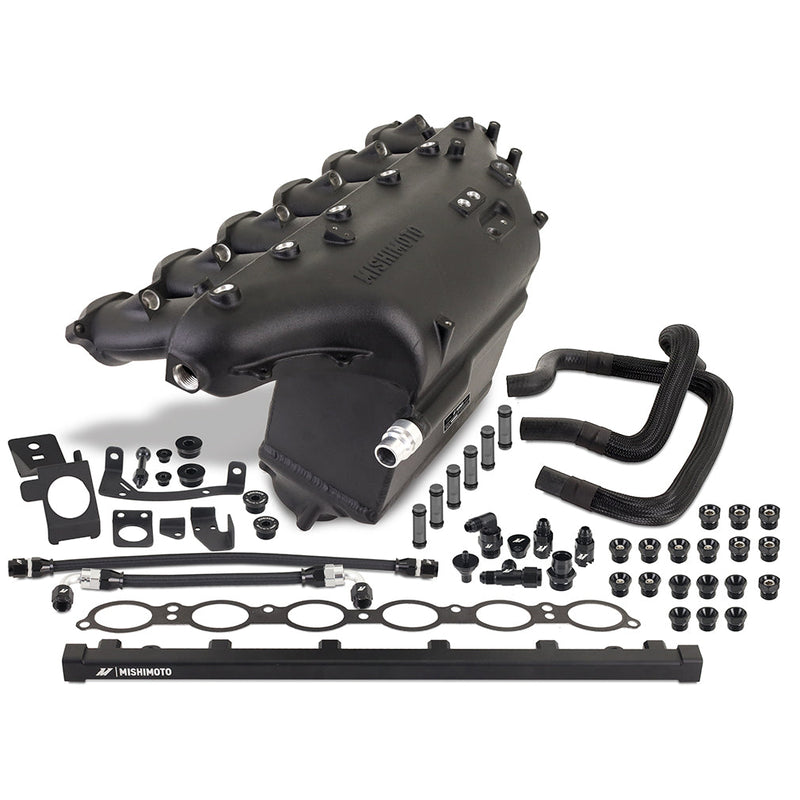

Mishimoto builds this charge air cooler manifold to fix a known weak point in the factory unit fitted to the BMW M3 (G80). Where the stock tube-and-fin core is crimped onto a thermoplastic plenum, Mishimoto uses a cast aluminium, TIG-welded design with a bar-and-plate core built for serious boost.

This listing covers the BMW M3 (G80) fitted with the S58 engine, SKU MMINT-G80-21BK.

Note: The kit includes an optional fuel rail for race use only. It carries a tamper-proof sticker and should only be removed if the vehicle is no longer used on public roads. Check local regulations before removing it.

Specifications

• Cast aluminium, TIG-welded manifold with bar-and-plate core
• Core 33% larger than the factory unit
• Average 14% improved airflow per cylinder
• Intake air temperatures as low as 11°C above ambient under load
• Rated to withstand boost pressures over 4.1 bar (60 psi)
• CFD-designed lower plenum with internal diverter for even cylinder flow
• Cast, CNC-machined runners with O-ring grooves for factory seals
• Fibre gasket included for heat insulation
• Optional race use fuel rail included
• Install difficulty rated 4 out of 5

Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your vehicle's model year and engine configuration before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
