KOYORAD N-FLO Racing Radiator Toyota 86 / GR86 (ZN6 / ZN8) / Subaru BRZ (ZC6 / ZD8)

KOYORAD N-FLO Racing Radiator - Toyota 86 / GR86 (ZN6 / ZN8) / Subaru BRZ (ZC6 / ZD8)

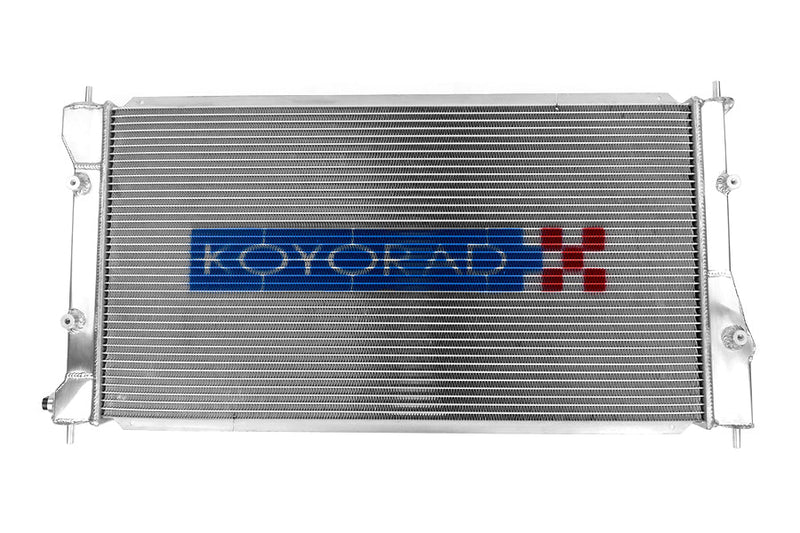

KOYORAD's N-FLO racing radiator replaces the factory radiator in the Toyota 86, GR86 and Subaru BRZ. It's all-aluminium, with a 36mm high-density two-row core from KoyoRad's VH series, and N-FLO welded internal partitions that send the coolant through the core more than once. The core is Nocolok furnace-brazed and the tanks are hand Heliarc (TIG) welded.

It suits the 2.0-litre Toyota 86 (ZN6) and Subaru BRZ (ZC6), and the 2.4-litre Toyota GR86 (ZN8) and Subaru BRZ (ZD8).

On 2.0-litre ZN6 and ZC6 cars, the factory filler neck can be upgraded to the KOYORAD aluminium filler neck, which takes the SK-C13 deep-plunger cap. Want a thicker core? The KOYORAD 48mm-core racing radiator suits the same cars.

Note: KoyoRad's catalogue lists this radiator for manual cars, so check with us before ordering one for an automatic. Installation by a professional is recommended.

Features

• 36mm high-density two-row core (KoyoRad VH series)
• N-FLO internal partitions route the coolant through the core more than once
• Nocolok furnace-brazed tubes, fins, headers and brackets
• Hand Heliarc (TIG) welded aluminium tanks
• Built to the factory mounting points
• One radiator for both the FA20 and FA24 generations

Pairs Well With

• KOYORAD Aluminium Filler Neck - Subaru BRZ (ZC6) / Toyota 86 (ZN6)
• Mishimoto Silicone Radiator Hose Kit - Subaru BRZ (ZC6) / Toyota 86 (ZN6)
• Mishimoto Performance Thermostat - Subaru BRZ (ZC6) / Toyota GR86 (ZN8) / GT86 (ZN6) MY17-20 - 76°C
• PERRIN Oil Cooler Kit - Subaru BRZ (ZC6) / Toyota 86 (ZN6)
• PERRIN Oil Cooler Kit - Subaru BRZ (ZD8) / Toyota GR86 (ZN8)

Need help choosing the right radiator for your 86 or BRZ? Contact our team at sales@chicaneaustralia.com.au.
