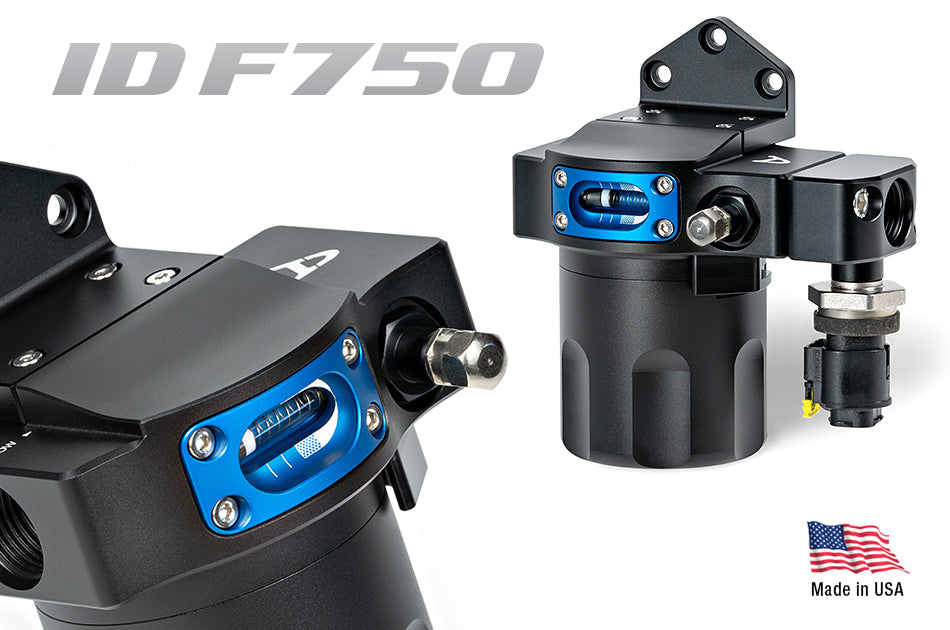

Injector Dynamics IDF750 Fuel Filter Black

Injector Dynamics IDF750 Fuel Filter – Black

The Injector Dynamics F750 was the first performance fuel filter designed to meet OE filter requirements, specifically Bosch's specification for protecting electronic fuel injectors. It came out of Injector Dynamics' own work on improving injector service life.

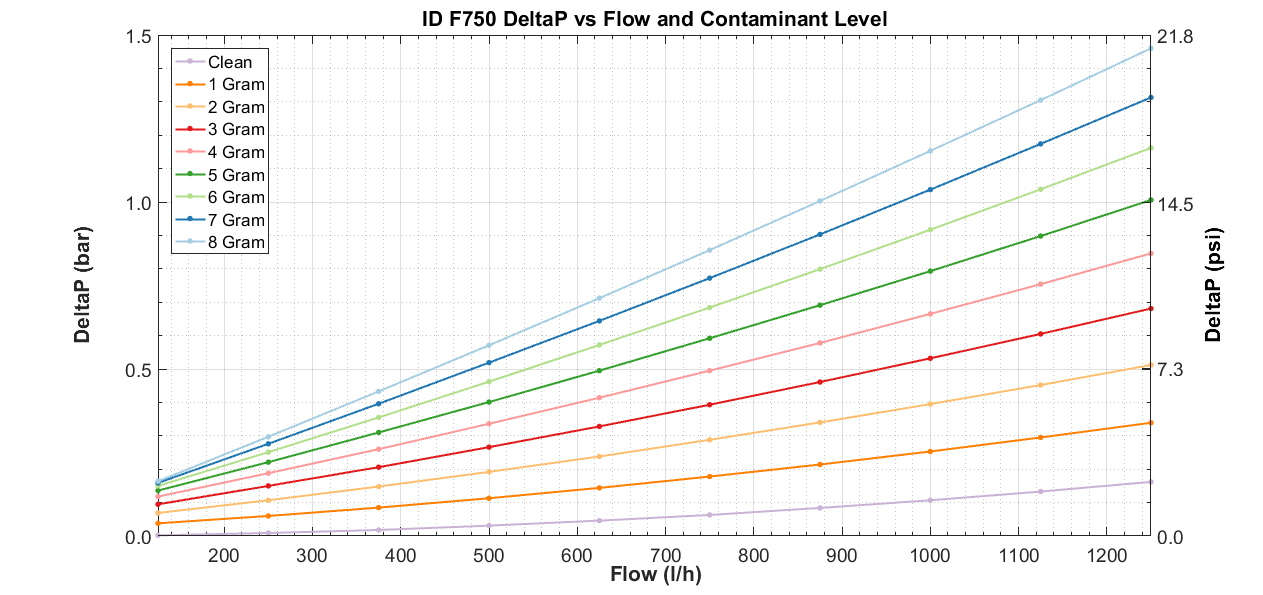

It flows 750 L/h at a 1.1 psi pressure drop (1,000 L/h at 1.9 psi) and holds about five grams of contaminant, roughly a teaspoon, before the element needs replacing at 750 L/h. A Delta P indicator shows when the element is getting restricted, so you can change it before it causes a problem.

Injectors are machined to tolerances measured in microns, and very small particles can wear or ruin them. Bosch specifies a filter that captures at least 87% of particles at 5 microns and 100% at 35 microns (a human hair is roughly 75 microns). Injector Dynamics recommends fitting the filter after the pump and as close to the fuel rail as practical, so as little of the system as possible is unfiltered.

Note: Installation by a professional is recommended.

Features

• Meets Bosch injector filtration spec (87% at 5 microns, 100% at 35 microns)
• Delta P indicator shows element condition
• Spin-on housing with safety latch that clicks in and cannot spin off
• Schrader valve for pressure checks, draining or relieving pressure
• Modular bracket: 90°, straight, reverse 90° or roll-bar tube mount
• Optional pressure / temperature sensor block

Pairs Well With

• F750 pressure / temperature sensor block
• F750 replacement element
• F750 o-ring kit
• Injector Dynamics fuel injectors: flow-matched sets from 1050 to 2600cc with published tuning data
