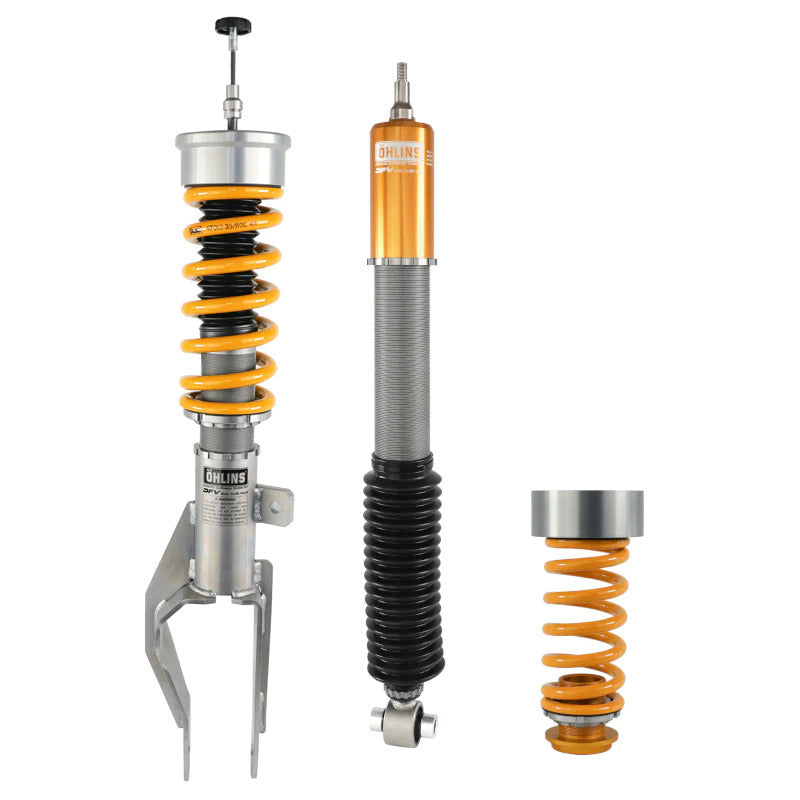

Öhlins Road & Track Coilovers - Tesla Model 3 (RWD/LR) / Model Y (Long Range)
Built on more than 40 years of motorsport development, Öhlins Road & Track coilovers bring genuine race derived damping to the Tesla Model 3 and Tesla Model Y. The proprietary DFV (Dual Flow Valve) technology delivers consistent compression and rebound control, giving sharp turn in response without the harsh ride typical of aftermarket coilovers.
This listing covers the Tesla Model 3 (RWD/LR) and Tesla Model Y (Long Range), including single and dual motor configurations. Two tunes are available — Road & Track (SKU TES MA10S1) and the Street Tuned/Comfort variant (SKU TES MA00S1) — selectable via the options on this listing page.
Key Features
- DFV damping technology, front and rear
- Conventional shock absorbers with single bleed adjuster
- Height adjustable, approx. 5-30mm lowering range
- Complete kit — springs, C-spanner and mounting hardware included
- Rebuildable damper construction
- ISO 9227 salt spray corrosion tested
- 2 year limited warranty
- Uses original top mounts
Vehicle compatibility, part numbers, and fitment notes are provided in the tabs above. Please confirm your Tesla's motor configuration and model year before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Tesla | Model 3 | RWD/LR | - |
| Tesla | Model Y | Long Range | - |
Technical Specifications
| Spec | Value |
|---|---|
| Part Number (Road & Track) | TES MA10S1 |
| Part Number (Road & Track Street Tuned / Comfort) | TES MA00S1 |
| Manufacturer | Öhlins |
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Recommended Front Spring (TES MA10S1) | 47010-35 (110 N/mm) |
| Recommended Rear Spring (TES MA10S1) | 47040-23 (120 N/mm) |
| Recommended Spring (TES MA00S1) | 49250-19 (70 N/mm) |
| Lowering Range | Approx. 5–30 mm below standard (front & rear) |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — complete kit with springs & accessories |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year limited warranty |
| Front Preload Adjustment | Spring preload adjuster |
| Rear Preload Adjustment | Separate spring preload adjuster |
| Kit Contents | Complete coilover kit with springs and all mounting parts, C-spanner for spring preload adjustment, owner's manual and mounting instructions, Öhlins sticker set |
