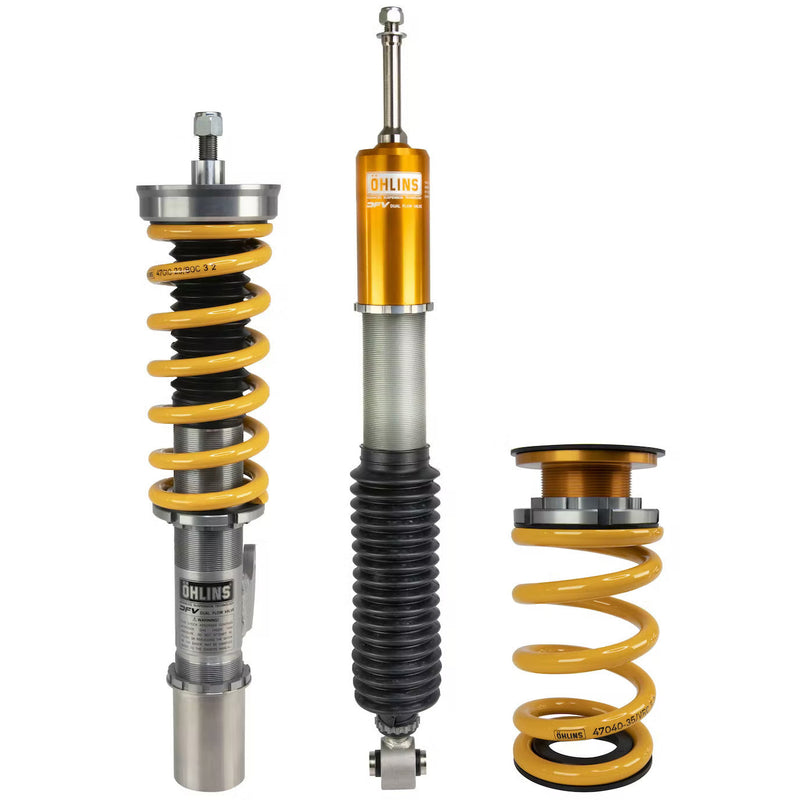

Öhlins Road & Track Coilovers - Mercedes-AMG A45 (W177)
Öhlins brings over 40 years of motorsport engineering to this street focused coilover kit for the Mercedes-AMG A45 (W177). Built around Öhlins' proprietary Dual Flow Valve (DFV) technology, the Road & Track series delivers genuine race car damper response while keeping daily comfort closer to an OEM strut than a typical coilover.
This listing covers the Mercedes-AMG A45 (W177), 2019 onwards, SKU MES MV10S1. The kit uses a McPherson front strut and conventional rear shock with front and rear coil springs included.
Note: vehicles fitted from the factory with electronic adjustable suspension require an Öhlins cancellation kit (part no. 35020-35), sold separately.
Specifications
- Technology: DFV (Dual Flow Valve)
- Front damper: McPherson strut, single bleed adjuster
- Rear damper: Conventional shock, single bleed adjuster
- Front spring rate: 80 N/mm (included)
- Rear spring rate: 110 N/mm (included)
- Front lowering: approx. 20mm below standard
- Rear lowering: approx. 15mm below standard
- Uses original top mounts, front and rear
- Weight saving: approx. 10kg vs original suspension
- Rebuildable damper construction
- Corrosion tested to ISO 9227
- Warranty: 2 year limited warranty
Kit Contents
- Complete coilover kit with springs and mounting hardware
- C-spanner for spring preload adjustment
- Owner's manual and mounting instructions
- Öhlins sticker set
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please confirm your A45's model year and whether it's fitted with factory adjustable suspension before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Mercedes-AMG | A45 | W177 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Technology | DFV — Dual Flow Valve |
| Front Damper Type | McPherson strut |
| Rear Damper Type | Conventional shock absorber |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Front Spring Rate | 80 N/mm — included |
| Rear Spring Rate | 110 N/mm — included |
| Front Lowering | Approx. 20mm below standard |
| Rear Lowering | Approx. 15mm below standard |
| Top Mounts | Use with original top mounts (front & rear) |
| Springs Included | Yes — front & rear springs included |
| Weight Saving | Approx. −10 kg vs original suspension |
| Rebuildable | Yes |
| Corrosion Testing | ISO 9227 salt spray tested |
| Warranty | 2 year limited warranty |
| Cancellation Kit Part No (if required) | 35020-35 |
No instructions available for this product.
