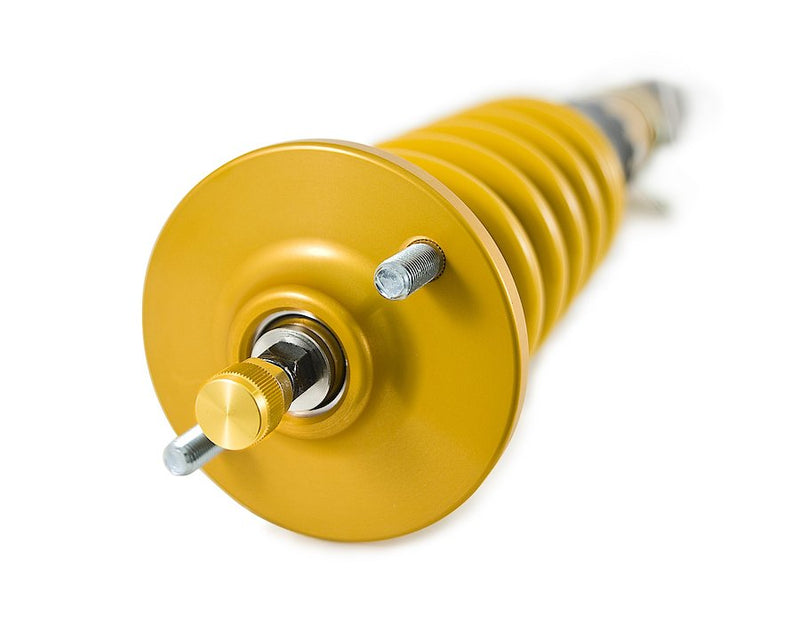

Öhlins Road & Track Coilovers - Honda S2000 (AP1/AP2)
Öhlins brings over 40 years of motorsport engineering to this street ready coilover kit for the Honda S2000. The Road & Track range uses Öhlins' proprietary DFV (Dual Flow Valve) technology, giving consistent damping on both compression and rebound so the tyre stays planted over bumps while ride quality stays closer to an OEM strut than a typical coilover.
This listing covers the Honda S2000 AP1 and AP2, built from 1999 to 2009. SKU HOS MI21S2 includes matched front and rear springs, and the kit is fully rebuildable for long term serviceability.
Specifications
- Part Number: HOS MI21S2
- Front/Rear Damper Type: Conventional shock absorber
- Front Spring Rate: 110 N/mm (included)
- Rear Spring Rate: 70 N/mm (included)
- Lowering Range: Approx. 25mm below standard, front and rear
- Damping Adjustment: Single bleed adjuster, front and rear
- Ride height adjustment via threaded lower flange, spring seat position maintained
- Preload adjustment with included C-spanner
- Corrosion tested to ISO 9227
- Warranty: 2 year worldwide limited warranty
- Kit includes springs, mounting hardware, C-spanner, owner's manual and Öhlins sticker set
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your S2000's year and configuration are confirmed before ordering.
Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
Vehicle Compatibility
| Make | Model | Chassis | Engine |
|---|---|---|---|
| Honda | S2000 | AP1/AP2 | - |
Technical Specifications
| Spec | Value |
|---|---|
| Front Damper Type | Conventional shock absorber |
| Rear Damper Type | Conventional shock absorber |
| Front Spring Rate | 110 N/mm (Part No. 48010-35) — included |
| Rear Spring Rate | 70 N/mm (Part No. 48010-19) — included |
| Front Lowering Range | Approx. 25mm below standard |
| Rear Lowering Range | Approx. 25mm below standard |
| Damping Adjustment | Single bleed adjuster (front & rear) |
| Ride Height Adjustment | Threaded lower flange, individual front/rear adjustment |
| Spring Preload Adjustment | Yes, via included C-spanner |
| Corrosion Testing Standard | ISO 9227 salt spray tested |
| Warranty | 2-year worldwide limited warranty |
| Rebuildable | Yes |
| Front Spring Part No. | 48010-35 |
| Rear Spring Part No. | 48010-19 |
| Dustcovers | Included (front & rear) |
No instructions available for this product.
