HKS R-Type Intercooler & Piping Kit – Honda Civic Type R FL5 (2023+)

The HKS R-Type Intercooler & Piping Kit is designed to dramatically improve cooling performance on the Honda Civic Type R FL5. With an enlarged core and high-efficiency piping, this system helps reduce intake air temperatures, support higher boost levels, and maintain consistent power delivery during demanding driving conditions.

Key Features:
• Direct fit for Honda Civic Type R FL5 (2022+)
• 22.4% increase in core surface area vs. stock intercooler
• High-efficiency 695 x 178 x 100 mm aluminum core with optimized fin density
• Enlarged, smooth-bore aluminum piping reduces pressure loss and improves throttle response
• Aluminum pipes feature a mirror-polished finish and cast sections are stamped with HKS logos
• Designed to maintain stability under high boost where stock rubber hoses may expand
• Complete system supports stock and upgraded turbo setups

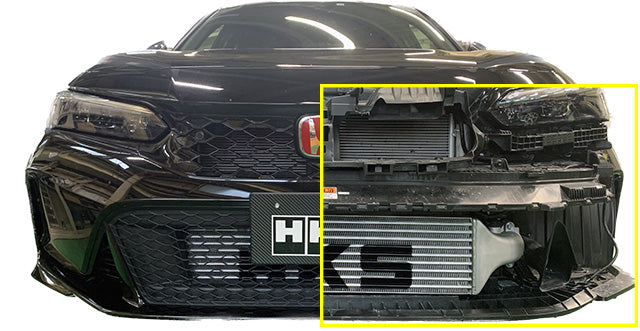

Note: Installation requires minor trimming to the bumper air guide and relocation of the outside air temperature sensor. No reinforcement cutting is required. Some shaving of the vehicle-side bracket is needed for piping clearance. Estimated install time: ~4 hours.
