Full Race High Pressure Fuel Pump Honda Civic Type R (FK8/FL5)

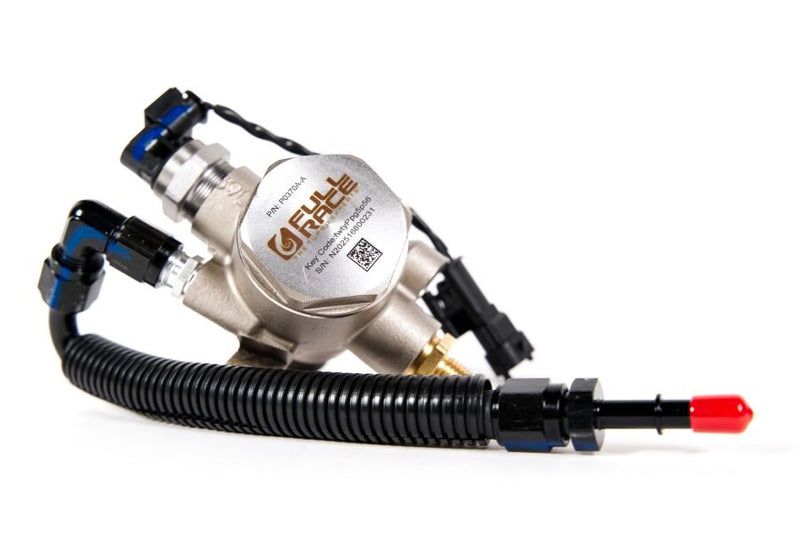

Full Race High Pressure Fuel Pump - Honda Civic Type R (FK8/FL5)

Developed in partnership with Nostrum High Performance, the Full Race High Pressure Fuel Pump is the largest capacity HPFP available for any Honda application. Built for enthusiasts who are serious about pushing their Honda Civic Type R beyond stock fuelling limits, this pump flows 68% more fuel than the OEM unit — all without requiring an expensive 5mm camshaft lobe swap.

This listing covers the Full Race HPFP kit (SKU: P0370A-A), compatible with the following vehicles:
- Honda Civic Type R FK8 (2017–2021)
- Honda Civic Type R FL5 (2023+)

Important: This pump is designed for use with the standard OEM 4mm HPFP camshaft lobe. It is not recommended for use with oversized 5mm aftermarket camshaft lobes, as this may cause fuel pressure control issues. A FlashPro or other tunable ECU is required to take full advantage of this pump.

Key Features

• 68% more fuel flow than the stock pump — the largest displacement HPFP available for Honda applications
• Supports up to 830 wheel horsepower on petrol and 700 wheel horsepower on E85 (based on 7000 RPM power peak)
• Maximum operating pressure: 250 bar (3600 psi)
• Validated up to 8400 RPM
• Compatible with petrol and E85 fuels
• Integrated high pressure pulse damping orifice for smooth fuel pressure control
• Bolt-on installation — no permanent modifications or drilling required
• Stainless steel high pressure tube fully replaces the OEM line and internal orifice
• Each pump laser-marked with a unique Hondata keycode for easy tuning
• Compatible with Hondata and MoTeC tuning platforms
• Dynamically tested and backed by a limited lifetime warranty
• Shipping weight: 2.6 kg | Carton dimensions: 340 x 230 x 210 mm

Vehicle compatibility, full fitment notes, and application details are provided in the tabs above. Please confirm your vehicle's year, model, and configuration before ordering.

Not sure if this kit suits your build? Contact our team at sales@chicaneaustralia.com.au for expert advice.
