AST Suspension Air Jack 55mm System & Accessories

AST Air Jacks

Lift your vehicle in seconds without the need for a traditional floor jack. AST Air Jacks are an invaluable upgrade for high-performance vehicles, allowing for effortless track-side maintenance and rapid tyre changes. Whether you are competing in drifting, time attack, or GT racing, these jacks provide a professional and efficient lifting solution.

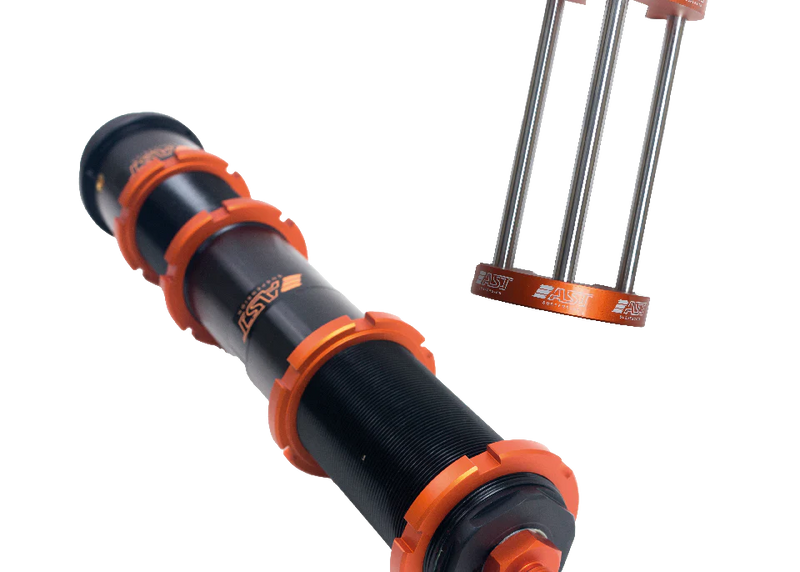

Engineered for the rigours of motorsport, each jack features a single-piece shaft for superior stability and a dedicated dust scraper to prevent contamination and increase longevity. For added security, optional safety stands can be slid into place around the ram once fully extended, ensuring the vehicle remains safely elevated during service.

Key Features

• Rapid Deployment: Lift your car almost instantly using compressed air.
• Motorsport Proven: Ideal for drifting, circuit racing, and time attack applications.
• Durable Design: Features a single-piece shaft for maximum stability and a built-in dust scraper for long-term reliability.
• Safety First: Optional safety stands available to mechanically lock the jack in the extended position.
• Stability: Optional Elephant Feet available to provide additional lift height and a broader base.

Product Options

• Air Jack 55mm (233mm Stroke): 480kg lift capacity, 53mm Outer Diameter.
• Air Jack 55mm (350mm Stroke): 480kg lift capacity, 53mm Outer Diameter.
• Safety Stand (230mm): Keeps 55mm air jack open at 205mm.
• Safety Stand (347mm): Keeps 55mm air jack open at 322mm.
• Elephant Feet: Provides an additional 216mm of lift for 55mm air jacks.
