AP Racing CP9660 Front Big Brake Kit Porsche 911 Carrera S / 4S / Turbo (997.1)

AP Racing CP9660 Front Big Brake Kit - Porsche 911 Carrera S / 4S / Turbo (997.1)

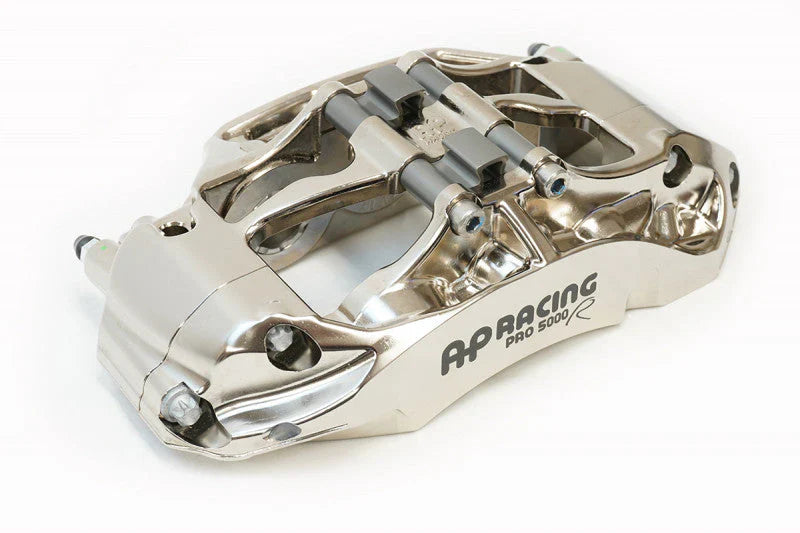

This AP Racing front big brake kit is built for the Porsche 911 Carrera S, Carrera 4S and Turbo (997.1). It pairs AP Racing's CP9660 6-piston radial-mount caliper from the PRO 5000 R range with a 2-piece floating rotor on a bobbin-mounted hat, giving more thermal capacity, a stiffer, more consistent pedal and less fade on track than the factory brakes. It suits track days, sprint and endurance racing and fast road use.

Choose your rotor: 356 x 32mm DIXCEL, 365 x 34mm Paragon or 380 x 34mm Paragon 2-piece rotors. A bigger rotor adds thermal capacity and leverage but needs more wheel clearance. Calipers are supplied in AP Racing's anodised finish.

Note: Check wheel clearance for your chosen rotor size before ordering. Kits are made to order. AP Racing's CP9660 installation drawing is available here (PDF). Installation by a professional is recommended.

Features

• AP Racing CP9660 forged two-piece 6-piston caliper, asymmetric design for stiffness
• Differential-bore stainless steel pistons: 2 x 27.0mm, 2 x 31.8mm, 2 x 38.1mm (50.1cm² piston area)
• High-temperature seals, 4 lb anti-knockback springs and stainless wear plates
• 2-piece floating rotors on bobbin hardware, so the ring can expand freely under heat
• Rotor options: 356 x 32mm DIXCEL, 365 x 34mm Paragon or 380 x 34mm Paragon
• CP3905D54 pad shape, 18mm thick

Need help choosing a rotor size for your car? Contact our team at sales@chicaneaustralia.com.au.
