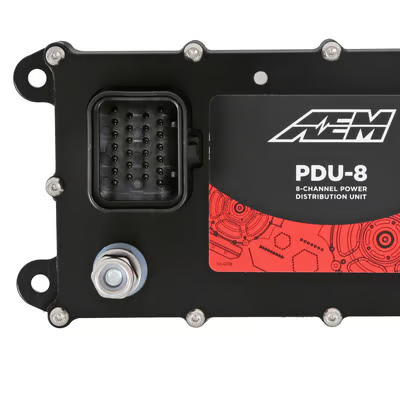

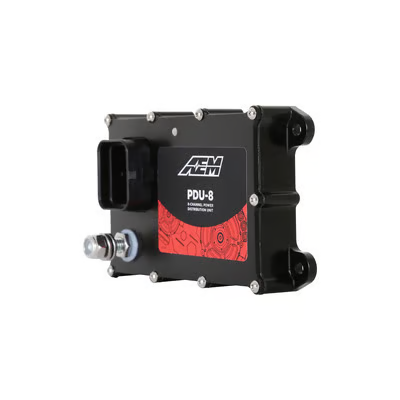

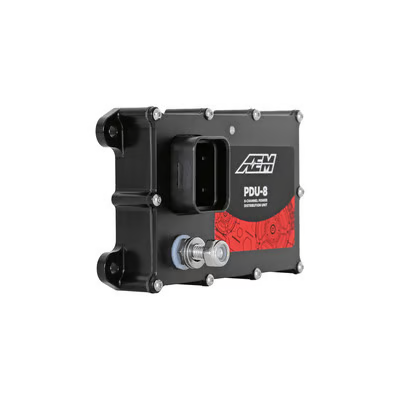

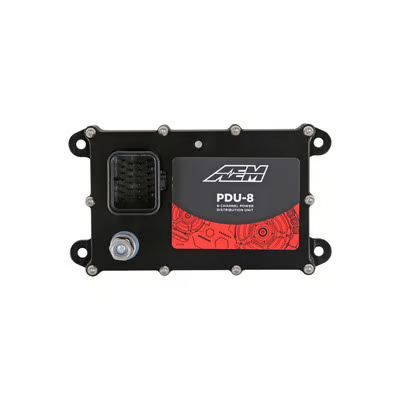

AEM PDU-8 Eight-Channel Power Distribution Unit

The AEM PDU-8 Power Distribution Unit is a CAN-based solid-state module that provides eight high-side outputs for switching control of various vehicle systems. Originally designed for EV applications and now available for internal combustion engines, the PDU-8 eliminates traditional fuses and relays while simplifying wiring, reducing weight, and increasing system reliability. It's the ideal solution for controlling fans, fuel pumps, lights, and other electronically switched devices.

Key Features

• Eight 12V high-side outputs: 4x 20A and 4x 10A

• Works with AEM Infinity ECU, AEM VCUs, and AEM CD Digital Dashes (up to 4 PDUs on AEM dashes)

• Compatible with third-party CAN-enabled systems (Motec, Link, FuelTech, Haltech, etc.)

• Fully CAN-controlled – no onboard logic programming required

• Operates on standard CAN Bus 2.0 at 500 kbps

• Supports up to 8 units per CAN bus network

• Duty cycle control: 0–100% at 100Hz

• Compact, lightweight form factor: 103 x 67 x 33 mm (4.05" x 2.70" x 1.5")

• Weight: 190g (6.7oz)

• Rugged billet-aluminium enclosure – IP-rated and waterproof for motorsport use

• Enables subsystem proximity mounting to reduce harness complexity

Applications

• Fuel pumps

• Cooling fans

• Headlights / tail lights

• Turn signals

• Brake lights

• Windshield wipers

• High-voltage contactors

• Custom CAN-controlled functions

Compatibility

• AEM VCUs, CD-5/CD-7 Dashes, and Infinity ECUs

• Third-party ECUs with configurable CAN output

• Logic-based control supported via AEM dash integration for Holley EFI systems
