AEM CD-7LG Carbon Logging Display with Internal GPS

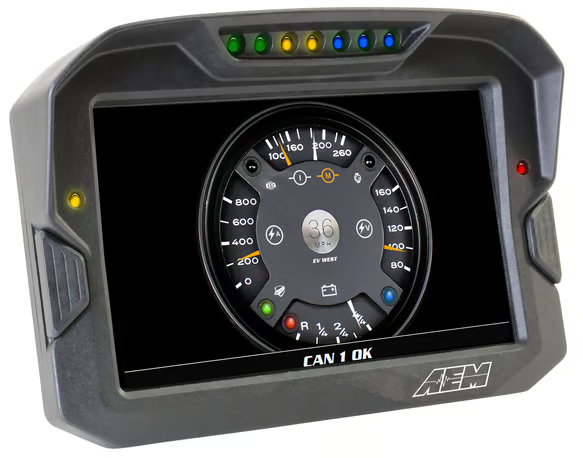

The AEM CD-7LG Carbon is a 7” full-featured digital display with integrated internal GPS and high-speed data logging. Housed in a robust carbon fibre composite enclosure, it delivers real-time data from CAN-enabled devices and factory ECUs in a compact, sunlight-readable package. Designed for motorsport and high-performance builds, the CD-7LG is your ultimate all-in-one display, logging, and GPS tracking solution.

Key Features

• Full-colour 7” TFT screen with 800x480 resolution

• 1000cd/m² brightness and anti-glare filter for direct sunlight readability

• Lightweight flow-moulded carbon fibre composite housing

• Integrated high-speed data logging (200Mb, up to 1,000Hz/channel)

• Built-in 20Hz GPS receiver and antenna

• Dual CAN bus inputs – works with AEMnet and third-party CAN systems

• Water-resistant to IP65 standard – ideal for open cockpit and marine use

• Seven programmable screen pages, including Alarm, On-Change, and Start-up

• Seven programmable top-mounted LED shift lights (dimmable)

• Two large face-mounted buttons for page control and memory reset

• Two additional programmable LEDs above toggle buttons

• DashDesign software included for layout creation and configuration

• Free layout files interchangeable between all CD Carbon dashes

• Compatible with Plug & Play adapter cables for Holley, Link, MSD Atomic, Vi-Pec

• OBDII CAN support for 2008+ factory ECUs (PN 30-2217, sold separately)

• Pre-2008 ECU compatibility via 22 Channel CAN Sensor Module (PN 30-2212)

• Add Vehicle Dynamics Module (PN 30-2206) for gyroscope, accelerometer & GPS track mapping

• Add 8 Channel K-Type EGT CAN Module (PN 30-2224) for expanded temperature monitoring

• Odometer function and user-defined warnings in multiple languages

• Custom channel-based graphics and warning icons (over 200 supplied)

• Headlight dimming trigger and additional switch inputs for blinkers, high beams, etc.

Compatibility

• Compatible with AEMnet, third-party CAN devices, and most modern and legacy ECU systems

• Ideal for time attack, endurance, drag racing, drift, off-road, and marine applications
