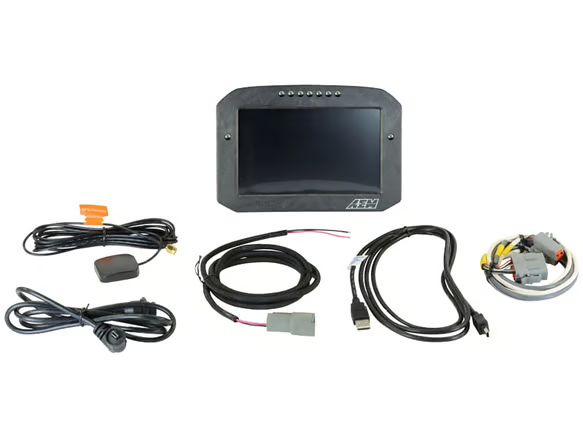

AEM CD-7FLG Carbon Flat Logging Display with Internal GPS

The AEM CD-7FLG Carbon Flat Panel Display is a GPS-enabled, data-logging motorsport dash designed for precision monitoring, performance analysis, and seamless integration into tight dashboards or flush-mount installations. Combining a brilliant full-colour 7” screen, 200MB of internal data logging, and a high-speed 20Hz GPS receiver, the CD-7FLG is the ultimate digital display for competitive drivers, data-focused tuners, and motorsport engineers.

Flush-Fit, High Function
This flat panel version of the CD-7 features no built-in buttons or shade hood, making it ideal for custom dashboards or tight in-dash environments. It includes a full-featured internal GPS receiver and onboard logging that captures data at up to 1,000Hz per channel. The compact, rugged carbon fibre housing is IP66 rated for water resistance, making it suitable for open-cockpit, marine, or motorcycle applications.

Key Features

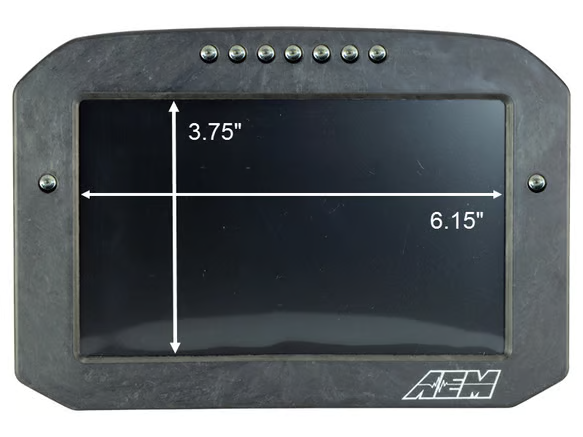

• 7” full-colour LCD (800x480 resolution)

• Daylight readable: 1000cd/m² brightness + anti-glare filter

• Internal 200MB data logger (up to 1,000Hz/channel)

• Integrated 20Hz GPS receiver for lap timing, speed, and position tracking

• Rugged carbon fibre composite housing – compact and lightweight

• Flush panel design (no buttons or LED hood)

• Seven programmable shift/RPM LEDs

• Two additional programmable LEDs

• IP66 water resistance – safe for exposed environments

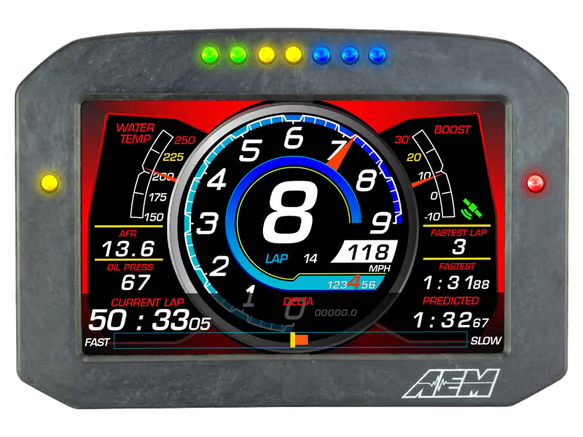

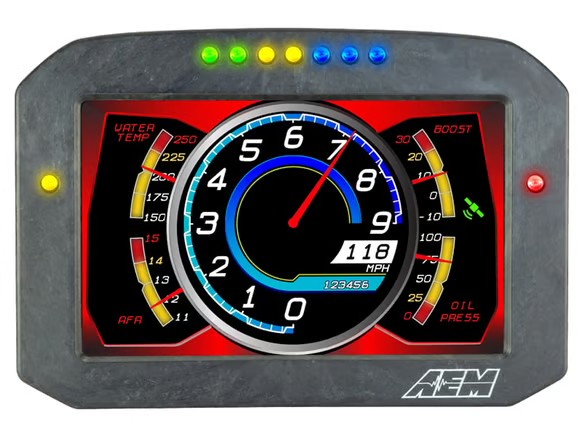

Display & Control

• Seven programmable pages, including Alarm, On-Change, Start-Up, and four Main screens

• Remote Button Kit supported (PN 30-3610, sold separately)

• Odometer function and user-switch inputs (blinkers, lights, etc.)

• Fully customisable via DashDesign Software

• Display user graphics, warning icons (200+ included), and multi-language text based on CAN input

CAN Bus Compatibility

• Dual CAN input: AEMnet and non-AEM third-party CAN devices

• Plug & Play compatible with Holley, Link, MSD Atomic, Vi-Pec ECUs

• Supports OBDII CAN from 2008+ ECUs via adapter (PN 30-2217, sold separately)

• Works with pre-OBDII or carbureted setups using CAN Sensor Modules (PN 30-2212 or 30-2226)

• Expand data channels with 8-Channel K-Type EGT Module (PN 30-2224)

• Add Vehicle Dynamics Module (PN 30-2206) for roll, pitch, yaw, G-loads, and mapping

Perfect For

• Custom dash or flat panel race car builds

• Circuit, time attack, drag, and rally vehicles

• Track-day and competitive users needing accurate GPS + data logging

• Builds with advanced data requirements and multi-ECU CAN networks
