AEM CD-7FL Carbon Flat Panel Logging Display

The AEM CD-7FL Carbon Flat Panel Logging Display delivers all the powerful features of the original CD-7 Carbon Digital Dash in a compact, flush-mount-friendly package. Designed without integrated buttons or a shade hood, the CD-7FL is ideal for tight dash installations and clean flat panel builds in motorsport or performance street vehicles.

High-Visibility, Motorsport-Ready Display

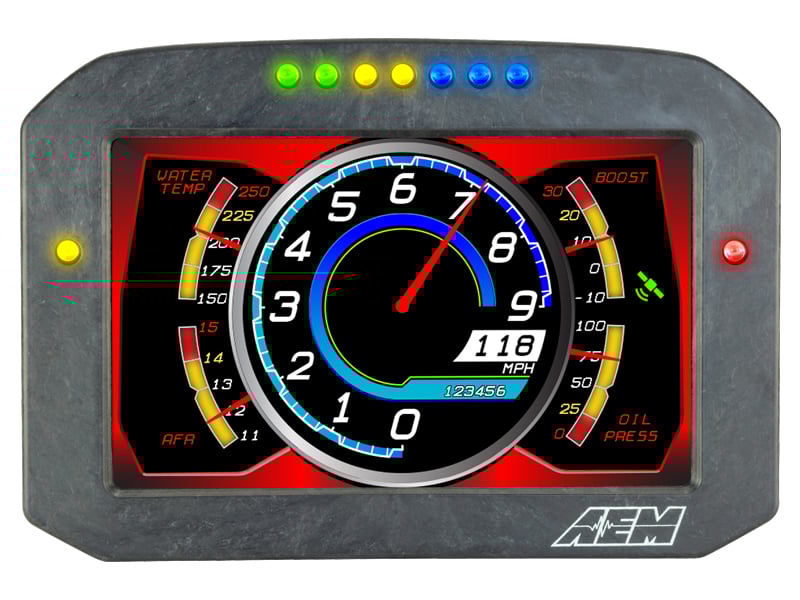

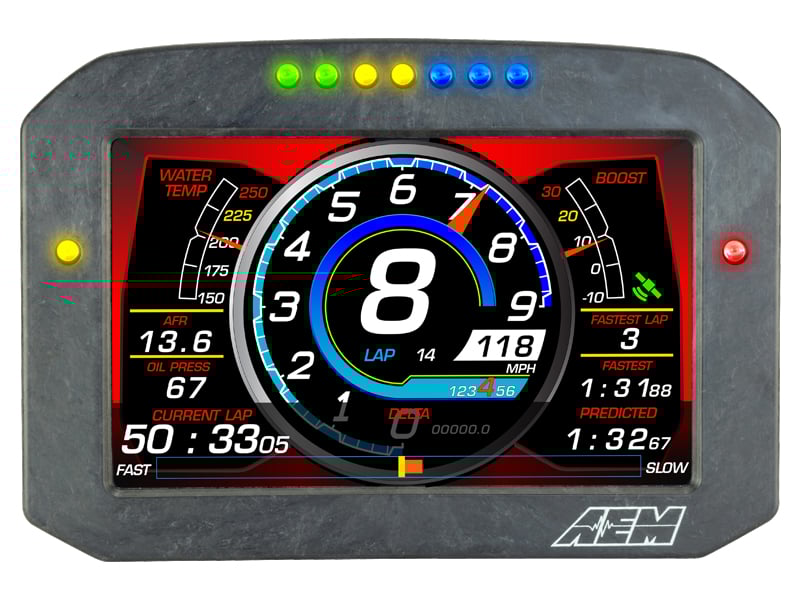

The CD-7FL features a 7” full-colour display with 800x480 resolution and 1000cd/m² brightness for direct sunlight readability. Housed in a lightweight, rugged carbon fibre composite enclosure, it’s IP66-rated for open cockpit use, making it suitable for extreme environments on or off the track. The screen is anti-glare coated and fully programmable via AEM’s DashDesign Software, allowing full customisation of layouts, alarms, and data views.

Key Features

• 7” full-colour LCD (800x480 resolution) with anti-glare and 1000cd/m² brightness

• Flush-mount carbon fibre housing without built-in buttons or hood

• Seven bright RPM/shift LEDs across the top (fully programmable & dimmable)

• Two additional programmable LEDs for status/warnings

• Seven customisable pages: Main, Alarm, Start-Up, and On-Change pages

• Odometer and user-triggered input support (blinkers, high beams, etc.)

• Accepts AEMnet and non-AEM CAN channels side-by-side

• Supports OBDII CAN, Holley, Link, Vi-Pec, MSD, and more via adapter cables

• Compatible with pre-OBDII and carbureted vehicles using optional CAN sensor modules

• DashDesign Software included for full layout customisation and icon mapping

• Accepts user-defined graphics and text overlays, dynamic screen changes

• Optional logging version with internal 200MB memory (up to 1,000Hz/channel)

• Expand with optional GPS, EGT modules, and Vehicle Dynamics Module (VDM)

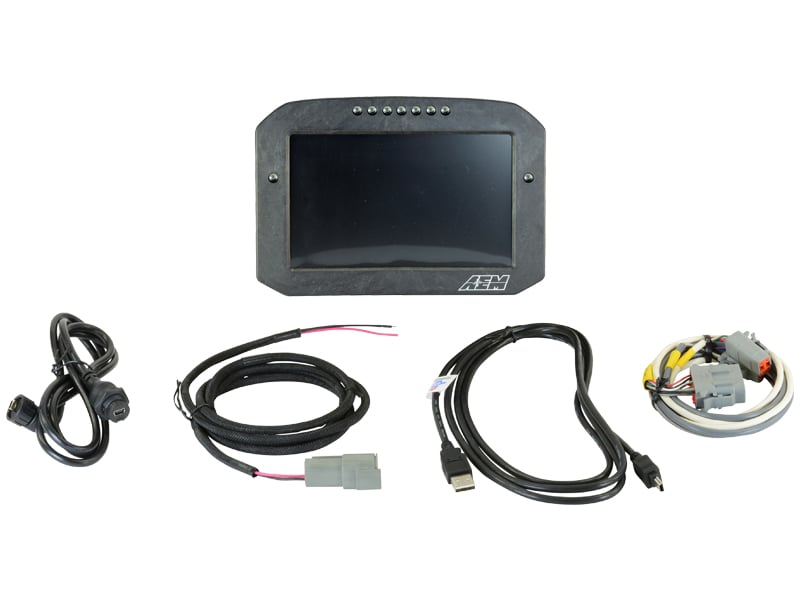

What's Included

• AEM CD-7FL Carbon Flat Panel Display

• Wiring harness and connector set

• Free DashDesign Software (downloadable)

• Includes logging capability (this version)

Optional Accessories (Sold Separately)

• Remote Button Kit (PN 30-3610)

• OBDII CAN Adapter Cable (PN 30-2217)

• 22-Channel (PN 30-2212) or 6-Channel (PN 30-2226) CAN Sensor Modules

• 8-Channel K-Type EGT CAN Module (PN 30-2224)

• Vehicle Dynamics Module (PN 30-2206)

Perfect For

• Flush dash panel installations

• Time attack, circuit, drift, drag, and rally builds

• Data-driven performance tuning and driver feedback

• Applications requiring CAN integration across multiple devices and ECUs
