AEM CD-7FG Carbon Flat Panel Display – Non-Logging

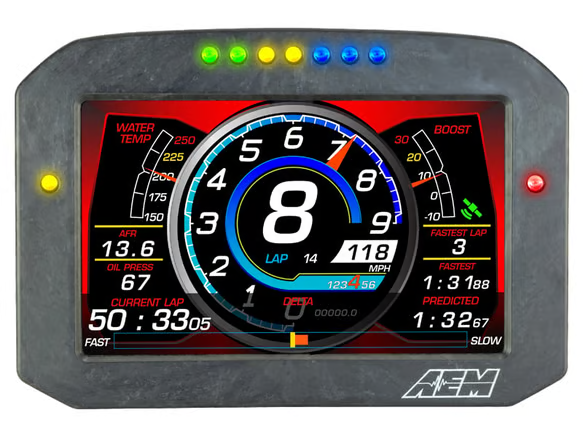

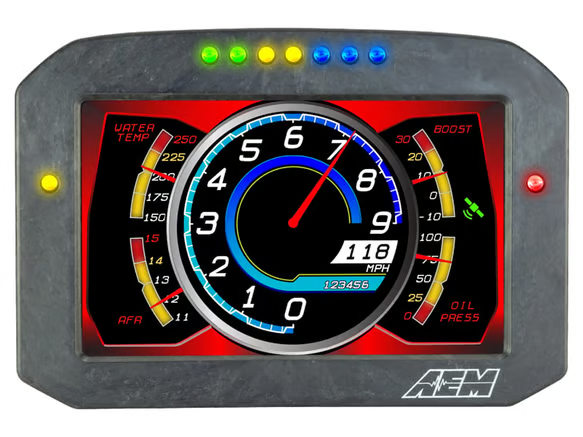

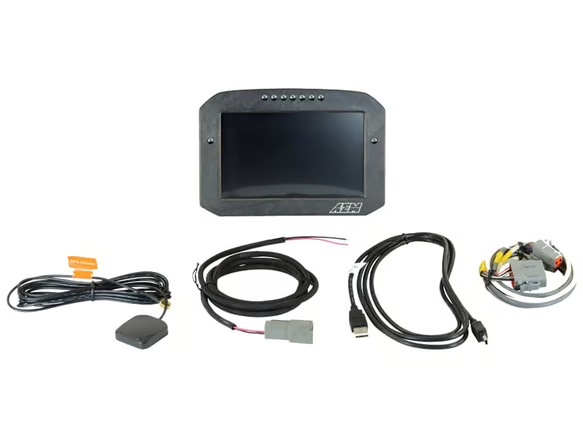

The AEM CD-7FG Carbon Flat Panel Digital Display is designed for high-performance applications requiring a flush-mount, non-logging dash display with GPS integration. Featuring a vibrant, daylight-readable 7" screen housed in a lightweight carbon fibre composite enclosure, the CD-7FG offers powerful monitoring and customisation capabilities for both AEM and third-party CAN devices. This flat panel variant omits physical buttons and the sunshade hood for a low-profile, in-dash installation.

Key Features

• 7" full-colour screen (800x480 resolution)

• Direct sunlight-readable with 1000cd/m² brightness and anti-glare coating

• Compact flat panel design, ideal for tight dash enclosures

• Slim, rugged carbon fibre composite housing

• IP66 water resistance – suitable for open cockpit or marine use

• GPS-enabled with integrated 20Hz GPS module and antenna

• Compatible with AEMnet and third-party CAN bus systems

• Seven programmable pages: four main, one Alarm, On-Change, and Start-Up

• Free DashDesign software for custom layout creation

• Seven ultra-bright programmable shift light LEDs

• Two additional programmable LEDs

• Odometer and trip meter functions

• Over 200 preloaded SAE/custom warning icons

• 'Headlight-in' dimming for nighttime driving

• Extra switch inputs for user-triggered events (indicators, lights, etc.)

• Supports graphic changes based on CAN input or channel values

• Displays user-defined text based on channel input

• Plug & Play ECU adapter cables available for Holley, Link, Vi-Pec, MSD, and others

• OBDII CAN compatibility (with PN 30-2217, sold separately)

• Expandable with sensor modules:

  • 22-Channel or 6-Channel CAN Sensor Modules

  • 8-Channel K-Type EGT CAN Module (PN 30-2224)

  • Vehicle Dynamics Module (PN 30-2206) for G-Force & Track Data

Perfect For

• Flush-mount dash configurations

• Motorsports, off-road, marine, or powersports applications

• Users who want GPS functionality without onboard data logging

• Integration with AEM or 3rd-party ECUs and CAN-based devices

Note: This model does not include internal data logging. For a logging-enabled version, consider the CD-7FLG or CD-7L variants.
