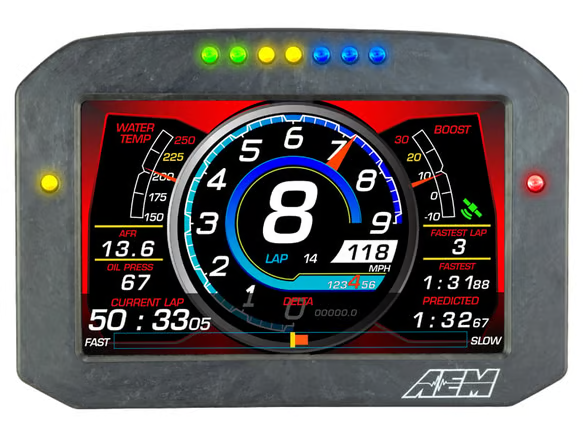

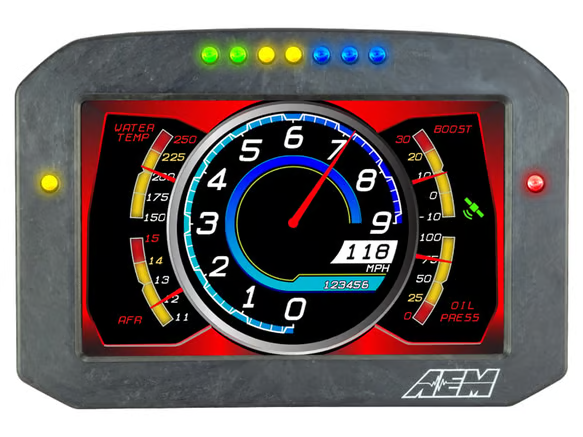

AEM CD-7F Carbon Flat Panel Display – Non-Logging / Non-GPS

The AEM CD-7F Carbon Display is a flush-mount, 7" digital dash designed for high-performance street and motorsport applications where space is tight and a clean, integrated look is essential. Built from lightweight flow-moulded carbon fibre composite, it offers all the functionality of the original CD-7 but omits the integrated buttons and LED hood for a slimmer profile. With vivid graphics, dual CAN inputs, and customisable layouts, the CD-7F is a premium data display solution for serious racers and builders.

Key Features

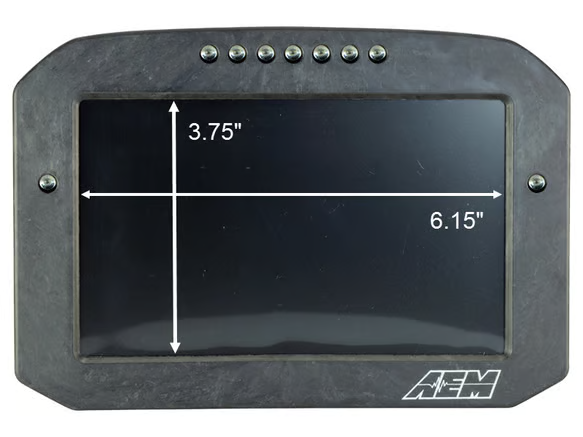

• Full-colour 7” display with 800x480 resolution and anti-glare filter

• Designed for flush-mount and tight-tolerance dashboard installations

• Flow-moulded carbon fibre composite enclosure for durability and weight savings

• IP66-rated water resistance for open cockpit, marine, and motorcycle use

• Dual CAN input – compatible with AEMnet and third-party CAN devices

• Seven programmable pages including Main, Alarm, On-Change, and Start-up

• Integrated top-mounted LED shift lights (7-stage, programmable and dimmable)

• Two additional programmable warning LEDs on housing

• External 2-button remote kit compatible (PN 30-3610, sold separately)

• Odometer and advanced user-definable warnings

• Over 200 programmable SAE and custom warning icons

• Dynamic screen elements based on live data values

• DashDesign software included for layout creation and channel mapping

• Supports Plug & Play CAN Adapter Cables for Holley, Link, MSD Atomic, Vi-Pec

• Compatible with 2008+ factory ECUs via OBDII CAN Adapter (PN 30-2217, sold separately)

• Expandable with 22 or 6 Channel CAN Sensor Modules for pre-2008 ECUs

• Optional 8 Channel K-Type EGT CAN Module and Vehicle Dynamics Module available

• Internal logging and GPS options available (not included with this version)

Compatibility

• Works with AEMnet, Link, Holley, Vi-Pec, MSD Atomic, and other CAN-enabled systems

• Ideal for time attack, circuit racing, drift, and marine or powersport builds
