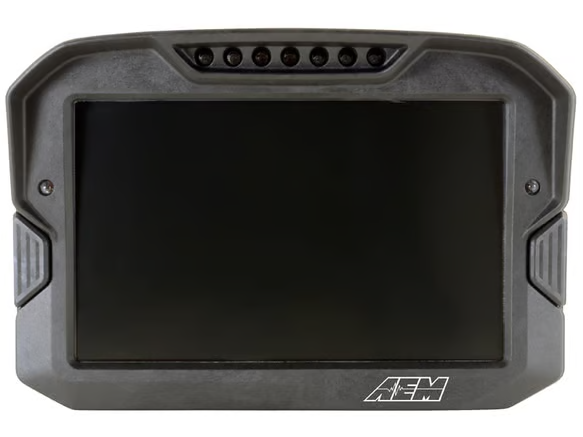

AEM CD-7 Carbon Display – Non-Logging / Non-GPS

The AEM CD-7 Carbon Display is a powerful 7” motorsport dash designed to deliver essential vehicle data in a clear, full-colour format. Engineered with a lightweight carbon fibre composite housing, the CD-7 is ideal for race cars, boats, motorcycles, and high-performance street applications. It features ultra-bright programmable LEDs, configurable page layouts, and seamless CAN integration with AEM and third-party ECUs—without the need for additional modules.

Key Features

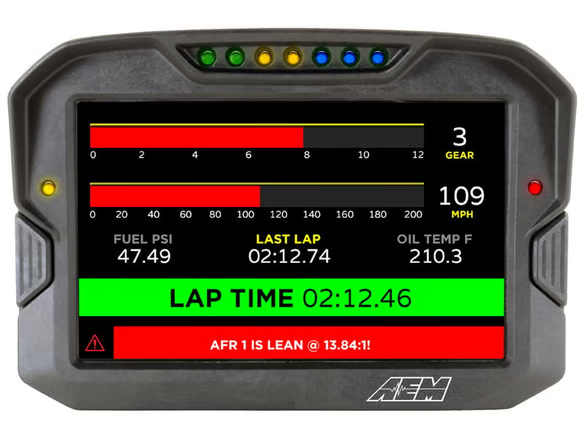

• Full-colour 7” screen with 800x480 resolution and anti-glare filter

• Sunlight-readable with 1000cd/m² brightness

• Lightweight carbon fibre composite enclosure (595g)

• IP65 rated for water and dust resistance – safe for open-cockpit use

• Accepts data from two independent CAN inputs (AEMnet and non-AEM)

• Seven LED shift light indicators with programmable brightness

• Two programmable warning LEDs above integrated page toggle buttons

• Built-in buttons on the face; remote button support included

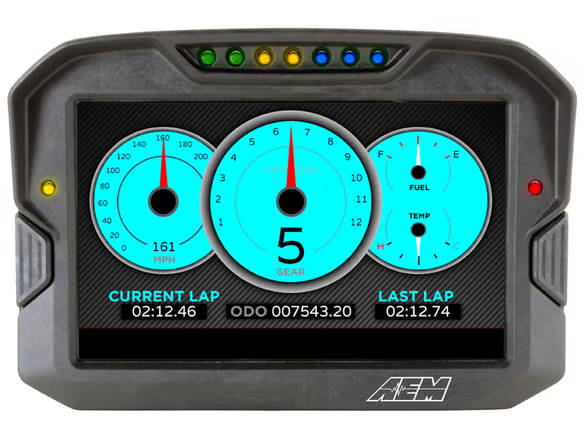

• Seven fully programmable display pages: 4 Main, Alarm, On-Change, Start-up

• Odometer tracking and over 200 configurable SAE/custom warning icons

• Customisable page layouts via DashDesign Software (included)

• Compatible with 250+ CAN devices, including factory 2008+ OBDII ECUs

• Plug & Play support for Holley, Link, Vi-Pec, MSD Atomic ECUs

• 'Headlight-in' dimming function for night driving

• Two extra switch inputs (ideal for high beam, turn signals, etc.)

• User graphics and multilingual text display supported

Compatibility

• Accepts data from 2008+ ECUs via OBDII CAN Adapter (PN 30-2217, sold separately)

• Add compatibility for older/pre-CAN systems using 22 Channel CAN Sensor Module (PN 30-2212)

• Expand temperature monitoring with 8 Channel K-Type EGT CAN Module (PN 30-2224)

• Optional Vehicle Dynamics Module adds GPS, accelerometer, gyro (PN 30-2206)
