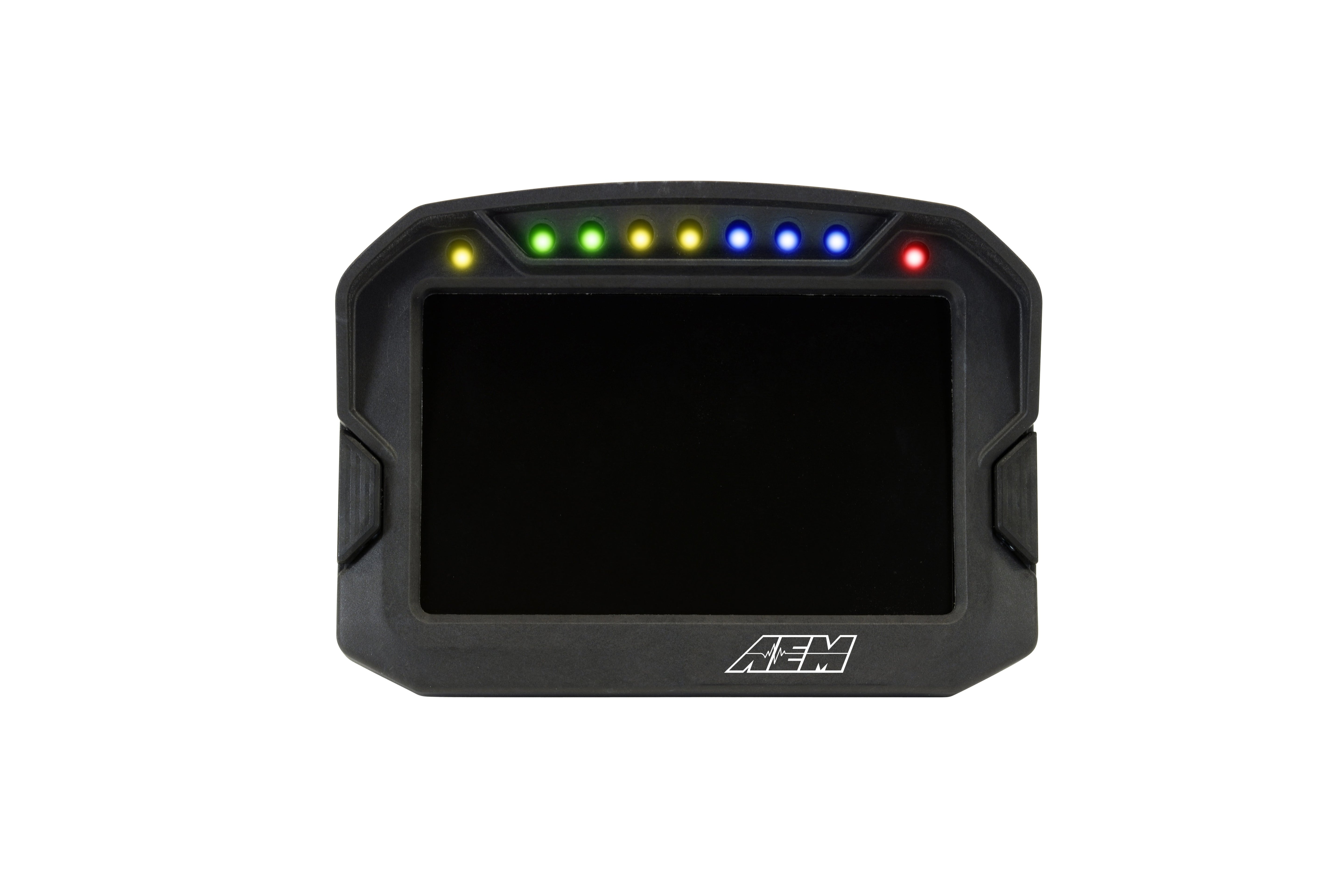

AEM CD-5L Carbon Logging Display

The AEM CD-5L Carbon Logging Display is a compact, lightweight, and powerful digital dash display built for racers, tuners, and high-performance enthusiasts. Featuring a brilliant 5” full-colour LCD, integrated shift lights, and robust CAN integration, the CD-5L delivers real-time data and onboard logging in a slim, rugged carbon fibre composite housing.

Capture, View & Log Everything
The CD-5L includes 200MB of internal logging (up to 1,000Hz/channel), enabling you to capture critical vehicle data from two independent CAN bus networks. No extra modules are needed to communicate with AEMnet or third-party CAN devices—just plug in, configure, and drive. It's validated to work with over 250 non-AEM CAN devices and 2008+ factory ECUs via OBDII (adapter PN 30-2217 sold separately).

Key Features

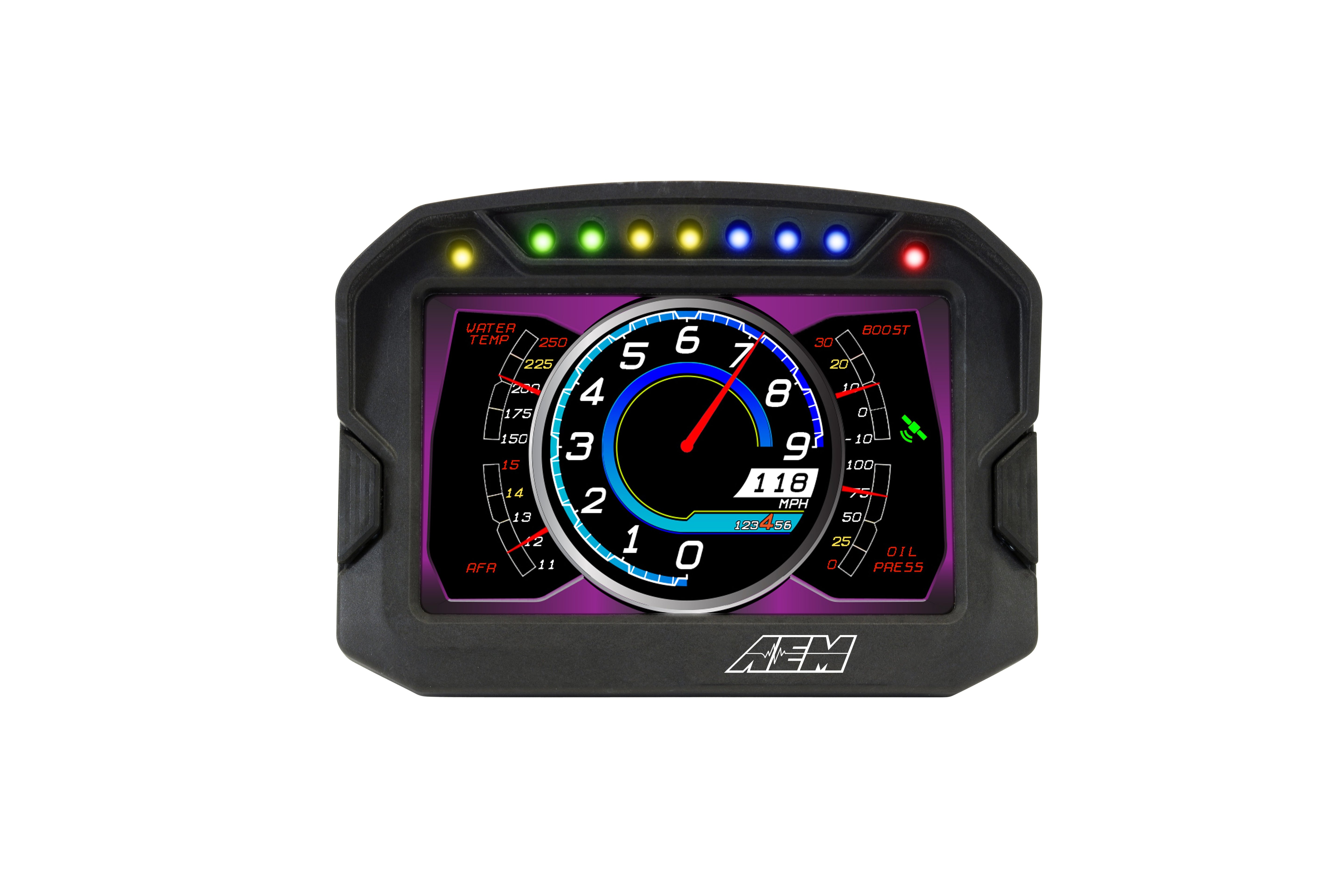

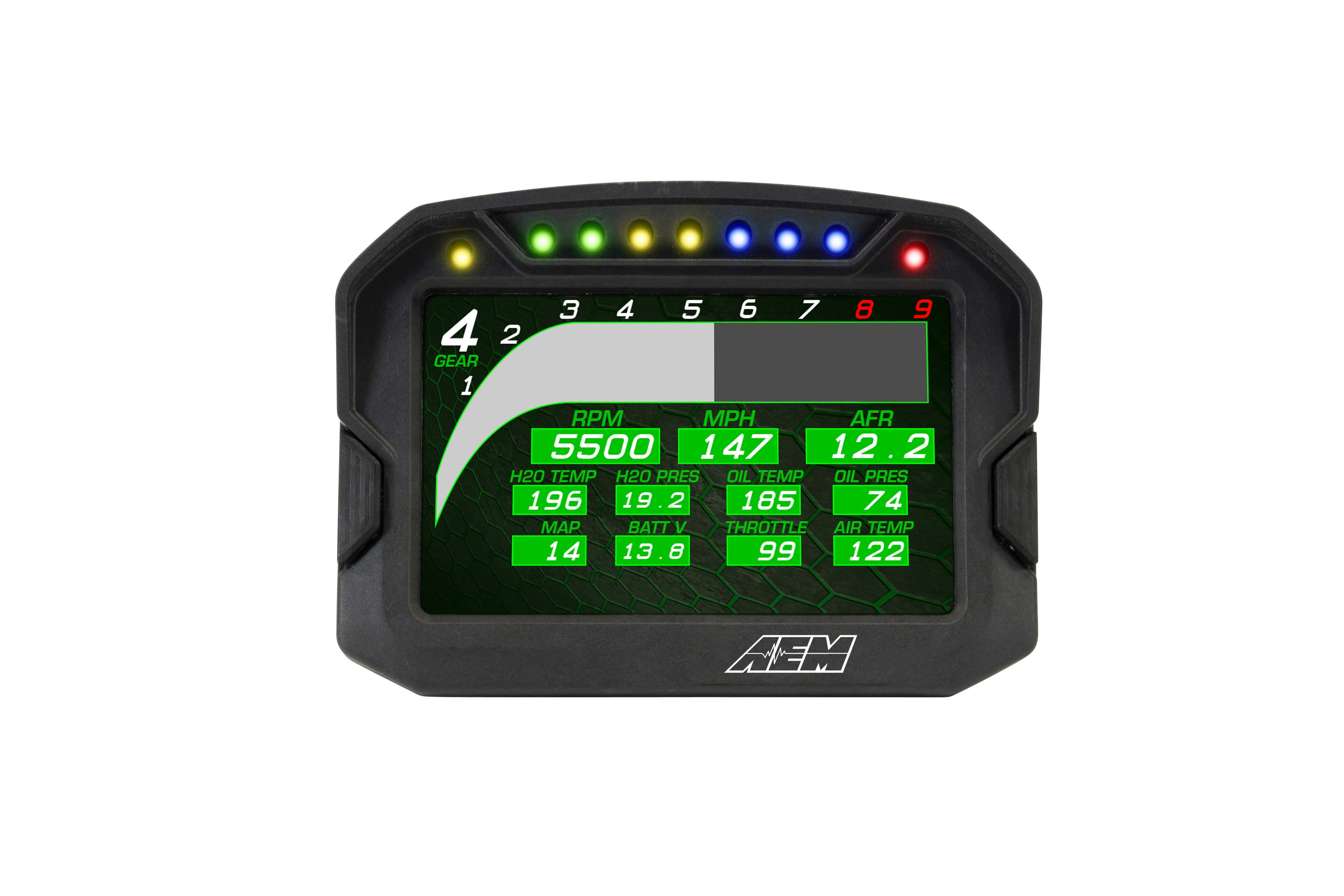

• 5” full-colour LCD screen (800x480 resolution)

• Direct sunlight readability with 1000cd/m² brightness and anti-glare filter

• 200MB internal data logging (up to 1,000Hz per channel)

• Rugged flow-moulded carbon fibre composite enclosure – weighs just 331g (11.7oz)

• IP66 water resistance – safe for motorcycles, marine, and open cockpit applications

• Seven shift light LEDs (programmable and dimmable)

• Two face-mounted buttons for easy page changes and memory resets

• Two additional programmable LEDs for warnings or alerts

Advanced Page Control

• Seven programmable screens: 4 Main, Alarm, Start-Up, and On-Change

• Alarm page for critical alerts (multi-language support)

• On-Change page for real-time event tracking (e.g. boost maps, traction, lap delta)

• DashDesign Software included for full layout and channel customisation

• User-defined graphics and text overlays based on live CAN data

• Convert CAN values to plain text (multi-language support)

Broad Compatibility

• Compatible with AEMnet and non-AEM CAN devices

• Plug & Play cables available for Holley, Link, Vi-Pec, MSD Atomic ECUs

• Supports 2008+ OEM ECUs via OBDII (PN 30-2217, sold separately)

• Use with 22-Channel or 6-Channel CAN Sensor Modules for older or carbureted vehicles

• Expand with 8-Channel K-Type EGT Module (PN 30-2224)

• Add Vehicle Dynamics Module (PN 30-2206) for GPS, accelerometer, and lap timing

Additional Features

• Odometer function

• Headlight-in dimming for night driving

• User-defined warning icons (200+ included)

• Two extra switch inputs for blinkers, high beams, etc.

Perfect For

• Track, drag, drift, and time attack race builds

• High-performance street vehicles

• Vehicles requiring compact CAN data display and logging

• Multi-ECU or sensor-heavy builds requiring dual-CAN input
