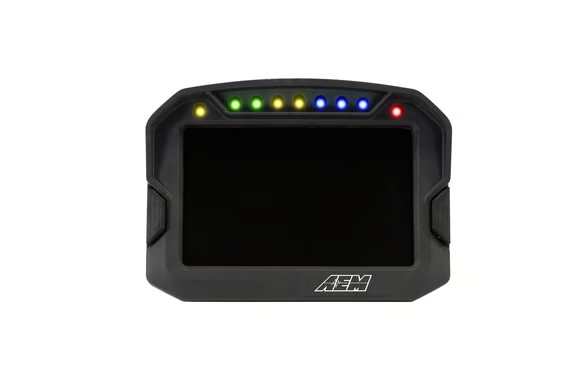

AEM CD-5G Carbon Display – Non-Logging with Internal GPS

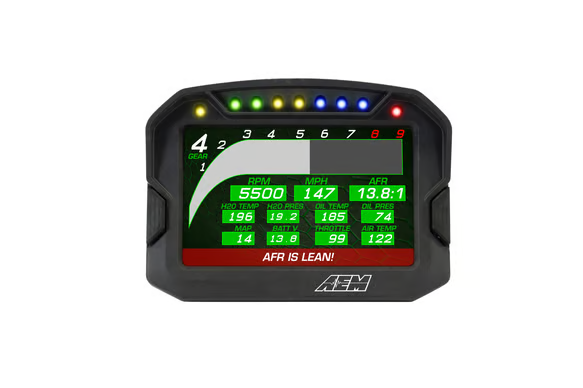

The AEM CD-5G Carbon Digital Display is a powerful, GPS-enabled 5" full-colour dash designed for racers and enthusiasts who demand high visibility and flexibility without internal data logging. Housed in a lightweight, rugged carbon fibre composite shell, the CD-5G is perfect for motorsport and performance applications requiring real-time data visualisation, shift light indication, and CAN-based communication—all without needing additional modules or wiring headaches.

Key Features

• Full colour 5" screen (800x480 resolution)

• Direct sunlight readable with anti-glare technology (1000cd/m²)

• Rugged flow-moulded carbon fibre composite enclosure

• IP66 water-resistant for off-road, marine, and motorsport use

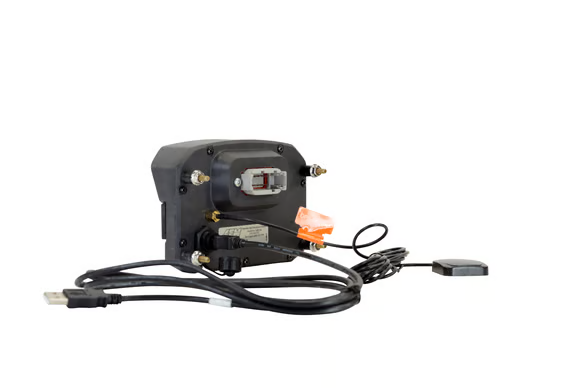

• Integrated 20Hz GPS receiver and antenna

• Two large face buttons for navigation (with remote wiring option)

• Two additional programmable LEDs

• 7 programmable LED shift lights (programmable/dimmable)

CAN Bus Integration

• Supports two separate user-configurable CAN inputs

• Compatible with over 250 AEM and third-party CAN devices

• Plug & Play harnesses available for Holley, Link, Vi-Pec, MSD Atomic, and more

• Works with 2008+ factory ECUs via optional OBDII CAN Adapter (PN 30-2217)

• Compatible with pre-2008 ECU and carbureted setups using AEM CAN modules

Advanced Display Functions

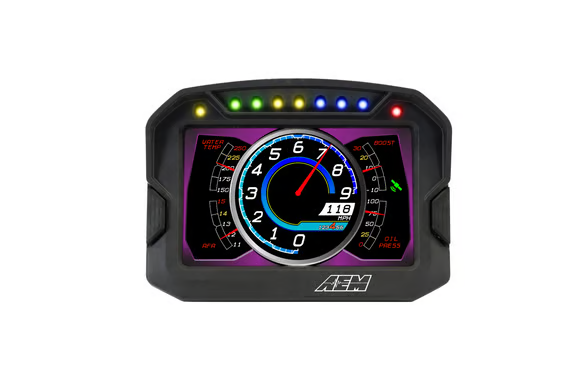

• Seven programmable display pages (Main, Alarm, On-Change, Start-up)

• User-defined alarm system in any language

• On-Change page displays events like map switching or lap data

• Built-in odometer, user-defined text, and graphic switching

• Supports over 200 programmable SAE/custom warning icons

• ‘Headlight-in’ dimming for night driving

• Compatible with DashDesign software for complete page customisation

Add-On Modules (Sold Separately)

• Vehicle Dynamics Module (PN 30-2206): 3-axis gyro/accelerometer + GPS

• 22 Channel CAN Sensor Module (PN 30-2212)

• 6 Channel CAN Sensor Module (PN 30-2226)

• 8 Channel K-Type EGT CAN Module (PN 30-2224)

Perfect For:

• Track cars

• Off-road builds

• Marine and powersport applications

• Vehicles where onboard data logging is not required
