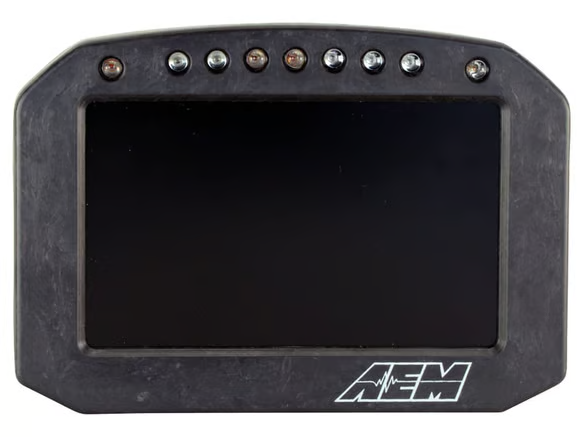

AEM CD-5FLG Carbon Flat Logging Display with Internal GPS

The AEM CD-5FLG Carbon Flat Logging Display is a flush-mount, GPS-enabled motorsport dash that combines compact design with powerful data acquisition capabilities. Designed for tight dash enclosures and custom panels, this flat-panel version of the CD-5 includes 200MB of internal data logging and an integrated 20Hz GPS receiver, making it a premium solution for competitive motorsport, data-driven street builds, and advanced track setups.

Slim Profile. Full Function.

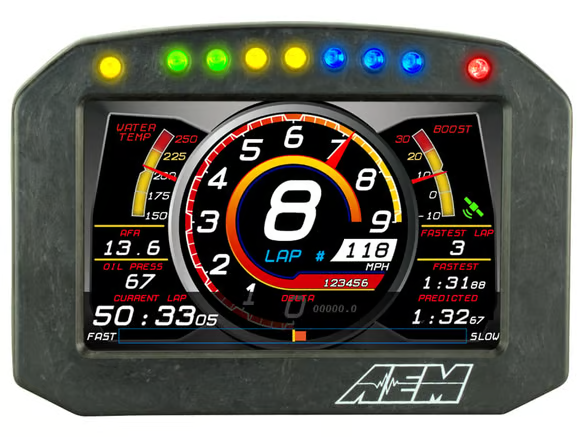

The CD-5FLG features a vivid 5” full-colour LCD (800x480 resolution) with anti-glare coating and 1000cd/m² brightness for direct sunlight readability. Its flow-moulded carbon fibre composite enclosure is lightweight, IP66-rated, and button-free—ideal for custom flush installations. A remote button kit (PN 30-3610, sold separately) enables page navigation and memory clearing.

Key Features

• 5" full-colour LCD display with 800x480 resolution

• Integrated 20Hz GPS receiver for speed, lap timing, and track mapping

• 200MB internal logging (up to 1,000Hz per channel)

• Flush-mount design – no built-in buttons or LED shade hood

• Seven ultra-bright shift/RPM LEDs (programmable and dimmable)

• Two programmable LEDs for custom alerts or status indicators

• Lightweight carbon fibre housing (IP66 rated for water/dust resistance)

• Compatible with DashDesign Software for complete layout customisation

• Includes odometer, headlight dimming, and 200+ customisable warning icons

Data & Display Capabilities

• Seven display pages: 4 Main, Alarm, Start-Up, and On-Change

• Alarm page quickly highlights system issues (multi-language supported)

• On-Change page for mapping boost settings, lap times, or traction states

• User-defined graphics and CAN-based value-to-text conversion

• Convert CAN channels into driver-friendly terms in any language

Broad Compatibility

• Accepts data from dual CAN buses (AEMnet + non-AEM CAN devices)

• Plug & Play adapter support for Holley, MSD Atomic, Vi-Pec, Link ECUs

• Compatible with 2008+ OEM ECUs via OBDII (PN 30-2217, sold separately)

• Works with carbureted or legacy ECUs using AEM CAN Sensor Modules

• Add 8-Channel K-Type EGT Module (PN 30-2224) for temperature expansion

• Enhance functionality with the Vehicle Dynamics Module (PN 30-2206) for GPS + motion tracking

Ideal For

• Race builds requiring GPS and high-speed logging

• Custom dashboards with space constraints

• Data-driven tuning, diagnostics, and post-session analysis

• Integration with multi-device CAN environments
