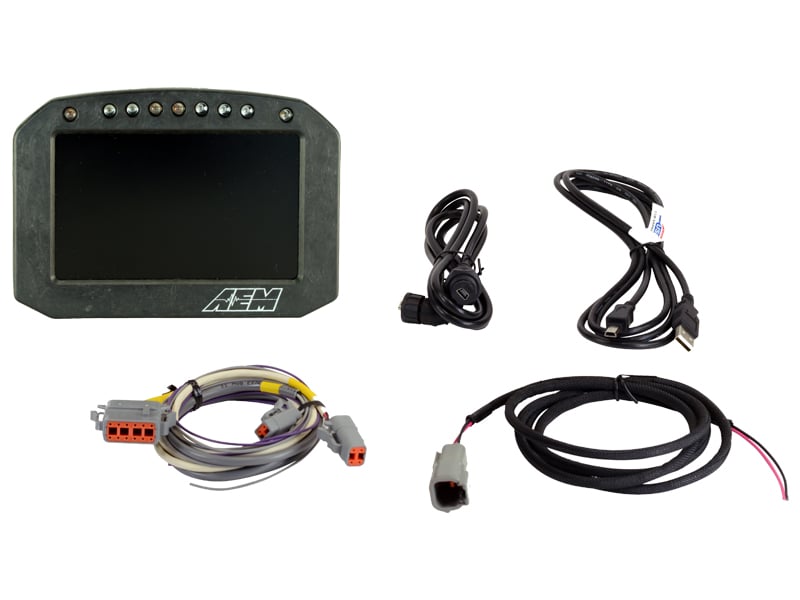

AEM CD-5FL Carbon Flat Panel Logging Display

$2,889.00
SKU: 30-5601F
Quantity:
Available to Order
Estimated shipping: 7 - 10 Days
Need it sooner? Contact us and we’ll see what we can do.

The AEM CD-5FL Carbon Flat Panel Logging Display brings race-ready digital data to compact spaces, with all the functionality of the original CD-5 Carbon dash in a slim, buttonless, flush-mount format. Designed for tight-tolerance in-dash installs, this flat panel version features the same ultra-bright full-colour screen, powerful CAN integration, and internal data logging capabilities—perfect for serious tuners and competitive racers.

Compact. Customisable. Competition-Ready.

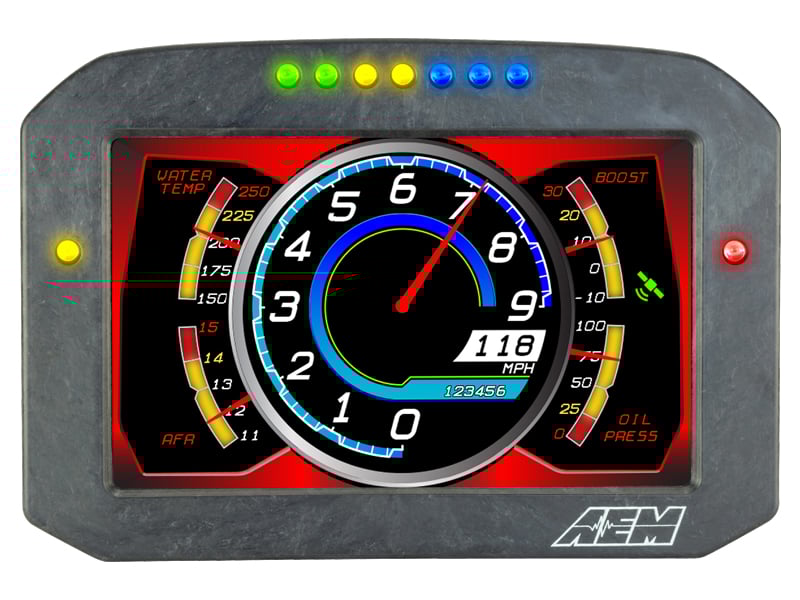

The CD-5FL features a vibrant 5” full-colour display with 800x480 resolution, anti-glare coating, and 1000cd/m² brightness, making it highly visible in direct sunlight. Its rugged, flow-moulded carbon fibre composite housing is IP66-rated for water resistance, allowing use in open-cockpit or exposed environments. Page layouts, alarms, and data channels are fully customisable via AEM’s DashDesign software.

Key Features

  • 5" full-colour LCD display (800x480) with 1000cd/m² brightness and anti-glare coating

  • Flush-mount carbon fibre housing (no buttons or shade hood)

  • Seven bright shift light LEDs on top (user-configurable and dimmable)

  • Two additional programmable LEDs for alerts or indicators

  • Seven programmable display pages, including Main, Alarm, Start-Up, and On-Change

  • Odometer function and event-triggered inputs (e.g. indicators, high beams)

  • IP66 water resistance – safe for open-cockpit use

  • Supports AEMnet and non-AEM CAN devices simultaneously

  • Over 200 programmable warning icons, with support for user-defined graphics

  • Analog data scaled to charts, with text overlays based on channel values

  • DashDesign Software included for full customisation

  • Includes 200MB internal data logging (up to 1,000Hz/channel)

Compatible Systems & Expansion Options

  • Works with Holley, Link, MSD Atomic, Vi-Pec, and more via Plug & Play CAN cables

  • Supports OBDII (2008+) with optional adapter (PN 30-2217)

  • Compatible with carbureted/pre-OBDII setups using AEM CAN Sensor Modules (PN 30-2212 or 30-2226)

  • Add EGT channels with 8-Channel K-Type CAN Module (PN 30-2224)

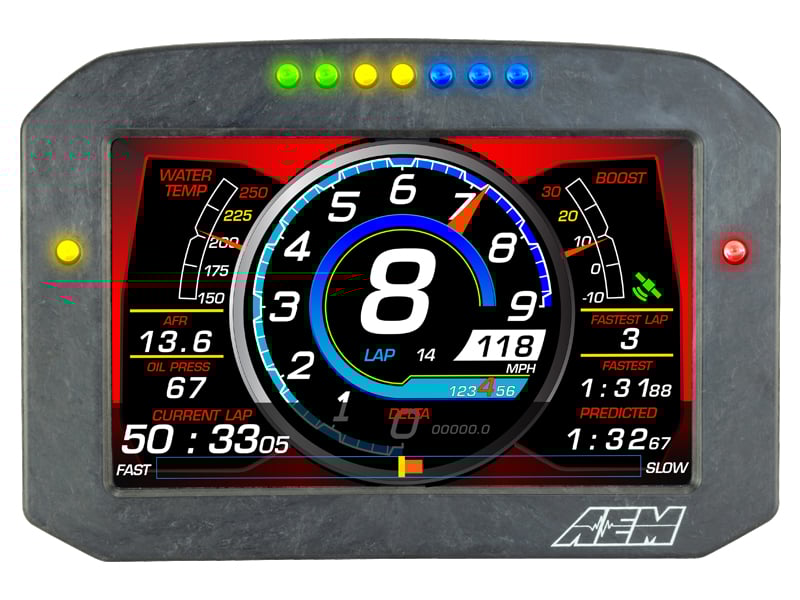

  • Add vehicle motion tracking and lap timing with Vehicle Dynamics Module (PN 30-2206)

  • Remote Button Kit (PN 30-3610) required to switch pages and clear memory (sold separately)

Perfect For

  • Flush panel or tight in-dash installations

  • Street, circuit, time attack, rally, and drag racing applications

  • Tuners needing compact yet powerful logging and display functionality

  • Cars with complex CAN data networks or standalone ECUs
