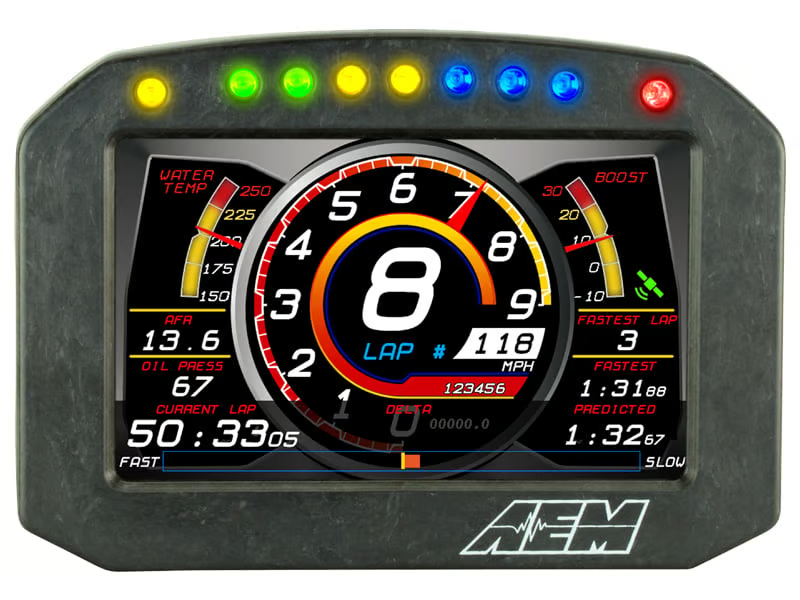

AEM CD-5FG Carbon GPS-Enabled Flat Panel Digital Dash Display

The AEM CD-5FG Carbon GPS-Enabled Flat Panel Digital Dash Display is a lightweight, compact motorsport display designed for flush mount installations in dashboards with tight clearances. Featuring a vibrant 5” full-colour screen, integrated shift lights, and onboard 20Hz GPS capability, the CD-5FG is a high-performance visual interface built for competitive racing, time attack, and advanced street builds.

Sleek, Buttonless, GPS-Ready
Unlike the standard CD-5 Carbon, the flat panel “FG” version removes external buttons and the LED shade hood for a clean, flush-mounted look. This model includes a high-frequency GPS receiver for lap timing, speed, track mapping, and more—perfect for drivers demanding positional data without the need for external GPS hardware.

Key Features

• 5" full-colour LCD display (800x480 resolution)

• 1000cd/m² brightness with anti-glare coating for daylight readability

• Flow-moulded carbon fibre composite housing – lightweight and durable

• Flush-mount design with no integrated buttons or shade hood

• 20Hz onboard GPS module for high-accuracy position tracking

• Seven bright programmable shift light LEDs

• Two additional programmable LEDs for alerts or status indications

• IP66 water resistance – safe for motorcycles, marine, or open-cockpit use

• Remote Button Kit (PN 30-3610) supported (sold separately)

Page Customisation & DashControl

• Seven programmable pages: Main, Start-Up, Alarm, and On-Change

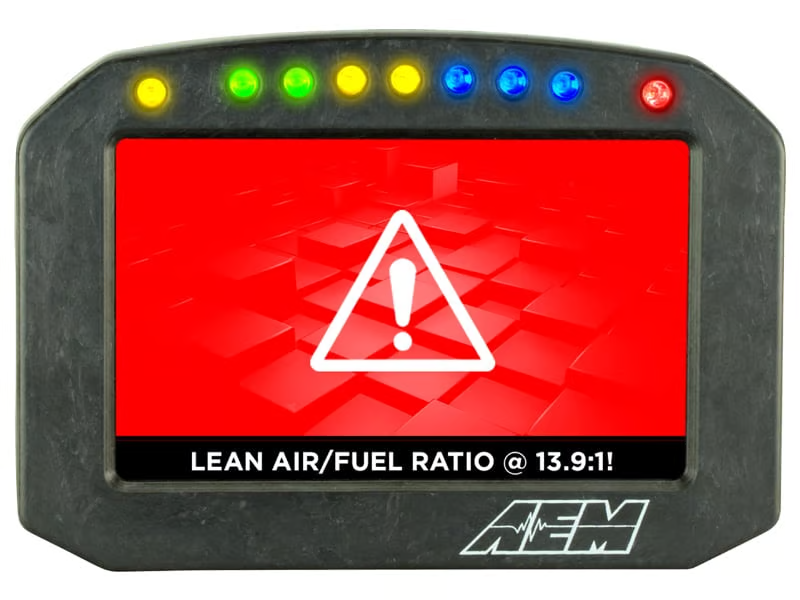

• Customisable alarm screen with multi-language support

• On-Change screen for dynamic map switching, lap time display, and more

• Fully custom layouts via DashDesign Software

• Display real-time text overlays, user-defined graphics, and dynamic icons

• Convert live CAN values into readable text in any language

CAN Bus Compatibility

• Dual CAN bus support: AEMnet + third-party CAN devices

• Plug & Play adapter cables available for Holley, MSD Atomic, Link, Vi-Pec

• Supports 2008+ OEM ECUs via OBDII CAN Adapter (PN 30-2217, sold separately)

• Add support for non-CAN vehicles with AEM’s 22-Channel or 6-Channel CAN Sensor Modules

• Expand temp monitoring with 8-Channel K-Type EGT Module (PN 30-2224)

• Add Vehicle Dynamics Module (PN 30-2206) for G-force, pitch/roll/yaw, and lap telemetry

Additional Features

• Odometer tracking

• ‘Headlight-in’ dimming function

• Over 200 warning icons included – fully programmable

• Two user-triggered switch inputs (e.g. blinkers, high beams)

Perfect For

• Motorsports and time attack builds requiring integrated GPS data

• Dash-mounted installations in tight spaces

• High-end street or track builds requiring professional-grade data and visualisation

• Drivers wanting seamless CAN integration and GPS telemetry in one compact display
